TASCAM CD-200 Professinal CD Player
TASCAM CD-200 เครื่อง เล่น CD รองรับการเล่นไฟล์ CD-DA, WAV และ MP3 TASCAM CD-200 CD Player จากแบรนด์ TASCAM
Professional-use CD player equipped with high-performance, highly-reliable TASCAM drive
As a successor of the TASCAM’s best-selling CD Player, the CD-160, the CD-200 provides high-quality CD playback in a reliable, rack-mountable format for professional use. A newly-designed CD Transport mechanism, the CD-5020A is specially designed for audio playback with smooth loading drawer and low clamping noise for professional
- High-quality CD drive designed for audio by TEAC
- 10-second shockproof memory prevents skipping from vibrations and other causes
- CD drive supports playback of CD-DA,WAV and MP3 files (data CD)
- Supports CD text and ID3 tags, so text information, including artist, album and track names, can be shown
- Four playback modes (continuous, shuffle, program and single)
- Repeat playback function (all or single)
- Folder repeat playback (data CD)
- Switch between display of track elapsed time, track and disc remaining time (audio CD)
- ±12.5% pitch control function with ON/OFF switch (audio CD/data CD)
- Intro check function can be used to play the first 10 seconds of songs in order(audio CD/data CD)

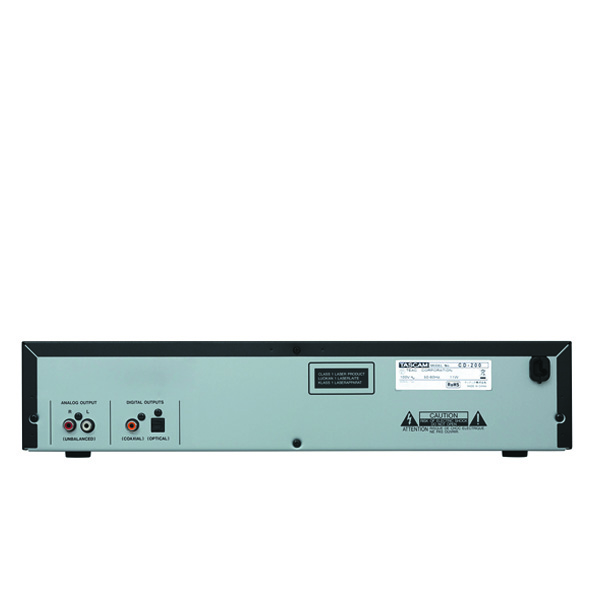

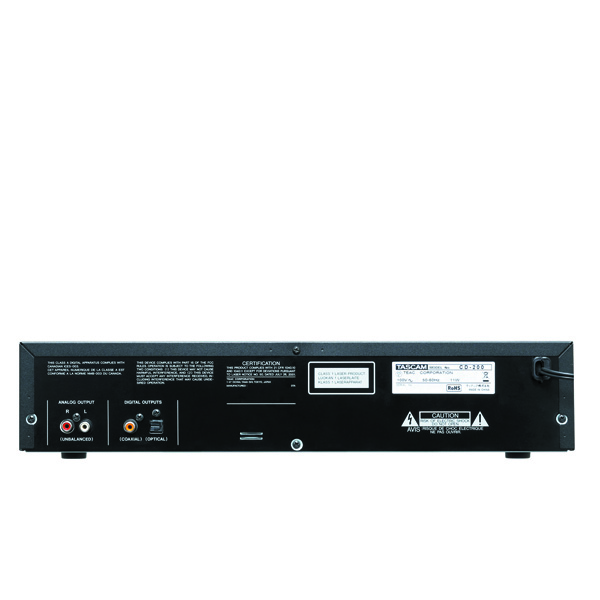

- RCA analog outputs and COAXIAL/OPTICAL digital outputs
- 2U EIA rack-mount size

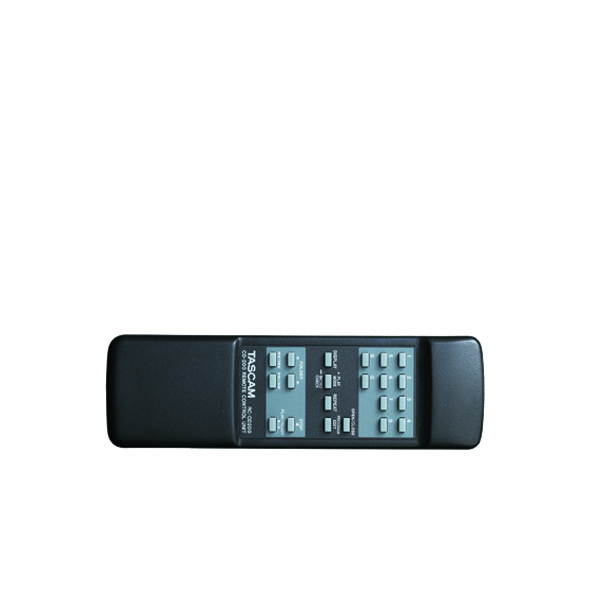

- Wireless remote controller with 10-key included
- Headphone output
- RoHS certified
Playback media |
CD, CD-R, CD-RW (8cm / 12cm) |
Playback format |
|
CD-DA |
Stereo, 44.1kHz, 16-bit |
WAV |
Stereo, 8k / 11.025k / 12k / 16k / 22.05k / 24k / 32k / 44.1k / 48k Hz, 16-bit |
MP3 |
MPEG1 Audio Layer III, 32k / 44.1k / 48k Hz, 32k to 320k bps, VBR |
Pitch control |
±12.5% (with ON/OFF switch) |
Analog audio output |
|
UNBALANCED |
|
Connector |
RCA Pin jack × 1 pair |
Output impedance |
200Ω |
Nominal output level |
–10dBV |
Maximum output level |
+6dBV |
Digital audio output |
|
COAXIAL |
|
Connector |
RCA Pin jack × 1 |
Format |
IEC60958-3 (S/PDIF) |
OPTICAL |
|
Connector |
TOS (JEITA RC-5720C) × 1 |
Format |
IEC60958-3 (S/PDIF) |
Headphone out |
|
Connector |
1/4″ (6.3mm) Stereo phone jack × 1 |
Maximum output level |
20mW + 20mW (THD 0.1%, 32Ω loaded) |
Power |
AC120V, 60Hz |
Power consumption |
12W |
Dimensions (W×H×D) |
18.9″ ×: 3.7″ × 11.7″ / 481 × 94.5 × 298 mm |
Weight |
9.3 lbs. / 4.2 kg |
Operating temperature |
41˚F to 95˚F / 5 ˚C to 35˚C |
Inclination of installation |
5˚ or less |
Standard accessories |
Wireless remote controller (RC-CD200BT), AA battery, Rack mounting screw kit, Warranty card, Owner’s manual |
Audio performance
Frequency response |
20Hz to 20kHz, ±1dB |
Distortion |
0.01% or less (1kHz: 20kHz LPF) |
S/N ratio |
90dB or greater (20kHz LPF + A-weighted) |
Dynamic range |
90dB or greater |
Channel separation |
90dB or greater (1kHz: 1kHz BPF) |
