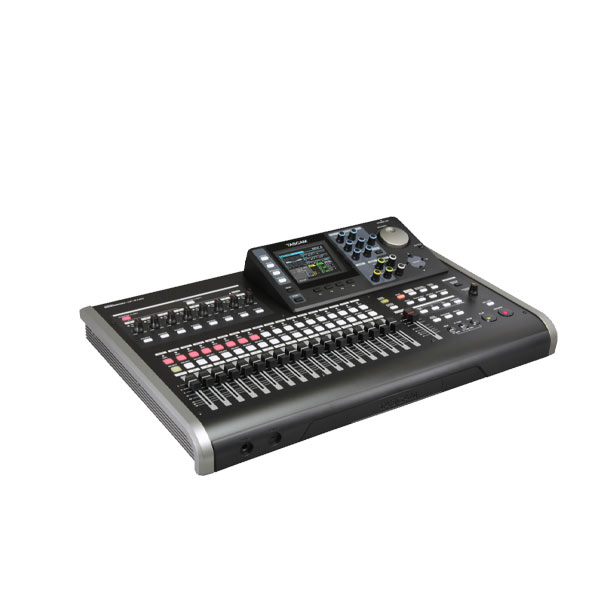

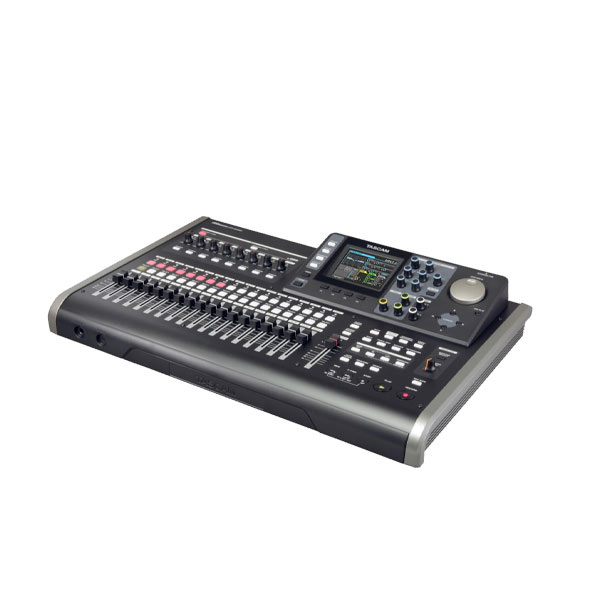

TASCAM DP-24SD 24-Track Digital Portastudio
TASCAM DP-24SD เครื่องเล่นและบันทึกเสียง USB/SD-CARD DP-24SD เครื่องเล่นบันทึกเสียง จากแบรนด์ TASCAM
The DP-24SD Digital Portastudio is a 24-track workstation, allowing eight tracks of simultaneous recording. The built-in mixer includes everything you need for a professional-sounding mix, from EQ and reverb to amp simulation and multi-band mastering effects. The Digital Portastudio series creates finished productions without the need for a computer, instead using a simple-to-use control surface to keep you creative.
คุณสมบัติ
- Simultaneous 24-track playback
- 12 mono tracks + 6 stereo tracks
- Simultaneous 8-track recording
- 44.1k or 48k Hz, 16 or 24-bit recording
- 8 XLR/TRS combo connectors
- Phantom power supplied on all inputs (INPUT A-D,E-H)
- High-impedance input available (INPUT H)
- Stereo RCA output
- 2 effect send outputs (1/4″ TS jack)
- 70mW/ch headphone amplifier
- Remote connector for optional RC-3F foot switch
- INPUT A-H and each track equipped with 3-band EQ
- Automatic punch in/out
- Various edit functions (COPY INSERT, COPY PASTE, MOVE INSERT, MOVE PASTE, OPEN, CUT, SILENCE, CLONE TRACK, CLEAN OUT)
- Undo and Redo function with Undo history
- Dynamics effects for input (Limiter, Compressor, Noise Suppressor, Exciter)
- Guitar effects (Amp Simulator, Reverb, Compressor, Chorus, Flanger, Phaser)
- Mix-down effects (Reverb, Delay, Stereo Chorus)
- Mastering Effects (Multi-band Compressor, Equalizer, Dither, Normalize)
- Track bounce function
- Virtual track (8 virtual track per one track: including use track)
- Locate mark up to 99 for one song
- File transferring via USB2.0
- Chromatic tuner
- Metronome
- 19 Faders
- Peak-hold function on the level meter of the LCD
- Sub-frame editing
- Dedicated AC adapter included (TASCAM GPE248-120200-Z)
- SD card included
- RoHS certified
สเปค
| Recording Media | SD (512MB to 2GB) / SDHC card (4GB to 32GB) |
| File System | SD card: FAT16 / SDHC card: FAT32 |

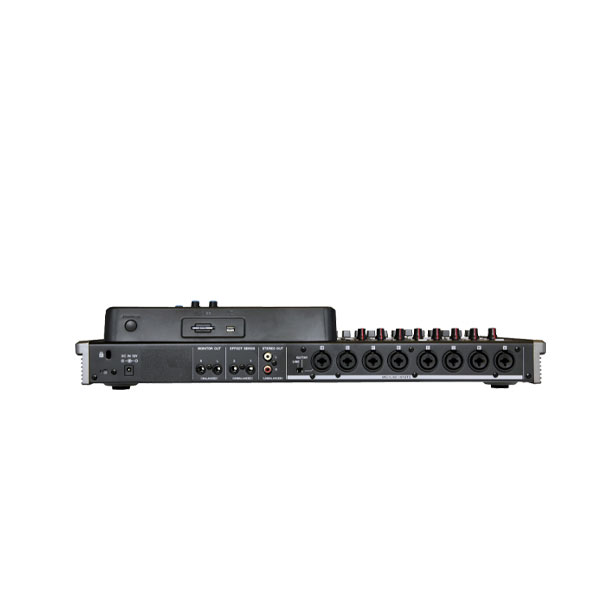

| INPUT A-H | |
| XLR | |
| Connector | XLR-3-31 (1: GND, 2: HOT, 3: COLD), Balanced |
| Input impedance | 2.4kΩ |
| Nominal input level | –14dBu |
| Maximum input level | +2dBu |
| TRS | |
| Connector | 1/4″ (6.3mm) TRS phone jack, Balanced |
| Input impedance | 22kΩ or more / 1MΩ (when INPUT H, GUITAR selected) |
| Nominal input level | +4dBu |
| Maximum input level | +20dBu |
| STEREO OUT | |
| Connector | RCA pin-jack, Unbalanced |
| Output impedance | 200Ω |
| Nominal output level | –10dBV |
| Maximum output level | +6dBV |
| EFFECT SENDS | |
| Connector | 1/4″ (6.3mm) TS phone jack, Unbalanced |
| Output impedance | 200Ω |
| Nominal output level | –10dBV |
| Maximum output level | +6dBV |
| MONITOR OUT | |
| Connector | 1/4″ (6.3mm) TRS phone jack, Balanced |
| Output impedance | 200Ω |
| Nominal output level | –2dBu |
| Maximum output level | +14dBu |
| PHONES | |
| Connector | 1/4″ (6.3mm) stereo phone jack |
| Maximum output level | 70mW + 70mW (THD+N 0.1% or less, 32Ω loaded) |
| USB | |
| Connector | USB Mini-B type 4-pin |
| Format | USB2.0 High-Speed mass-storage class |
| REMOTE | |
| Connector | 2.5mm TRS jack |
| Power | Dedicated AC adapter (TASCAM GPE248-120200-Z, included) |
| Power consumption | 12W (when phantom power supplying) |
| Dimensions (W×H×D) | 20.2″ × 4.1″ × 13.4″ / 514 × 100.4 × 336.9 mm |
| Weight | 13.67 lbs. / 6.2 kg |
| Accessories | AC adapter, 4GB SD card, warranty card, owner’s manual |
| Audio performance | |
| Frequency response | 20Hz to 20kHz (±1dB, INPUT to STEREO OUT/EFFECT SENDS/MONITOR OUT) |
| S/N Ratio | 90dB or greater (INPUT to STEREO OUT/EFFECT SENDS/MONITOR OUT) |
| THD | 0.01% or less (INPUT to STEREO OUT/EFFECT SENDS/MONITOR OUT) |
| Operating system requirements | |
| Windows | |
| OS | Windows XP, Windows Vista, Windows 7, Windows 8 |
| CPU | Pentium 300MHz or more |
| Memory | 128MB or more |
| USB | USB2.0 |
| Macintosh | |
| OS | Mac OS X Snow Leopard (V10.6), OS X Lion (V10.7), OS X Mountain Lion (V10.8), OS X Mavericks (V10.9) |
| CPU | Power PC, iMAC, G3, G4 266MHz or more |
| Memory | 64MB or more |
| USB | USB2.0 |
