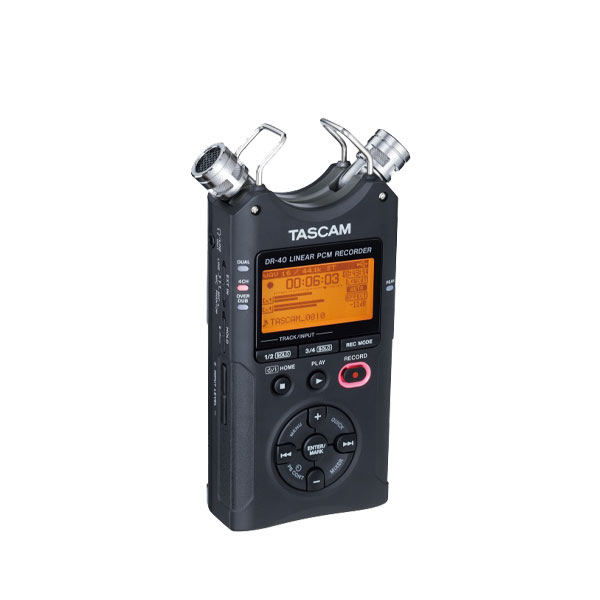

TASCAM DR-40 4-Channel 96kHz/24-bit Digital Recorder with XLR Inputs and Adjustable Mics
TASCAM DR-40 ชุดไมค์บันทึกเสียง ไมโครโพนสำหรับบันทึกเสียง DR-40 ไมค์ห้องอัด จากแบรนด์ TASCAM
TASCAM DR-40 captures up to four tracks from built-in, high-quality condenser microphones, XLR mic or line inputs.
The internal Mics are adjustable from XY to AB position, helping you to tailor your recording to the sound of the room, while a pair of great-sounding TASCAM microphone preamps welcome condenser microphones with phantom power, recording at up to 96kHz/24-bit resolution.
The adjustable Mics, four-track recording and extended battery life of the DR-40 give you the flexibility you need to record tracks anywhere.
-

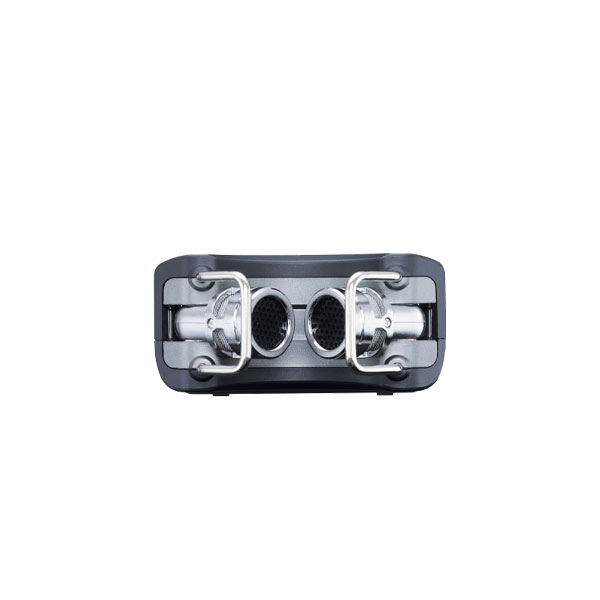

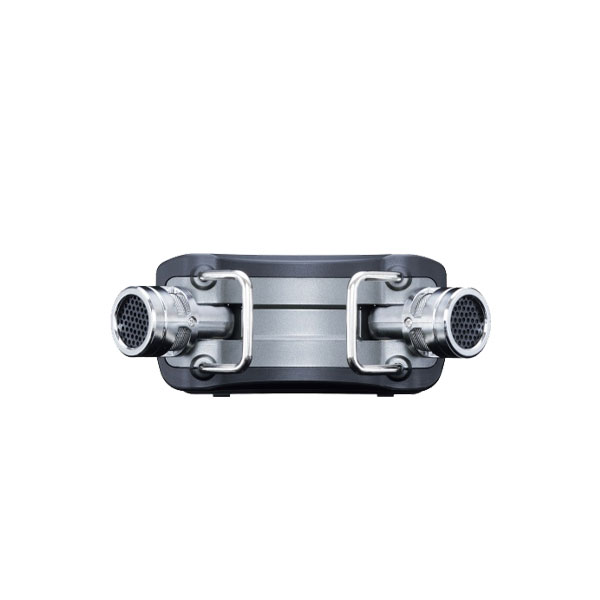

Unidirectional stereo condenser microphones that can record in A-B and X-Y positions
- XLR/TRS inputs compatible with +4dBu line level / +48V
- 4-channel mode that can be used for dual recording and nondestructive overdub recording, etc.
- MS decoding function making it possible to use M-S microphones
- Optional RC-3F foot switch and RC-10 wired remote control can be connected
- Long-time operation of over 20 hours is possible using just the internal batteries
- Reverb effect
- Auto recording function that can detect the sound input signal level and automatically start recording
- Proven high sound pressure design for capturing loud sounds of up to 125dB SPL
- Peak reduction function that detects peaks and automatically sets the optimal level
-
Self timer recording function
- Seamless gain control
- Low-cut filter with three levels (40/80/120Hz)
- Speed change (VSA) function for adjusting the speed from 0.5 to 1.5 times (in 0.1 increments), which is great for practicing music and language study
- Level align feature that prevents uneven volume levels
- Equalizer setting for adjusting playback sound quality
- Divide/delete functions
- Loop/repeat playback function that is convention for practicing music and studying languages
- Resume function that retains the last stop position and starts playback from that position when power is turned back ON
- Jump-back playback function that skips back a preset number of seconds during playback
- QUICK menu button for easy access to various functions
- High-quality 24-bit/96kHz WAV/BWF linear PCM recording and long recordings as MP3 files possible
-
SD/SDHC cards can be used for recording media
- 2GB SD card is included
- Mark function that can set up to 99 points for a single track
- Audio files created on computers can be played (Only in formats compatible with this product)
- Built-in monaural speaker with an output of 0.3W
- Pre-recording buffer that can record up to 2 seconds prior to starting recording
- When a predetermined maximum file size is reached, a new file is created to continue recording
- Track increment creates new files at arbitrary locations during recording
- File name format can be set to use a user-defined word or the date
- The first six characters of the file name for recording can be set freely
- Playlist function
- A chromatic tuner is equipped which is helpful for practicing musical instruments
- Stereo mini headphone line output / Headphone output connector
- 128×64 pixel graphic LCD with backlight
- High-speed file transfer to a computer is possible using USB 2.0
- Powered by 2 AA batteries, USB bus power, or optional AC adapter (PS-P515U)
- Mini USB cable included
- Rubber feet for improving acoustic properties during desktop recordings are included
- Tripod attachment screw-hole built in to the unit
| Recording media | SD card (64MB to 2GB), SDHC card (4GB to 32GB) |
| File system | FAT16/32 |
| File format | WAV, BWF, MP3 |
| WAV / BWF | 44.1k/48k/96k Hz, 16/24-bit |
MP3 |
|
| Sampling frequency | 44.1k/48k Hz |
| Bit-rate for recording | 32k/64k/96k/128k/192k/256k/320k bps |
| Playback bit rate | 32k to 320kbps, VBR, ID3 tag Ver. 2.4 |
| Number of channels | 4-channel (2 Stereo) |
| Playback speed control (VSA) | 0.5 to 1.5 times (in 0.1 increments) * 44.1k/48k Hz only |
| Built-in microphone | Unidirectional, stereo (Possible to switch between A-B/X-Y positions) |

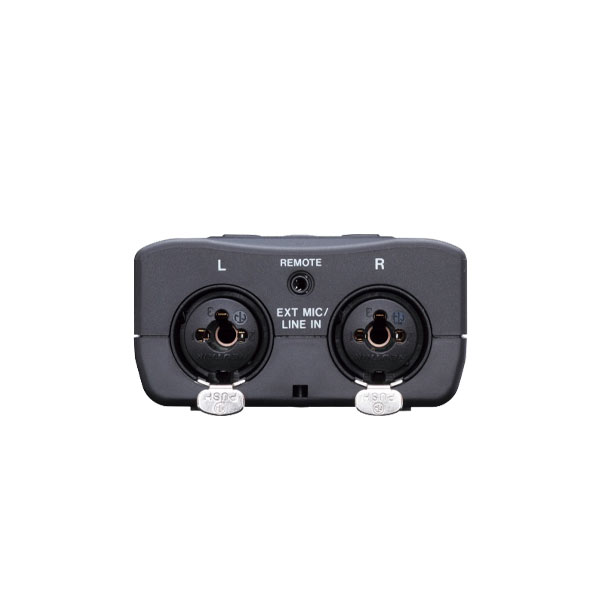

EXT MIC/LINE IN |
|
| Connector | XLR/TRS combo jack (1: GND, 2: HOT, 3: COLD) |
| Input impedance | 2.2kΩ (MIC) / 10kΩ (LINE) |
| Nominal input level | –19dBV (MIC) / +4dBu (LINE) |
| Maximum input level | –3dBV (MIC) / +20dBu (LINE) |
PHONES/LINE OUT |
|
| Connector | 1/8″ (3.5mm) stereo mini jack, Unbalanced |
LINE OUT |
|
| Output impedance | 12Ω |
| Standard output level | –14dBV (10kΩ load) |
| Maximum output level | +2dBV (10kΩ load) |
PHONES |
|
| Maximum output level | 20mW + 20mW (32Ω load) |
| Built-in speakers | 0.3W, Mono |
| Low-cut filter | 40/80/120 Hz |

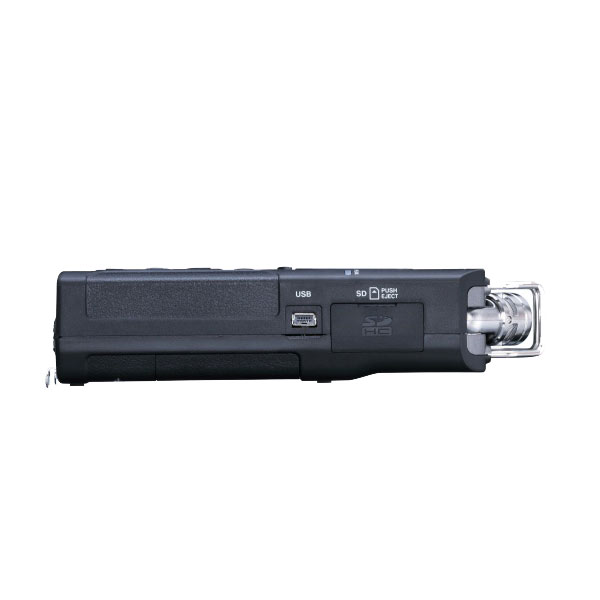

USB |
|
| Connector | Mini-B type |
| Format | USB2.0 HIGH SPEED |
| REMOTE | 2.5mm TRS jack |
| Effector | 6 presets (HALL1/2, ROOM, STUDIO, PLATE1/2) |
| Chromatic tuner | C1 – B6, A4 = 435Hz – 445Hz (in 1Hz increments) |
| Tripod attachment screw-hole | 1/4 inch, Tripod attachment screw-hole |
| Power | 3 AA batteries, USB bus power, AC100 – 240V (Optional AC adapter) |
| Power consumption | 2.5W (Max) |
| Battery operation time (Playback) |
*All times are approximate. |
With alkaline batteries(Panasonic EVOLTA) |
Using headphones16 hours (2ch WAV, 96kHz, 24-bit) 21.5 hours (2ch WAV, 44.1kHz, 16-bit) 17.5 hours (2ch MP3,44.1kHz,128kbps) 15.5 hours (4ch WAV, 96kHz, 24-bit) 17.5 hours (4ch WAV, 44.1kHz, 16-bit) 16.5 hours (4ch MP3, 44.1kHz, 128kbps) |
With Ni-MH batteries(Panasonic eneloop) |
Using headphones14 hours (2ch WAV, 96kHz, 24-bit) 17.5 hours (2ch WAV, 44.1kHz, 16-bit) 14.5 hours (2ch MP3, 44.1kHz, 128kbps) 13 hours (4ch WAV, 96kHz, 24-bit) 15 hours (4ch WAV, 44.1kHz, 16-bit) 15 hours (4ch MP3, 44.1kHz, 128kbps) |
| Battery operation time (Recording) |
*All times are approximate. |
With alkaline batteries(Panasonic EVOLTA) |
Using built-in microphone16 hours (2ch WAV, 96kHz, 24-bit) 20.5 hours (2ch WAV, 44.1kHz, 16-bit) 18 hours (2ch MP3, 44.1kHz, 128kbps) Using built-in microphone + line8.5 hours (4ch WAV, 96kHz, 24-bit) |
| With Ni-MH batteries (Panasonic eneloop) |
Using built-in microphone12 hours (2ch WAV, 96kHz, 24-bit) 17 hours (2ch WAV, 44.1kHz, 16-bit) Using built-in microphone + line8 hours (4ch WAV, 96kHz, 24-bit) |
| Dimensions (W×H×D) | 2.8″ × 6.1″ × 1,4″ / 70 × 155 × 35 mm (when the microphones are in X-Y position)
3.5″ × 6.1″ × 1,4″ / 90 × 155 × 35 mm (when the microphones are in A-B position) |
| Weight | 10.05 oz. / 285 g (including batteries) 7.51 oz. / 213 g (excluding batteries) |
| Accessories | microSD card, USB connection cable, 3 AA batteries for confirming operation, Owner’s Manual, Warranty card |
Audio Performance |
|
| Frequency response | 20Hz to 20kHz +1dB/–3dB (Fs 44.1kHz, EXT IN to LINE OUT, JEITA) 20Hz to 22kHz +1dB/–3dB (Fs 48kHz, EXT IN to LINE OUT, JEITA) 20Hz to 40kHz +1dB/–3dB (Fs 96kHz, EXT IN to LINE OUT, JEITA) |
| Distortion | 0.05% or less (Fs 44.1k/48k/96k Hz, EXT IN to LINE OUT, JEITA) |
| S/N ratio | 92dB or more (Fs 44.1k/48k/96k Hz, EXT IN to LINE OUT, JEITA) |
Computer Requirements |
|
Windows |
|
| CPU | Pentium 300MHz or more |
| Memory | 128MB or more |
| USB | USB2.0 recommended |
Macintosh |
|
| CPU | Power PC, iMac, G3, G4, G5 266MHz or more |
| Memory | 64MB or more |
| USB | USB2.0 recommended |
