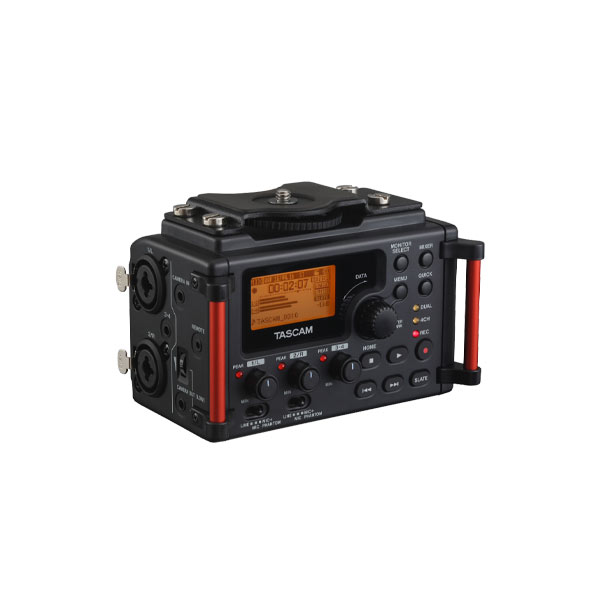

TASCAM DR-60D MK2 4-track Recorder/Mixer for Production Audio
TASCAM DR-60D MK2 เครื่องบันทึกเสียงแบบพกพาสำหรับกล้อง DSLR DR-60D MK2 เครื่องบันทึกเสียง จากแบรนด์ TASCAM
Portable Recorder Designed for DSLR Filmmakers
TASCAM’s DR-60DmkII, an update of the award winning DR-60D, is the audio recording solution for on-set filmmakers and videographers.
The streamlined design fits perfectly under a DSLR camera rig, without relying on bulky recorders or the limited audio quality of the camera’s microphone in.
คุณสมบัติ
-
Record to SD/SDHC card (Up to 32GB)
- Simultaneously record up to 4 tracks
- Record Modes: MONO, STEREO, DUAL MONO, DUAL STEREO, 4-CHANNEL
- Recording format: 44.1/48/96kHz, 16 or 24-bit, WAV/BWF
- TASCAM HDDA microphone preamps wth 120dB EIN and 64dB of gain
- Recording levels can be adjusted independently for the 1/L, 2/R and 3-4 inputs

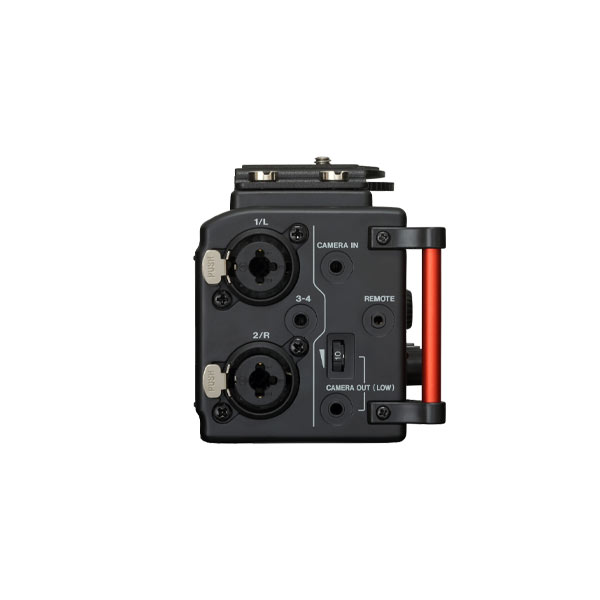

- Two combo XLR/TRS inputs support +4dBu mic/line level input
- Phantom power to channels 1/2 (24V or 48VDC on XLRF)
- Plug-in power and high-output mic input supported on inputs 3-4
-
CAMERA OUT connector for output from the DR-60DmkII mixer (adjustable gain)
- CAMERA IN connector for sound monitoring from the camera

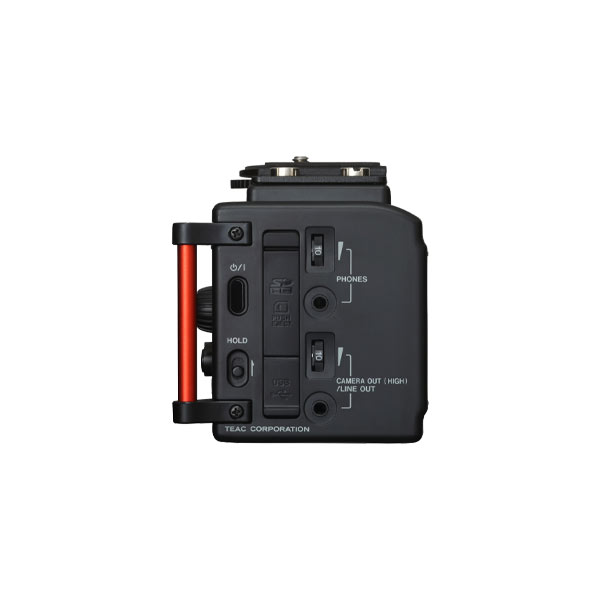

- Independent adjustable LINE OUT and HEADPHONE jacks for high-quality sound output
- 50mW/ch headphone amplifier

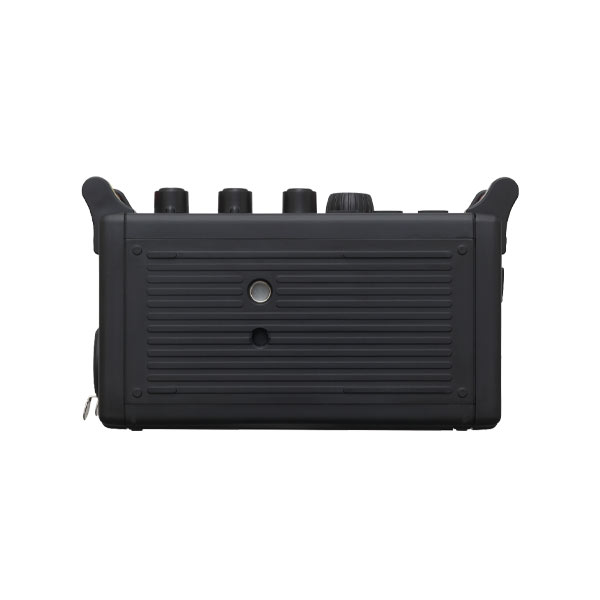

- Tripod mounting socket (bottom) and mounting screw attachment (top)
- Handles protect the screen and can be used to attach a shoulder strap
- Soft-Touch Rubber Keys for silent operation
- HOLD switch to prevent accidental operation
- QUICK button feature for easy access to various functions
- 128×64 pixel LCD with backlight
- USB 2.0 connection for high-speed transferring of files
- Mini USB cable included
- Operates on 4-AA batteries, an AC adapter (sold separately) or USB bus power
- Can extend battery life with BP-6AA battery pack (sold separately)
- Dedicated remote control jack for the wired RC-10 remote control or RC-3F footswitch (both sold separately)
- Internal mixer: PAN and LEVEL controls
- Low cut filter (40/80/120Hz)
- Limiter (1/L and 2/R can be selected for linked operation)
- Delay function for microphone distance adjustment (up to 150ms)
-
M-S decode functionSlate tone generator (AUTO/MANUAL)
- Selectable duration of slate tone from four positions (0.5/1/2/3 sec, when auto-generated)
- Selectable slate tone generation. (3 positions: OFF/HEAD/HEAD+TAIL, when auto-generated)
- File naming format can be set to use a user-defined word or date
- Dual-recording function allows two files to be recorded simultaneously at different levels
- Auto-record function can automatically start and stop recording at set leve
- lPre-recording function allows the unit to record a 2 second sound buffer before recording is activated
- Self-timer function for solo recording
- New file starts recording automatically without interruption when maximum file size is reached
- Track incrementing function allows a recording to be split by creating a new file when desired
- Jump back and play function
- Equalizer function for playback, and level alignment function to enhance the perceived overall sound pressure
- Resume function to memorize the playback position before the unit is turned off
- MARK function up to 99 points per audio track
- DIVIDE function
สเปค
| Recording media | SD card (64MB to 2GB), SDHC card (4GB to 32GB) |
Recording format |
|
| WAV | 44.1k/48k/96k Hz, 16/24-bit |
| BWF | 44.1k/48k/96k Hz, 16/24-bit |
| Number of channels | 4-channel (stereo x2) |
Analog audio input |
|
1/L, 2/R connectors |
|
| Connector | XLR-3-31 (1:GND, 2:HOT, 3:COLD) / 1/4″ (6.3mm) TRS standard jack |
Set to “MIC / MIC+PHANTOM” |
|
| Input impedance | 2kΩ |
| Phantom power | 48V ±4V (10mA/CH) / 24V ±4V (10mA/CH) |
| Maximum input level | 0dBu |
| Minimum input level | –72dBu |
| MIC input gain | TRIM MAX |
| LOW | +11dB |
| MID | +36dB |
| HIGH | +52dB |
| HIGH+PLUS | +64dB |
Set to “LINE” |
|
| Input impedance | 10kΩ or more |
| Standard input level | +4dBu |
| Maximum input level | +24dBu |
3-4 connector |
|
| Connector | 1/8″ (3.5mm) stereo mini jack (this connector can be supplied plug-in power) |
| Input impedance | 10kΩ |
| Maximum input level | +10dBV |
| Minimum input level | –50dBV |
| MIC input gain | TRIM MAX |
| LOW | +3dB |
| HIGH | +26dB |
| HI + PLUS | +38dB |
CAMERA IN connector |
|
| Connector | 1/8″ (3.5mm) stereo mini jack |
| Input impedance | 10kΩ |
| Standard input level | –10dBV |
| Maximum input level | +6dBV |
| Analog audio output | |
CAMERA OUT connector |
|
| Connector | 1/8″ (3.5mm) stereo mini jack |
| Output impedance | 200Ω |
| Standard output level | –50dBV |
| Maximum output level | –30dBV |
LINE OUT connector |
|
| Connector | 1/8″ (3.5mm) stereo mini jack |
| Output impedance | 200Ω |
| Standard output level | –10dBV |
| Maximum output level | +10dBV |
PHONES connector |
|
| Connector | 1/8″ (3.5mm) stereo mini jack |
| Maximum output level | 50mW + 50mW |
USB |
|
| Connector | Mini-B type |
| Format | USB2.0 HIGH SPEED mass storage class |
REMOTE |
|
| Connector | 2.5mm TRS jack |
| Power | Four AA batteries (Alkaline or NI-MH), USB bus power, Dedicated AC adapter (TASCAM PS-P515U, sold separately), Dedicated external battery pack (TASCAM BP-6AA, sold separately) |
| Power consumption | 5.4W |
| Continuous operation time | 2ch WAV, 44.1kHz, 16-bit Rec, *All times are approximate. |
DR-60D alone |
|
| Alkaline batteries (EVOLTA) | 2-½ hours (Phantom ON) 4-½ hours (Phantom OFF) |
| NI-MH batteries (eneloop) | 3-¼ hours (Phantom ON) 5 hours (Phantom OFF) |
| NI-MH batteries (eneloop pro) | 3-¾ hours (Phantom ON) 6 hours (Phantom OFF) |
DR-60D with BP-6AA |
|
| Alkaline batteries (EVOLTA) | 5-½ hours (Phantom ON) 10-½ hours (Phantom OFF) |
| NI-MH batteries (eneloop) | 7-½ hours (Phantom ON) 12 hours (Phantom OFF) |
| NI-MH batteries (eneloop pro) | 9-½ hours (Phantom ON) 14-½ hours (Phantom OFF) |
| Dimensions (W×H×D) | 5.2″ × 3.7″ × 3.1″ / 133 × 93.2 × 78 mm (with the top adapter attached) |
| Weight | 1.12 lbs. / 510 g (excluding batteries) |
| Operating temperature | 32˚F to 104˚F / 0˚C to 40˚C |
| Standard accessories | USB cable, warranty card, Owner’s manual |
Computer compatibility |
|
| Windows | |
| OS | Windows XP, Windows Vista, Windows 7, Windows 8 |
| CPU | Pentium 300MHz or more |
| RAM | 128MB or more |
| USB | recommended: USB2.0 |
Macintosh |
|
| OS | Mac OS X Jaguar (V10.2), Mac OS X Panther (V10.3), Mac OS X Tiger (V10.4), Mac OS X Leopard (V10.5), Mac OS X Snow Leopard(V10.6.8), OS X Lion(V10.7), OS X Mountain Lion(V10.8) |
| CPU | Power PC, iMac, G3, G4 266MHz or more |
| 64MB or more | |
| USB | recommended: USB2.0 |
Audio performance |
|
| Frequency response | 20Hz to 20kHz +0.5/–2dB (LINE IN or MIC IN to LINE OUT, Fs 44.1k/48k Hz, JEITA) 20Hz to 40kHz +0.5/–3dB(LINE IN or MIC IN to LINE OUT, Fs 96kHz, JEITA) |
| Distortion | 0.02% or less (LINE IN or MIC IN to LINE OUT Fs 44.1k/48k/96k Hz, JEITA) |
| S/N ratio | 92dB or more (LINE IN or MIC IN to LINE OUT Fs 44.1k/48k/96k Hz, JEITA) |
| Equivalent input noise | –120dBu or more |
