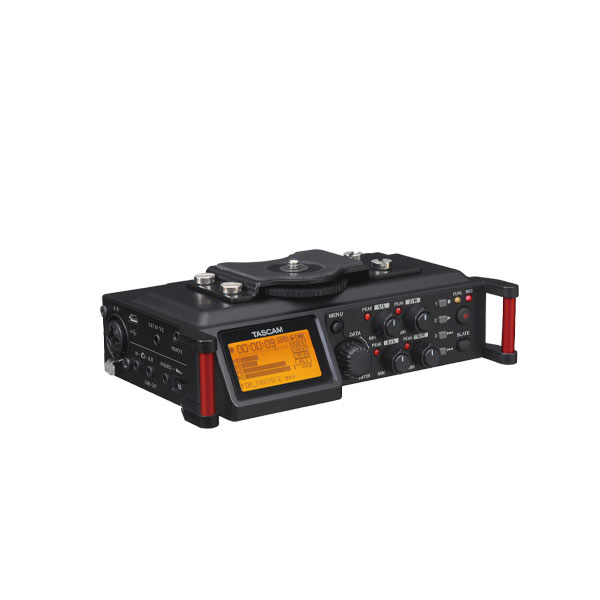

TASCAM DR-70D Four-track PCM Recorder for DSLR Video Production
TASCAM DR-70D เครื่องบันทึกเสียงแบบพกพาสำหรับกล้อง DSLR DR-70D เครื่องบันทึกเสียง จากแบรนด์ TASCAM
Four XLR Inputs and a Stereo Mic for versatile audio production

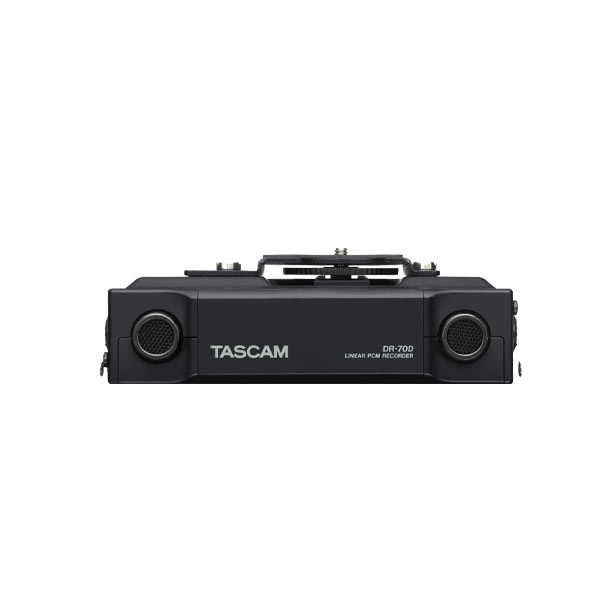

The DR-70D from TASCAM is the ultimate audio recording solution for filmmakers. Four balanced XLR mic inputs meet the requirements of production sound, from professional users to indie DSLR shooters. The compact format can be mounted either above or below a camera, and a pair of built-in microphones can capture sound on-set. The interface is designed for quick adjustment, with additional features to keep recording levels under control.
คุณสมบัติ
-
Supports SD/SDHC/SDXC cards
- Maximum number of tracks recorded simultaneously: (4)
- Recording modes: MONO, STEREO, 2MIX, DUAL MONO, DUAL ST, DUAL 2MIX
- Recording formats: 16/24-bit, 44.1k/48k/96k Hz (WAV/BWF)
- TASCAM HDDA microphone preamps provide legendary audio performance
- Input levels can be adjusted independently

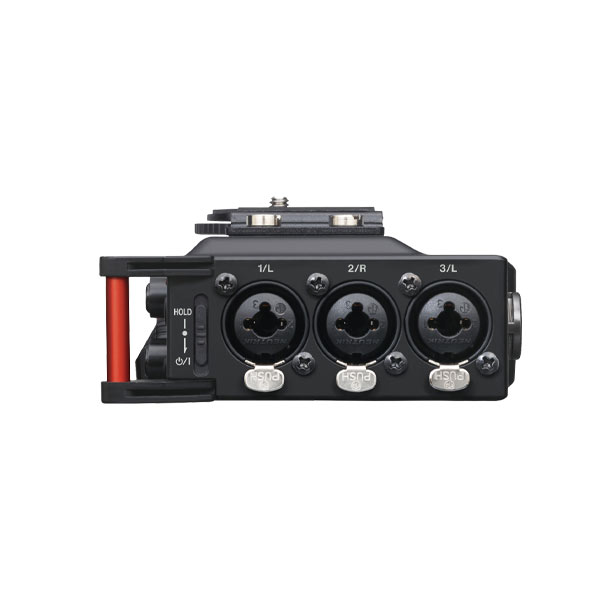

- XLR/TRS inputs support +4dBu line level and phantom power (24V/48V)
- Supports mics requiring plug-in power, and mics with high output (1-2)

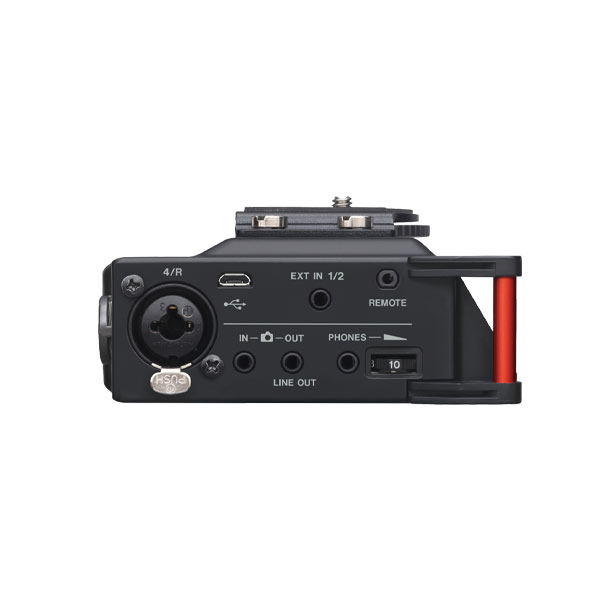

- CAMERA OUT jack enables audio mixed on the DR-70D to be output to the camera
- CAMERA IN jack allows the DSLR camera audio to be monitored through the DR-70D
- High-quality audio output through the line output jack that is independent of the headphones jack
- Headphone jack with 20mW+20mW maximum output
- Tripod mounting threads (bottom), camera screw attachment and a shoe mount that can be attached and removed with a coin (top)
- Handles on the front left and right sides protect the screen and can be used to attach a shoulder strap
- Transport and SLATE buttons are made of rubber to prevent handling noise during use
- HOLD switch prevents accidental operation
- 128×64-pixel graphic LCD with backlight
- High-speed transfer of files to a computer using USB 2.0
-
Micro-B USB cable included
- Operates on (4) AA batteries, with an optional AC adapter (TASCAM PS-P515U) or USB cable provided with the unit (USB bus power).
- BP-6AA external battery pack (sold separately) makes operation for even longer times possible
- RC-3F footswitch or RC-10 wired remote control (both sold separately) for remote control
- Built-in mixer can be used to adjust Pan and Level to mix output of (4) channels
- Low-cut filter with five settings (40/80/120/180/220 Hz) to be used to reduce unwanted air-conditioning noise and other low-frequency sounds
- Limiter function can automatically adjust excessive input levels (stereo-linking possible for 1/L and 2/R)
- Delay function to adjust for distances between mics (+/−150 ms)
-
Mid-side decoding function enables the use of mid-side stereo mics
- Slate tone functions (automatic/manual)
- Selectable slate tone insertion points (recording start or recording start and finish when using the automatic slate function)
- Playback can be skipped to the slate tone insert position using the DATA dial
- File name format can be set to use a user-defined word or date
- Dual recording function allows two files to be recorded simultaneously at different levels (second file at between −1 dB and −12 dB)
- Can start a new file automatically when a maximum file size is reached to continue recording
- Track incrementing function allows a file to be split by creating a new file during recording when desired
- Resume function remembers the playback position when the unit is turned off
สเปค
| Recording media | SDHC card (4GB to 32GB), SDXC card(48GB to 128GB) High speed cards required. See the Tested Media List on the DR-70D DOWNLOADS page. |
Recording format |
|
| WAV | 44.1k/48k/96k Hz, 16/24-bit |
| BWF | 44.1k/48k/96k Hz, 16/24-bit |
| Number of channels | 4-channel (stereo × 2, mono × 4) |
Analog audio input |
|
1/L, 2/R, 3/L, 4/R connectors |
|
| Connector | XLR-3-31 (1:GND, 2:HOT, 3:COLD) / 1/4″ (6.3mm)TRS standard jack |
Set to “MIC / MIC+PHANTOM” |
|
| Input impedance | 2k ohms |
| Phantom power | 48V ±4V (10mA/CH), 24V ±4V (10mA/CH) |
| Maximum input level | 0dBu |
| Minimum input level | –72dBu |
| MIC input gain | TRIM MAX |
| LOW | +21dB |
| MID | +36dB |
| HIGH | +51dB |
| HI + PLUS | +63dB |
Set to “LINE” |
|
| Input impedance | 10k ohms or more |
| Standard input level | +4dBu |
| Maximum input level | +20dBu |
1/2 connector |
|
| Connector | 1/8″ (3.5mm) stereo mini jack (this connector can be supplied plug-in power) |
| Input impedance | 10k ohms |
| Maximum input level | +10dBV |
| Minimum input level | –50dBV |
| MIC input gain | TRIM MAX |
| LOW | +3dB |
| MID | +11dB |
| HIGH | +26dB |
| HI + PLUS | +38dB |
CAMERA IN connector |
|
| Connector | 1/8″ (3.5mm) stereo mini jack |
| Input impedance | 10k ohms |
| Standard input level | –10dBV |
| Maximum input level | +6dBV |
Analog audio output |
|
LINE OUT connector |
|
| Connector | (1/8″ (3.5mm) stereo mini jack |
| Output impedance | 200 ohms |
| Standard output level | –10dBV |
| Maximum output level | +6dBV |
CAMERA OUT connector |
|
| Connector | 1/8″ (3.5mm) stereo mini jack |
| Output impedance | 200 ohms |
| Standard output level | –40dBV |
| Maximum output level | –24dBV |
PHONES connector |
|
| Connector | 1/8″ (3.5mm) stereo mini jack |
| Maximum output level | 20mW + 20mW |
USB |
|
| Connector | Micro-B type |
| Format | USB2.0 HIGH SPEED mass storage class |
REMOTE |
|
| Connector | 2.5mm TRS jack |
| Power | 4 AA batteries(Alkaline or NI-MH),
USB bus power, Dedicated AC adapter (TASCAM PS-P515U, sold separately), Dedicated external battery pack (TASCAM BP-6AA, sold separately) |
| Power consumption | 5.0W |
| Continuous operation time | 2ch WAV, 44.1kHz, 16-bit Rec, Phantom power not used. *All times are approximate. |
DR-70D alone |
|
| Alkaline batteries (EVOLTA) | 6 hours (XLR/TRS input is selected. Phantom OFF) 3-½ hours (XLR/TRS input is selected. Phantom ON) 11 hours (Built-in Mic (MIC 3/4) is selected.) |
| NI-MH batteries (eneloop) | 6-¼ hours (XLR/TRS input is selected. Phantom OFF) 3-¼ hours (XLR/TRS input is selected. Phantom ON) 10-½ hours (Built-in Mic (MIC 3/4) is selected.) |
| NI-MH batteries (eneloop pro) |
7-¾ hours (XLR/TRS input is selected. Phantom OFF) 4-¾ hours (XLR/TRS input is selected. Phantom ON) 14-¼ hours (Built-in Mic (MIC 3/4) is selected.) |
| DR-70D with BP-6AA | *BP-6AA is using the alkaline batteries (EVOLTA). |
| Alkaline batteries (EVOLTA) | 13 hours (XLR/TRS input is selected. Phantom OFF) 7-½ hours (XLR/TRS input is selected. Phantom ON) 25-½ hours (Built-in Mic (MIC 3/4) is selected.) |
| NI-MH batteries (eneloop) | 12-¾ hours (XLR/TRS input is selected. Phantom OFF) 7-¾ hours (XLR/TRS input is selected. Phantom ON) 24-¾ hours (Built-in Mic (MIC 3/4) is selected.) |
| NI-MH batteries (eneloop pro) |
14-½ hours (XLR/TRS input is selected. Phantom OFF) 8-¾ hours (XLR/TRS input is selected. Phantom ON) 27 hours (Built-in Mic (MIC 3/4) is selected.) |
| Dimensions (W×D×D) | 6.65″ × 2.2″ × 4.2″ / 169 × 55.2 × 106.5 mm (with the top adapter attached) |
| Weight | 1.37 lbs. / 625 g (including batteries) 1.16 lbs. / 530 g (excluding batteries;) |
| Operating temperature | 32˚F to 104˚F / 0˚C to 40˚C |
| Standard accessories | USB cable, Camera attachment bracket screw hole covers × 6 Owner’s Manual (including warranty) |
Audio performance |
|
| Frequency response | 20Hz to 20kHz +0.5/–2dB (LINE IN or MIC IN to LINE OUT, Fs 44.1k/48k Hz, JEITA) 20Hz to 40kHz +0.5/–3dB (LINE IN or MIC IN to LINE OUT, Fs 96kHz, JEITA) |
| Distortion | 0.02% or less (LINE IN or MIC IN to LINE OUT Fs 44.1k/48k/96k Hz, JEITA) |
| S/N ratio | 92dB or more (LINE IN or MIC IN to LINE OUT Fs 44.1k/48k/96k Hz, JEITA) |
| Equivalent input noise | –120dBu or less |
Computer compatibility |
|
| Windows | |
| OS | Windows XP, Windows Vista, Windows 7, Windows 8, Windows 8.1 |
| CPU | Pentium 300MHz or more |
| RAM | 128MB or more |
| USB | recommended: USB2.0 |
Macintosh |
|
| OS | Mac OS X Jaguar (V10.2), Mac OS X Panther (V10.3), Mac OS X Tiger (V10.4), Mac OS X Leopard (V10.5), Mac OS X Snow Leopard(V10.6.8), OS X Lion(V10.7), OS X Mountain Lion(V10.8), OS X Mavericks(10.9) |
| CPU | Power PC, iMac, G3, G4 266MHz or more |
| RAM | 64MB or more |
| USB | recommended: USB2.0 |
