ตัวรับสัญญาณไร้สาย อินฟราเรด แบบติดเพดาน TOA IR-510R (ไม่มีเครื่องส่ง) จากแบรนด์ TOA

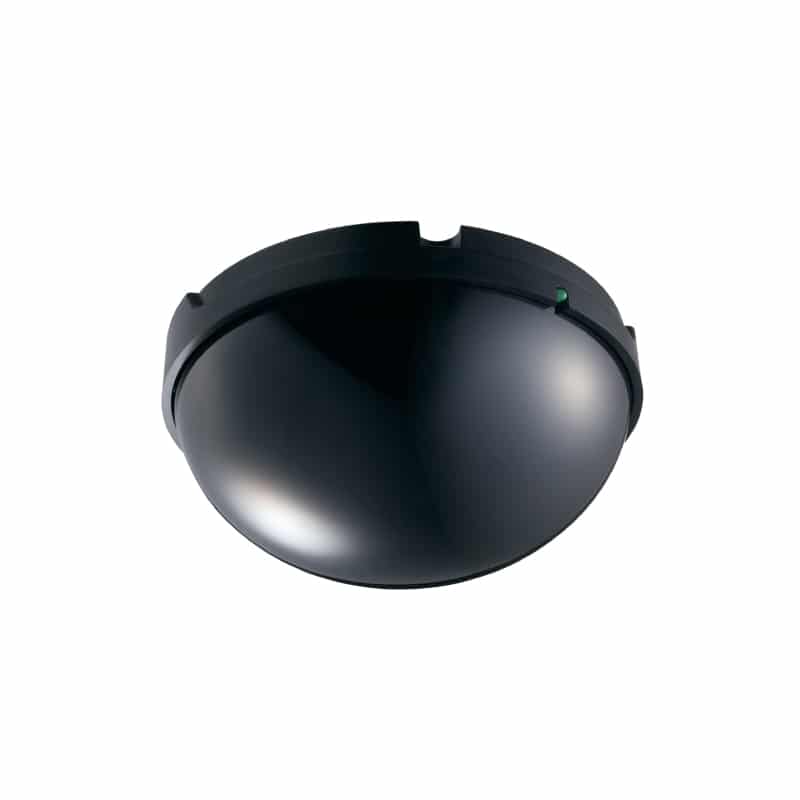

TOA IR-510R
Infrared Wireless Receiver (ไม่มีเครื่องส่ง)
The IR-510R Infrared Wireless Receiver is designed for exclusive use with the IR-702T Infrared Wireless Tuner. It can be mounted to a ceiling.
สเปค
| Power Source | 24 V DC (supplied from the IR-702T) |
|---|---|
| Current Consumption | Max. 60 mA |
Infrared Detector
| Wavelength | 870 nm |
|---|---|
| Carrier Frequency | Channel A: 3.100 MHz Channel B: 3.350 MHz |
| Communication Area | Approx. 7 m (22.97 ft) in radius from the point underneath the unit (Ceiling height: 2.5 – 3.0 m (8.2 – 9.84 ft), in a space without any obstacle) |
| Connection Terminal | 75 Ω, BNC jack |
|---|---|
| Operating Temperature | 0 ℃ to +40 ℃ (32 ゜F to 104 ゜F) |
| Operating Humidity | 30 % to 85 %RH (no condensation) |
| Finish | Filter section: Polycarbonate, optical cut filter Base: ABS resin, black |
| Dimensions | φ120 × 71.3 (H) mm (φ4.72″ × 2.81″) |
| Weight | 205 g (0.45 lb) (unit only) |
| Accessory | Mounting bracket …1 |
