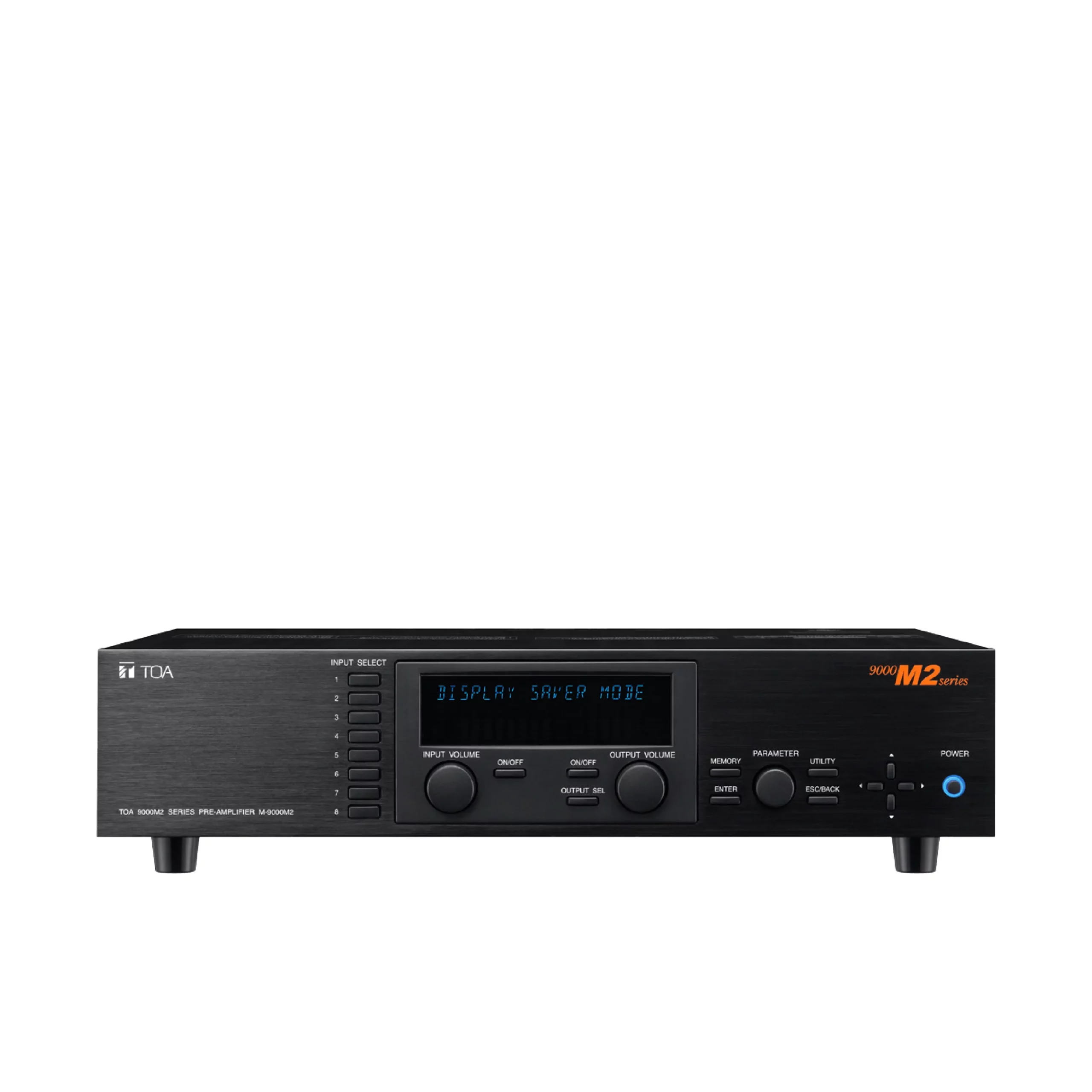

Power Source
|
220 – 240 V AC, 50/60 Hz |
Power Consumption
|
40 W |

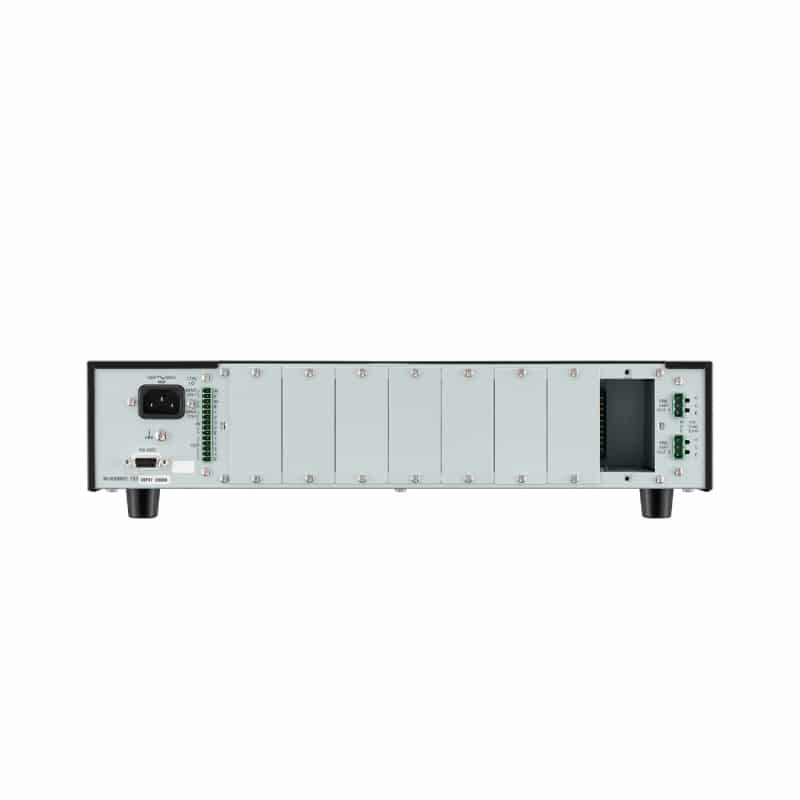

Audio Input
|
Max. 8 channels, modular construction (modules optional) |
Audio Output
|
Preamplifier output 1, 2: 0 dB(*1), 600 Ω, balanced,
removable terminal block (3 pins) |
Module Slot
|
Analog input (slot 1 – 8): -10 dB(*1), 10 kΩ, unbalanced
Digital input (slot 1 – 4): 24 bit/48 kHz
MIX output (slot 1 – 8): -14 dB(*1), 330 Ω (CH 1 prefader output), unbalanced
Digital output (slot 5 – 7): 24 bit/48 kHz
Power supply (slot 1 – 8): +24 V, -24 V, +6 V DC |
Digital Audio Signal Reference Level
|
-20 dBFS |
Frequency Response
|
20 Hz – 20 kHz, +1, -3 dB |
Total Harmonic Distortion
|
0.008 % (at 22 kHz LPF, 1 kHz, +10 dB(*1) output) |
S/N Ratio
|
At Input short, 20 Hz – 20 kHz, set to ALL FLAT or OFF setting
Output volume min.: 90 dB
Output volume max.: 61 dB (Input 1 volume: 0 dB, Other Inputs: OFF) |
Cross Talk
|
64 dB or more (at 20 kHz) |
Tone Control
|
Bass: ±12 dB (at 100 Hz)
Treble: ±12 dB (at 10 kHz) |
Parametric Equalizer
|
10 bands, Frequency: 20 Hz – 20 kHz, 31 points, Variable range: ±12 dB, Q: 0.3 – 5 |
Speaker Equalizer
|
10 (setup software has 30 TOA speaker presets) |
High-pass Filter
|
-12 dB/oct, Variable frequency range: 20 Hz – 20 kHz, 31 points |
Low-pass Filter
|
-12 dB/oct, Variable frequency range: 20 Hz – 20 kHz, 31 points |
Compressor
|
Depth: 1 – 5 |
Delay
|
0 – 40 ms (1 ms steps), maximum 40 ms (CH 1 + CH 2), mixer mode only |
Scene/Event Memory
|
32 |
Auxiliary Function
|
Key lock function |
Control Input/Output
|
RS-232C(*2), D-sub connector (9 P, female)
Control input: 4 inputs, no-voltage make contact input, open voltage: 3.3 V DC,
short-circuit current: 1 mA or less, removable terminal block (14 pins)
Control output: 4 outputs, open collector output, withstand voltage: 27 V DC,
control current: 50 mA, removable terminal block (14 pins)
Remote volume: 2 channels, connect a 10 kΩ/linear taper variable resistor or
input the DC voltage of 0 to +10 V, removable terminal block (14 pins) |
Operating Temperature
|
-10 ℃ to +40 ℃ (14 ゜F to 104 ゜F) |
Operating Humidity
|
35 % to 80 %RH (no condensation) |
Finish
|
Panel: Aluminum, hair-line, black
Case: Surface-treated steel plate, black, paint |
Dimensions
|
420 (W) × 107.6 (H) × 353 (D) mm (16.54″ × 4.24″ × 13.9″) |
Weight
|
6 kg (13.23 lb) |
Accessory
|
Power cord (2 m (6.56 ft)) …1, Rack mounting bracket …2, Bracket mounting screw …4,
Blank panel …7, Blank panel mounting screw …14,
Removable terminal plug (3 pins) …2, Removable terminal plug (14 pins) …1, CD …1 |
