ตู้ลำโพง TURBOSOUND M12 ขนาด 12 นิ้ว 2 ทาง 1,100 วัตต์ มีแอมป์ในตัว คลาส D ตอบสนองความถี่ 50 Hz–18 kHz ±3 dB TURBOSOUND M12 ลำโพง 12 นิ้ว จากแบรนด์ TURBOSOUND

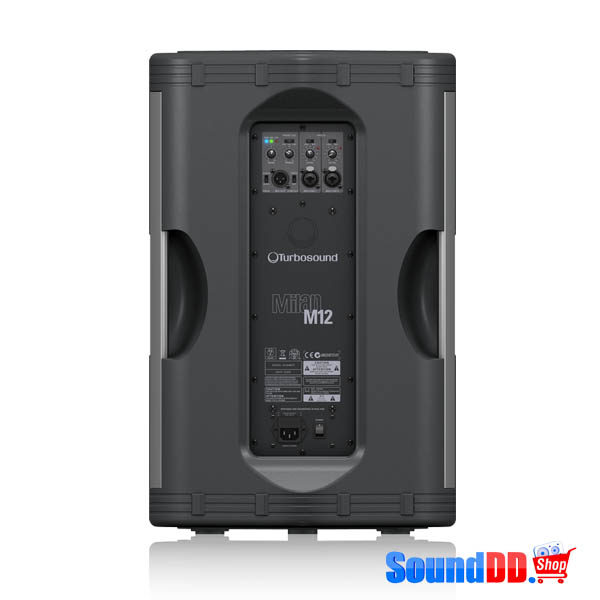

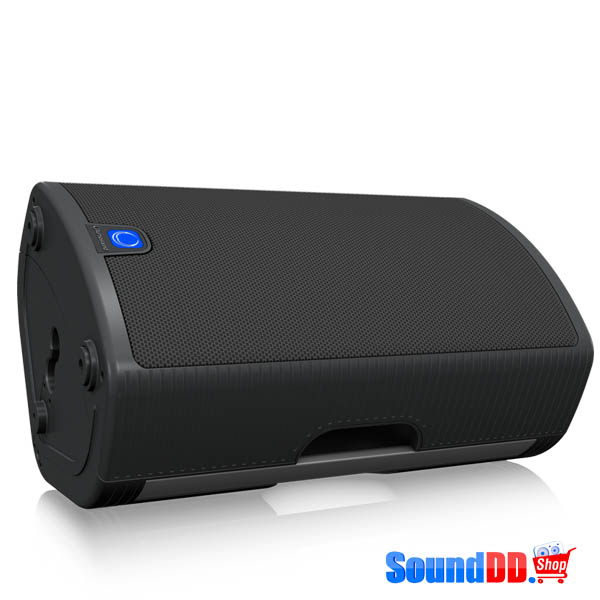

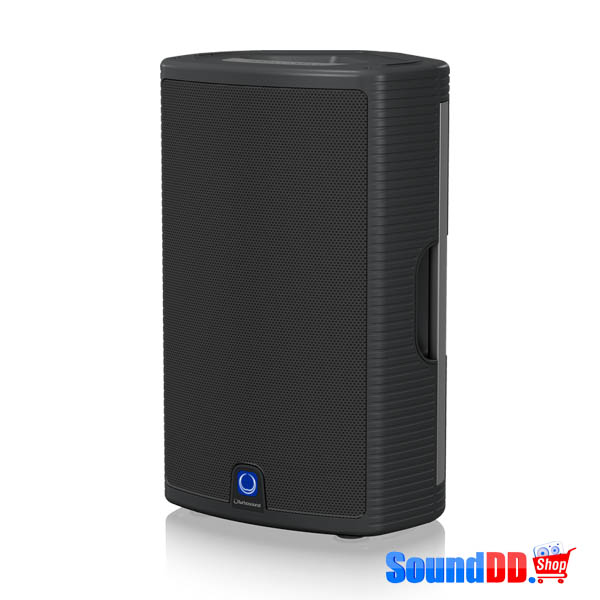

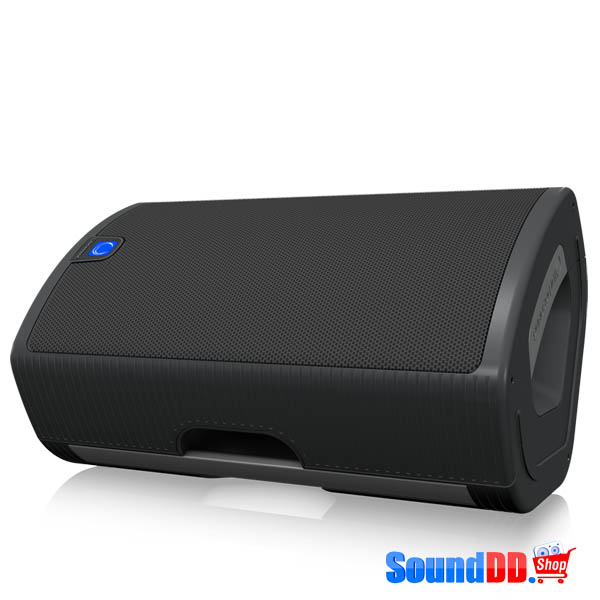

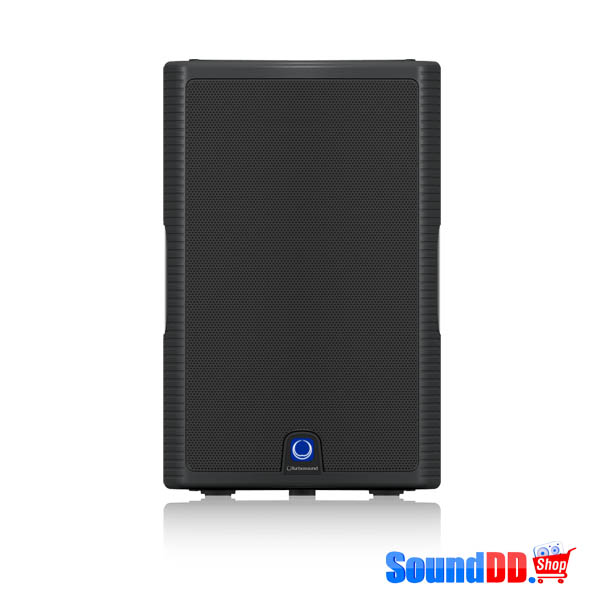

TURBOSOUND MILAN M12
1100 Watt 2 Way 12″ Full Range Powered Loudspeaker
with KLARK TEKNIK DSP Technology for Portable PA and Installation Applications
คุณสมบัติ
- 2 way full range powered loudspeaker for portable PA and installation applications
- 1,100 Watt power featuring KLARK TEKNIK Class-D technology
- KLARK TEKNIK Digital Signal Processing for total system control
- High excursion 12″ low frequency driver with low mass voice coil for improved transient response
- 1″ high temperature dome compression driver with extended high frequency reproduction
- Converging elliptical waveguide provides wide dispersion and excellent pattern control
- Speech/music switch featuring optimised equalisation for voice or music applications
- Switchable 100 Hz high pass filter for subwoofer integration
- Lightweight composite enclosure with black finish
- Rugged powder coated perforated steel mesh grille
- Dual angle pole mount for accurate audience coverage
- Multiple internal rigging points for installation applications
- 10-Year Warranty Program*
- Designed and engineered in the U.K.
สเปค
M12
1,100 Watt 2 Way 12″ Full Range Powered Loudspeaker with KLARK TEKNIK DSP Technology for Portable PA and Installation Applications
Technical Specifications
Model
| Components | 1 x 12″ LF driver 1 x 1″ HF driver |
| Connectors | Mic/Line input: combo jack/female XLR wired pin 2 hot Mix out: male XLR wired pin 2 hot IEC mains connector with integrated fuseholder |
Controls
| Controls | Level, Line/Mic, Low Cut, Speech/Music, Bass and Treble, Front LED, Mains on/off |
System Data
| Frequency Range | 50 Hz–18 kHz ±3 dB 45 Hz–20 kHz -10 dB |
| Dispersion @-6 dB pts | 90° H x 60° V |
| Max SPL (peak) | 128 dB |
| Equalisation | Bass: ±6 dB @ 80 Hz Treble: ±6 dB @ 12 kHz |
| Boost Frequency | N/A |
Indicators
| Power LED | Blue |
| Signal LED | Green |
| Limit LED | Red |
| Clip LED | Red |
Circuit Protection
| Amplifier Protection | Full short circuit, open circuit, thermal |
LF/HF Driver
| Max Output Power | LF: 1,000 W HF: 100 W |
Audio Inputs
| Input Sensitivity | Mic: -32 dBu; Line: -2 dBu |
| Input Impedance | Mic: 560 O unbalanced, 1 kO balanced; Line: 20 kO unbalanced, 40 kO balanced |
Power Supply, Voltage (Fuses)
| USA / Canada | 100–120 V~, T 8.0 A H 250 V |
| UK / Australia / Europe | 220–240 V~, T 4.0 A H 250 V |
| China | 220–240 V~, T 4.0 A H 250 V |
| Japan | 100–120 V~, T 8.0 A H 250 V |
| Power consumption@ 1/8 max power | 140 W |
| Rigging options | 6 x M10 threaded internal rigging points |
Construction / Dimensions / Weight
| Construction | Injection-moulded polypropylene enclosure. Recessed carrying handles. Integral dual-angle pole mount socket. Powder coated galvanised perforated steel mesh grille with foam backing |
| Dimensions (H x W x D) | 620 x 394 x 330 mm (24.4 x 15.5 x 13″) |
| Net weight | 20.5 kg (45.1 lbs) |
