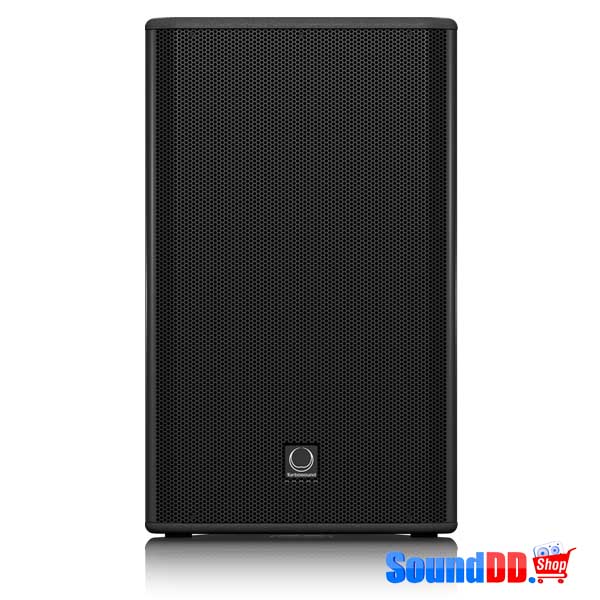

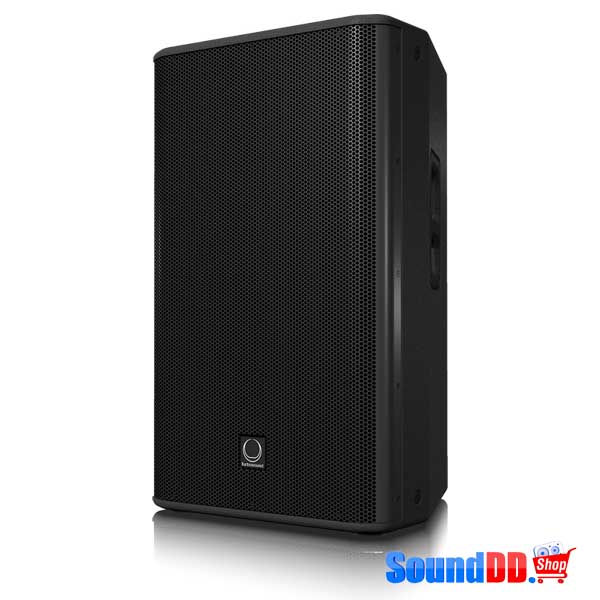

TURBOSOUND TMS152 ตู้ลำโพง 15 นิ้ว 2 ทาง 3200 วัตต์

฿32,000 (รวม VAT 7% แล้ว)



  • เช็ค Stock และราคาสินค้า กับเจ้าหน้าที่ก่อนสั่งซื้อทุกครั้ง
  • รับสินค้าภายใน 3 - 7 วัน (ขึ้นอยู่กับที่อยู่จัดส่งของลูกค้า)
  • สงวนสิทธิ์การเปลี่ยนแปลงข้อมูล ราคา ไม่แจ้งให้ทราบล่วงหน้า
  • สงวนสิทธิ์การรับผิดชอบเนื่องจากการพิมพ์ผิดพลาดต่างๆ

ตู้ลำโพง TURBOSOUND TMS152 15 นิ้ว 2 ทาง 3200 วัตต์ ตอบสนองความถี่ 55 Hz – 20 kHz ±3 dB และ 45 Hz – 20 kHz -10 dB TURBOSOUND TMS-152M ลำโพง 15 นิ้ว จากแบรนด์ TURBOSOUND

TURBOSOUND MADRID TMS152
2 Way 15″ Full Range Loudspeaker for Portable PA and Installation Applications

MADRID TMS152

The 2 way full range TMS152 is a switchable passive/bi-amp 15″ 3,200 Watt loudspeaker system designed for a wide range of portable speech and music sound reinforcement applications. The TMS152 is designed to work in conjunction with TURBOSOUND loudspeaker management systems, providing optimal performance for FOH, side and drum fill applications, as well as offering considerable flexibility to readily adapt to varying venue requirements.

The TMS152 loudspeaker features a carbon fibre loaded 15″ low frequency driver with an inside/outside wound low mass voice coil for improved transient response, and a titanium dome 1.4″ neodymium motor compression driver mounted on a 75° horizontal by 50° vertical low distortion waveguide. All drivers are matched with an internal passive crossover network in a reflex-loaded enclosure, and bi-amp mode can be enabled by means of a rear panel switch.

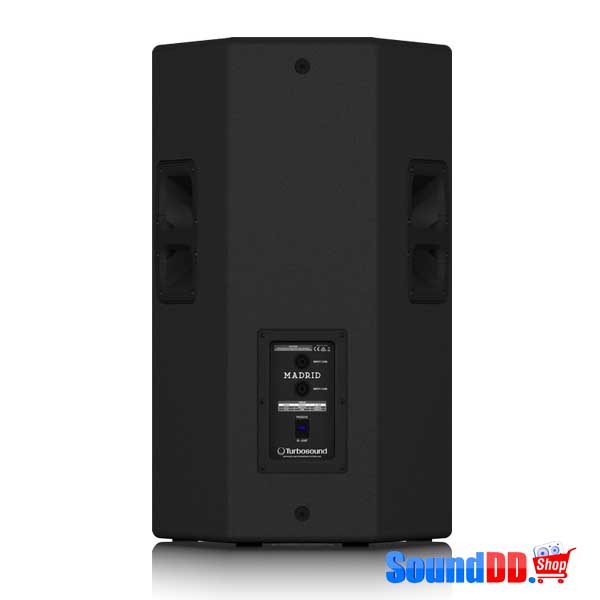

Finished in a highly durable semi matt black paint, the cabinet is constructed from 15 mm (5⁄8″) birch plywood, and includes a rugged powder coated perforated steel mesh grille backed with reticulated foam. The TMS152 includes internal M10 threaded rigging points for permanent installation, a dual-angle pole mount socket for high or low height use with 35 mm poles/ speaker stands to optimise audience coverage, and durable handles for easy transport. A rear panel connector plate carries two Neutrik speakON* NL4 connectors for input and link connections to additional enclosures.

คุณสมบัติ

  • 2 way full range loudspeaker for portable PA and installation applications
  • 800 Watts continuous, 3,200 Watts peak power
  • Ideal for FOH, side and drum fill applications
  • Carbon fibre loaded 15″ low frequency driver with inside/outside wound coil
  • Titanium dome 1.4″ neodymium motor compression driver
  • Switchable passive/bi-amp operation for flexibility of use
  • Low distortion waveguide provides 75° H x 50° V dispersion
  • 15 mm (5/8″) birch plywood enclosure with hard wearing semi matt black paint finish
  • Rugged powder coated perforated steel mesh grille
  • Dual angle pole mount for accurate audience coverage
  • Durable handles for easy lifting and carrying
  • Multiple internal rigging points for installation applications
  • Neutrik speakON* NL4 connectors for reliable long life operation
  • 10-Year Warranty Program*
  • Designed and engineered in the U.K.
น้ำหนัก 27.7 กก.
ขนาด 432 × 406 × 716 มิลลิเมตร
ยี่ห้อ

ดูเฉพาะ

,

ขนาดดอก

สเปค

System

Frequency Response 55 Hz – 20 kHz ±3 dB
45 Hz – 20 kHz -10 dB
Nominal Dispersion 75º H X 50º V @ -6 dB Points
Directivity Factor (Q) 12.8
Directivity Index (DI) 11.1
Power Handling (IEC)
Passive 800 W continuous, 3,200 W peak
Bi-amp LF: 800 W continuous, 3,200 W peak
HF: 75 W continuous, 300 W peak
Sensitivity 97 dB (1 W @ 1 m)
Maximum SPL
Passive 126 dB continuous, 132 dB peak
Bi-amp LF: 126 dB continuous, 132 dB peak
HF: 128 dB continuous, 134 dB peak
Impedance
Passive 8 O
Bi-amp LF: 8 O; HF: 6 O
Crossover Type Passive / bi-amp, switchable
Components 1 x 15″ (394 mm) LF driver
1 x 1.4″ (36 mm) HF compression driver

Enclosure

Connectors 2 x Neutrik speakON* NL4
Wiring
Passive Pins 1+ / 1- input, pins 2+ / 2- link
Bi-amp Pins 1+ / 1- LF, pins 2+ / 2- HF
Dimensions (H x W x D) 716 x 432 x 406 mm (28.2 x 17.0 x 16.0″)
Net Weight 27.7 kg (61.0 lbs)
Construction 15 mm (5/8″) birch plywood
Finish Semi matt black paint
Grille Powder-coated perforated steel
Flying Hardware M12 x 12 points

ดาวน์โหลด

รหัสสินค้า: TURBOSOUND TMS152 หมวดหมู่: , , ป้ายกำกับ:
