WHARFEDALE PRO KMD-7 ชุดขาจับไมโครโฟน สำหรับไมค์กลอง KMD-7 Drum kits จากแบรนด์ WHARFEDALE PRO
WHARFEDALE PRO KMD-7

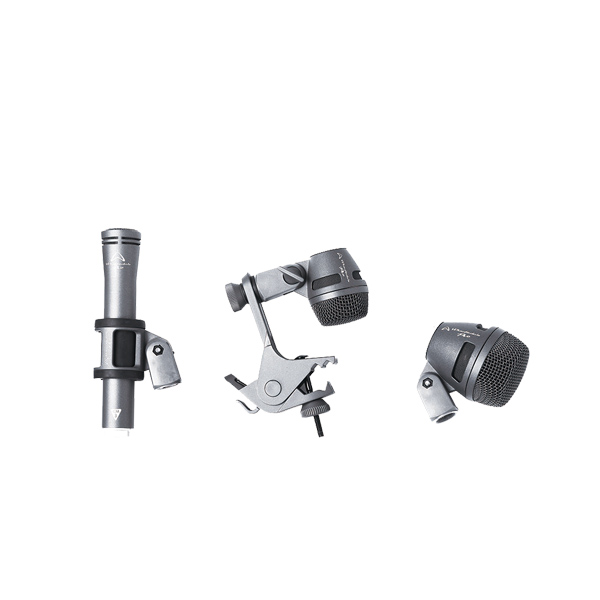

5 Diverse Models
KM series are designed to provide exceptionally clear, articulate sound with excellent off-axis rejection for high gain before feedback in a live environment.
The range consists of a variety of condenser and dynamic microphones.

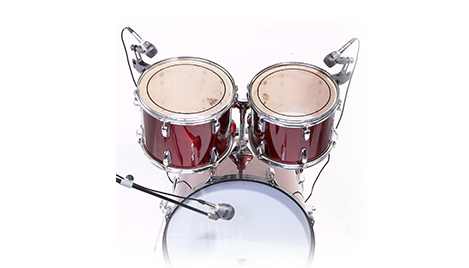

Combined the series as a whole works exeptionally well for drum kits, however each microphone performs as an individual also working as vocal and instrument mics in their own right.
คุณสมบัติ
- Combination of Condensers & Dynamic Mics
- High tech zinc finish
- 5 diverse models
- Unidirectional polar responses
- Neodymium magnets (Except KM-3)
- Dent-resistant steel grilles
- Single and multipacks available
- Rugged cast Zinc alloy body
- On/off switch
- Gold-plated XLR connectors
Pickup the signal, not the noise
The KM Series Microphones include feature super-cardioid & cardioid patterns to minimize feedback and to reject signals not originating in front of the microphone.

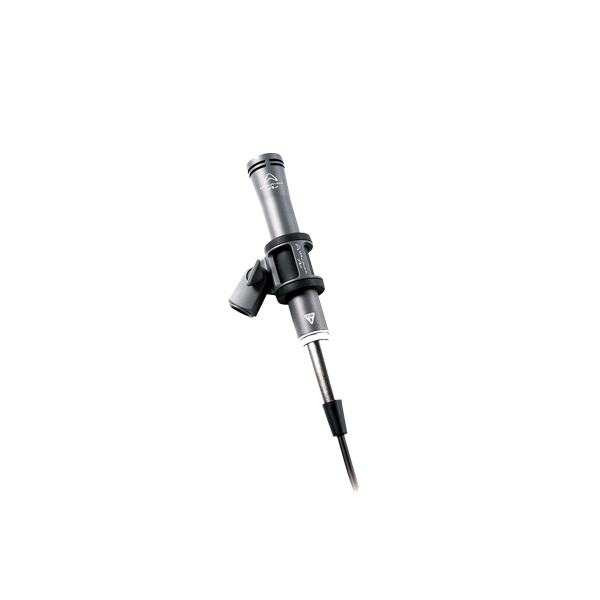

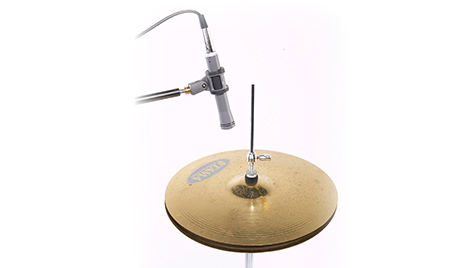

KM3 – Overhead
The KM3 is an end address small diaphragm condenser intended for use as a drum overhead microphone however it is equally suited to many other applications such as stringed instruments and piano.
Two KM3’s are supplied for stereo overhead coverage and come complete with a rubberized shockmount to ensure handling noise is minimized.

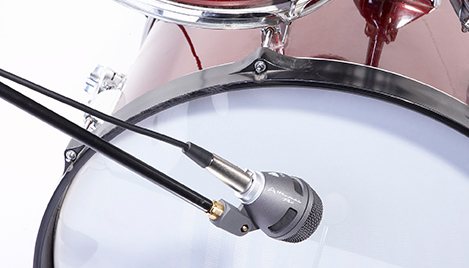

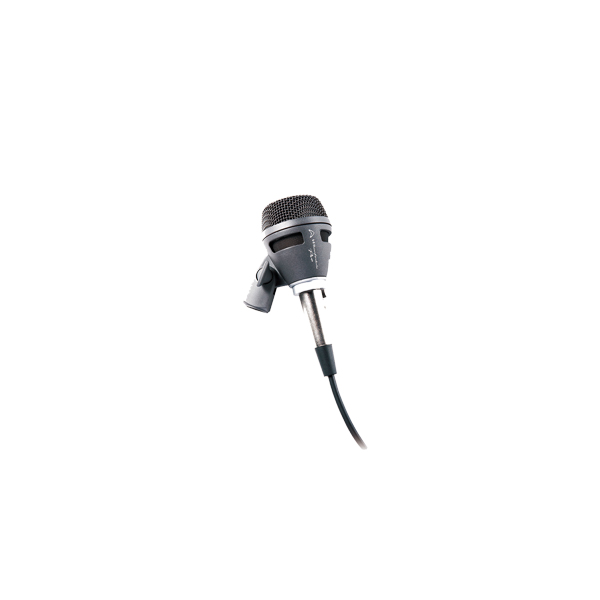

KM4 – Low end dynamic
The KM4 like the other dynamic models in the range utilize a neodymium magnet to provide exceptional low distortion at high output levels.
Primarily designed for kick and tom applications it is also at home when used on bass,
brass and amplifier cabinets.

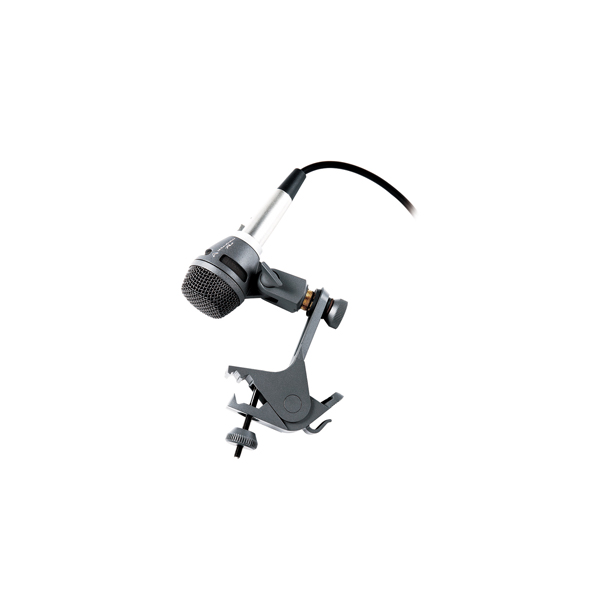

KM5 – dynamic

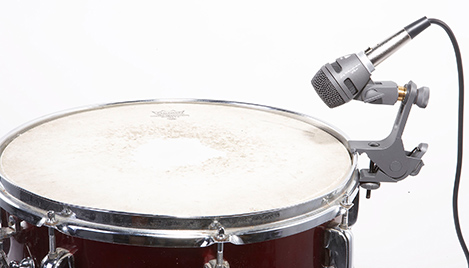

The four KM5 microphones have a spring loaded adjustable drum-rim mounting bracket that ensures perfect positioning for snare and tom applications.
The intelligent rim mounting ensures that the microphone will operate effectively and safely out of the range of sticks and beaters;
in addition there is a cable tidy to ensure wiring is neat, tidy and safe.
สเปค
| KM-3 | |
| Transducer Type | Condenser |
| Polar Pattern | Cardioid |
| Frequency Response | 30 Hz – 20 kHz |
| Load Impedance | <1000 Ohms |
| Sensitivity (@ 1000Hz) | -46 dBV/Pa |
| Off Axis Rejection | >18dB |
| Maximum SPL | >120dB |
| S/N Ratio | more than 70dB |
| Current Consumption | 4.6mA |
| Power Supply | 11-52V phantom power |
| Connector | 3 pin gold plated male XLR |
| Polarity | Positive voltage on pin 2 relative to pin 3 of output connector |
| Housing | Zinc Alloy |
| Dimensions | Ø30mm x 154mm x Ø21mm |
| Weight | 120g (4.2oz) |
| KM-4 | |
| Transducer Type | Dynamic |
| Polar Pattern | Super-cardioid |
| Frequency Response | 30Hz – 12kHz |
| Load Impedance | 250 Ohms |
| Sensitivity (@ 1000Hz) | -54 dBV/Pa |
| Off Axis Rejection | >20dB |
| Maximum SPL | >135dB |
| Connector | 3 pin gold plated male XLR |
| Polarity | Positive voltage on pin 2 relative to pin 3 of output connector |
| Housing | Zinc Alloy |
| Dimensions | Ø58.6mm x77.8mm x Ø27mm |
| Weight | 240g |
| KM-5 | |
| Transducer Type | Dynamic |
| Polar Pattern | Super-cardioid |
| Frequency Response | 50Hz – 16kHz |
| Load Impedance | 250 Ohms |
| Sensitivity (@ 1000Hz) | -54 dBV/Pa |
| Off Axis Rejection | >22dB |
| Maximum SPL | >130dB |
| Connector | 3 pin gold plated male XLR |
| Polarity | Positive voltage on pin 2 relative to pin 3 of output connector |
| Housing | Zinc Alloy |
| Dimensions | Ø45.2mm x 61.3mm x Ø24mm |
| Weight | 170g |
