System Type |
Active 15″ 2-way Bi-Amplified |
Active 15″ 2-way Bi-Amplified |
Frequency Response (+/-3dB) |
50-20kHz |
50-20kHz |
Sensitivity @ 1w / 1m |
97dB |
97dB |
Maximum SPL (peak @1m) |
130dB |
130dB |
Low Frequency Transducer |
|
|
Size (mm / inches) |
381mm / 15″ |
381mm / 15″ |
Coil Size (mm / inches) |
50.8mm / 2.0″ |
50.8mm / 2.0″ |
Impedance |
4Ω |
4Ω |
High Frequency Transducer |
|
|
Type |
Compression Driver |
Compression Driver |
Coil Size (mm / inches) |
44.5mm / 1.75″ |
44.5mm / 1.75″ |
Exit Size (mm / inches) |
25mm / 1″ |
25mm / 1″ |
Diaphragm Material |
Titanium |
Titanium |
Impedance |
8Ω |
8Ω |
High Frequency Coverage (H x V) |
90° x 60° |
90° x 60° |
Amplifiers |
|
|
LF Power Amplifier (Class D) |
350w Continuous / 700w Peak |
350w Continuous / 700w Peak |
HF Power Amplifier (Class AB ) |
100w Continuous / 200w Peak |
100w Continuous / 200w Peak |
Crossover Frequency |
HI PASS 2.4kHz LOW PASS 2.4kHz |
HI PASS 2.4kHz LOW PASS 2.4kHz |
Equalization |
+/-12dB Gain for bass and treble |
+/-12dB Gain for bass and treble |
Power On Protection |
Power switch on / off mute |
Power switch on / off mute |
Thermal Protection |
Amplifier shutdown, auto reset |
Amplifier shutdown, auto reset |
Driver, DC and Short Protection |
Yes |
Yes |
Limiter Indicator |
Red LED |
Red LED |
Power Indicator |
Green LED |
Green LED |
Input type |
Balanced |
Balanced / BT / USB |

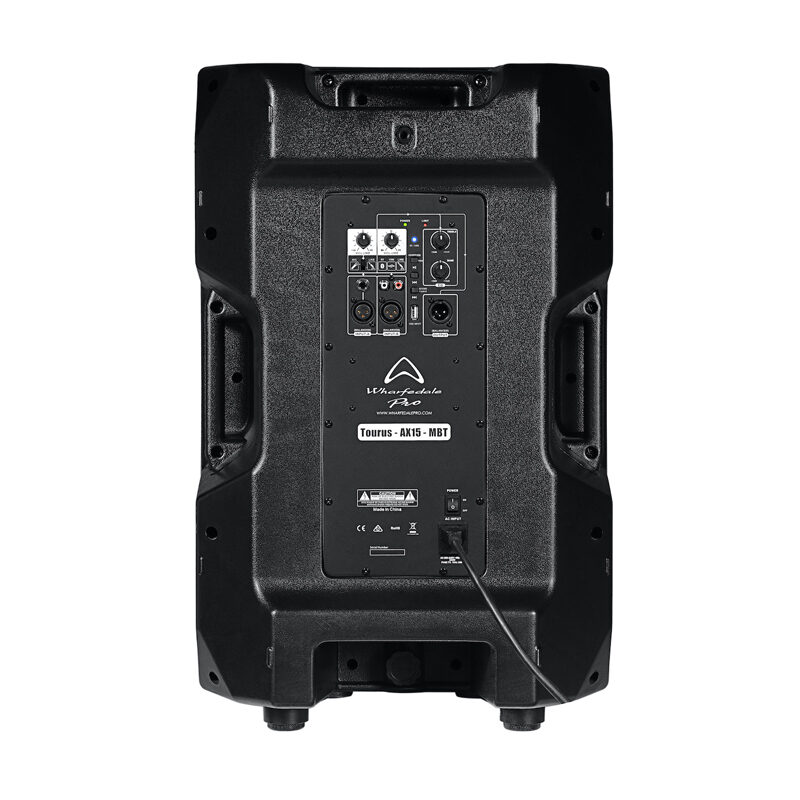

Input Connectors |
2 x TRS JACK, 2 x RCA AND 2 x XLR |
2 x TRS JACK, 2 x RCA AND 2 x XLR |
Input Impedance |
47KΩ Balanced |
47KΩ Balanced |
Maximum Input Level |
5V |
5V |
Line Input Sensitivity |
-10dB |
-10dB |
Mic Input Sensitivity |
-40dB |
-40dB |
Line Output Connector |
Male XLR |
Male XLR |
Power Supply |
SMPS |
SMPS |
AC Power Options |
100V-120V and 220V-240V |
100V-120V and 220V-240V |
Power On Indicator |
LED / Illuminated front logo |
LED / Illuminated front logo |
Rigging / Bracket / Mounting Options |
4 x M8 |
4 x M8 |
|
35mm Pole-mount with lock screw |
35mm Pole-mount with lock screw |
|
3 handles (2 on sides, 1 on top) |
3 handles (2 on sides, 1 on top) |
|
Optional wall bracket (WPB-2) |
Optional wall bracket (WPB-2) |
Enclosure |
|
|
Enclosure Material |
Injection Moulded Polypropylene |
Injection Moulded Polypropylene |
Colour |
Black |
Black |
Grille |
1.2mm steel |
1.2mm steel |
Dimensions (Unpacked) |
|
|
Height |
693mm / 27.3″ |
693mm / 27.3″ |
Width – Front |
455mm / 17.9″ |
455mm / 17.9″ |
Width – Rear |
262mm / 10.3″ |
262mm / 10.3″ |
Depth |
401.8m / 15.1″ |
401.8m / 15.1″ |
Dimensions (packed) |
|
|
Height |
762mm / 30.0″ |
762mm / 30.0″ |
Width |
508mm / 20.0″ |
508mm / 20.0″ |
Depth |
425mm / 16.7″ |
425mm / 16.7″ |
Weight |
|
|
Net Weight (kg / lbs) |
19.2kg / 42.2lbs |
19.2kg / 42.2lbs |
Gross Weight (kg / lbs) |
22.0kg / 48.4lbs |
22.0kg / 48.4lbs |
