ลำโพงซับวูฟเฟอร์ WHARFEDALE-PRO WLA-28SUB ขนาด 2 x 15 นิ้ว 4800 วัตต์ นำพลังและประสิทธิภาพนั้นไปสู่อีกระดับ ด้วยไดรเวอร์การบีบอัด HF ที่ได้รับการปรับปรุง

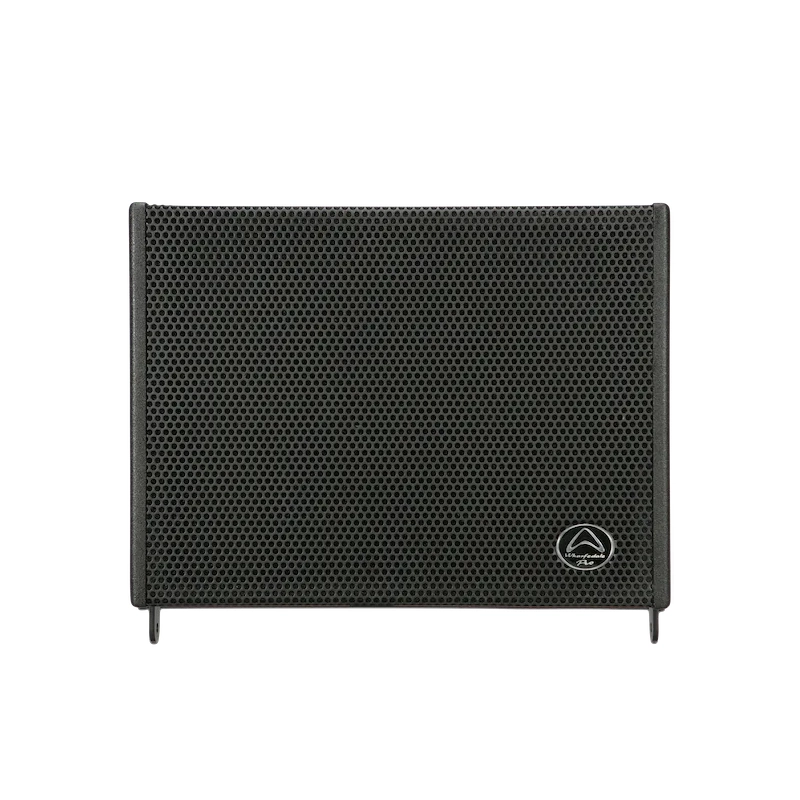

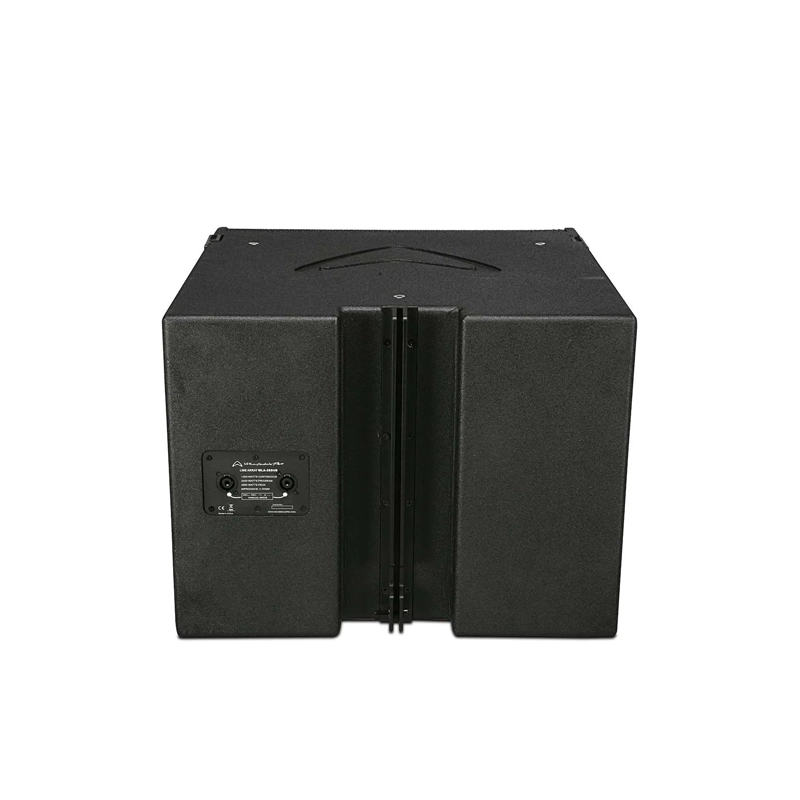

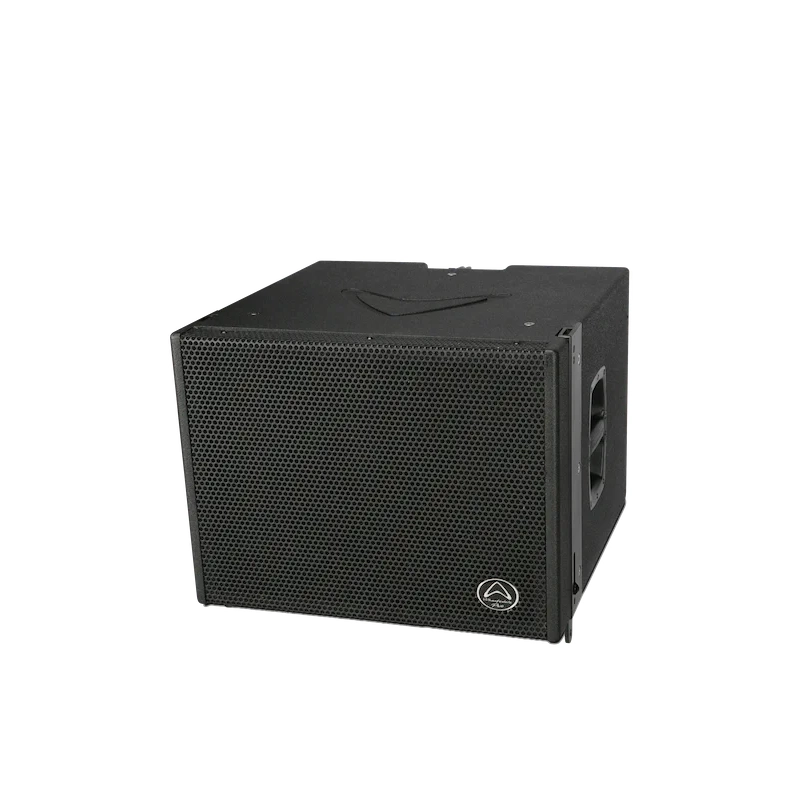

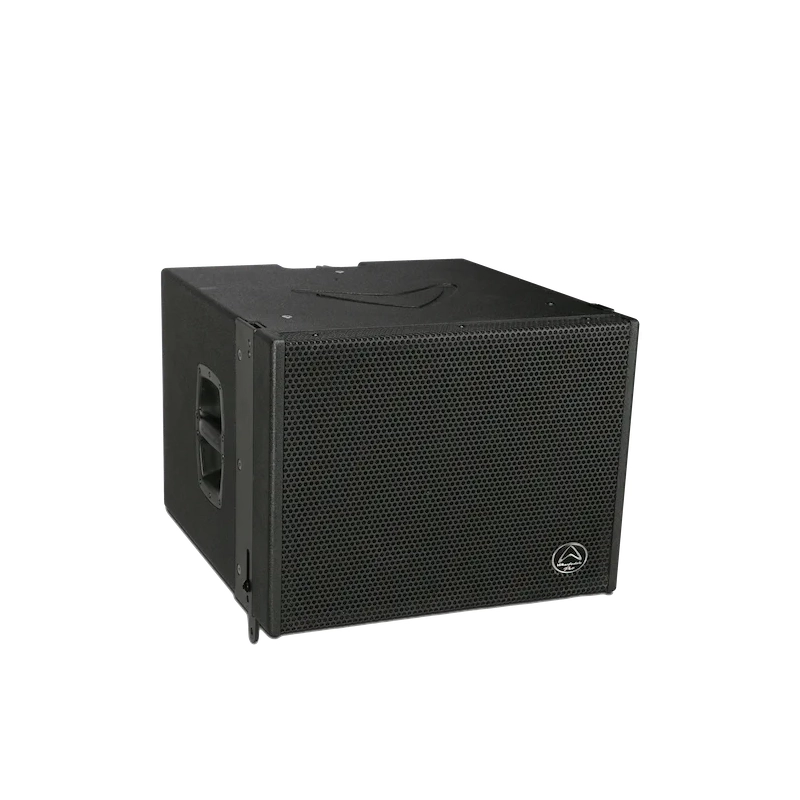

WHARFEDALE PRO WLA-28SUB
Dual 15” high powered subwoofer
The original WLA-28 has become a favourite around the world. Dual 8” drivers, extreme SPL capabilities and an impressive price to performance ratio has meant that WLA-28 can be found on stage, on tour and in fixed installations.
The newly updated WLA-28X now takes that power and performance to a new level. With an improved HF compression driver, new flat grille design and improved HF protection circuitry, the WLA-28X is ready to impress.
The new custom designed HF compression driver now delivers more control and more definition to the HF content.
The flat grille face also makes life easier for rental companies and improves long-term durability.
ABOUT THE CLARITY
The new neo HF compression driver delivers additional clarity and performance with enhanced definition.
It is custom made by Wharfedale Pro and is coupled to a 100° x 10° waveguide.
DUAL 8″
At the heart of the WLA-28X are 2 x 8″ custom Wharfedale Pro LF drivers.
These feature 2.0″ voice coils to ensure high efficiency and high power handling.
These custom designed transducers are what give a WLA-28X system its incredible sound and power handling capacity.
COMPARE WLA-28X TO THE ORIGINAL WLA-28
response graphs show clearer high frequency definition
Original WLA-28 response graphs
WLA-28X also has a new HF protection circuit
Original WLA-28 circuit
OPTIMISED GROUND STACKING
WLA-28X rigging doubles up as an optimised ground stacking system, using the WLA-15B or WLA-28SUB subwoofer as a base.
Arrays of WLA-28X line array elements can be aimed downwards by as much as 10° to cover audience areas close to a stage, as well as upward by as much as 10° in order to better cover distant balcony seating areas.
“WHEELY” USEFUL
With the WLA-28 Dolly Frame, manoeuvrability is now an added feature.
The steel frame acts both as a common fly frame for flying situations AND as a dolly for ground stacking.
3 outriggers add stability to a ground stack allowing up to a maximum of 1 x WLA-28SUB plus 4 x WLA-28X’s to be configured. Adding extra versatility to any WLA-28X system
BI-AMP & PASSIVE
In BI-AMP mode, two power amplifiers can be used. This gives you the advantage of being able to select the best power amplifier specifications for each driver inside the loudspeaker. In a BI-AMP configuration, an external crossover is used to separate the frequencies and this splits the signal to the dedicated LF amplifier and the HF amplifier. This way, each amplifier is only working on the given frequency range and, in turn, is powering the corresponding driver inside the loudspeaker.
In PASSIVE mode, a single amplifier can be used to power all drivers inside the loudspeaker. The full frequency range is put into the loudspeaker and the loudspeakers’ internal crossover separates the frequencies, delivering the right frequencies to the right driver. In the example of a 2-way passive loudspeaker, this means that the single amplifier is powering both the HF compression driver and the LF transducer. The internal crossover takes care of both the frequency and power separation.
คุณสมบัติ
- Dual 15″ LF drivers with 4.0″ voice coils
- 145 dB Max SPL
- 15 mm / 18 mm Birch plywood construction
- Integral rigging system
- 1200 watts AES (RMS)
- 2400 watts Programme
- 4800 watts Peak
- 4 Ω impedance
