ตู้ลำโพงมอนิเตอร์สตูดิโอ NEUMANN KH 80 DSP มีแอมป์ในตัว 4 นิ้ว 2 ทาง Two Way Nearfield Monitor จากแบรนด์ NEUMANN

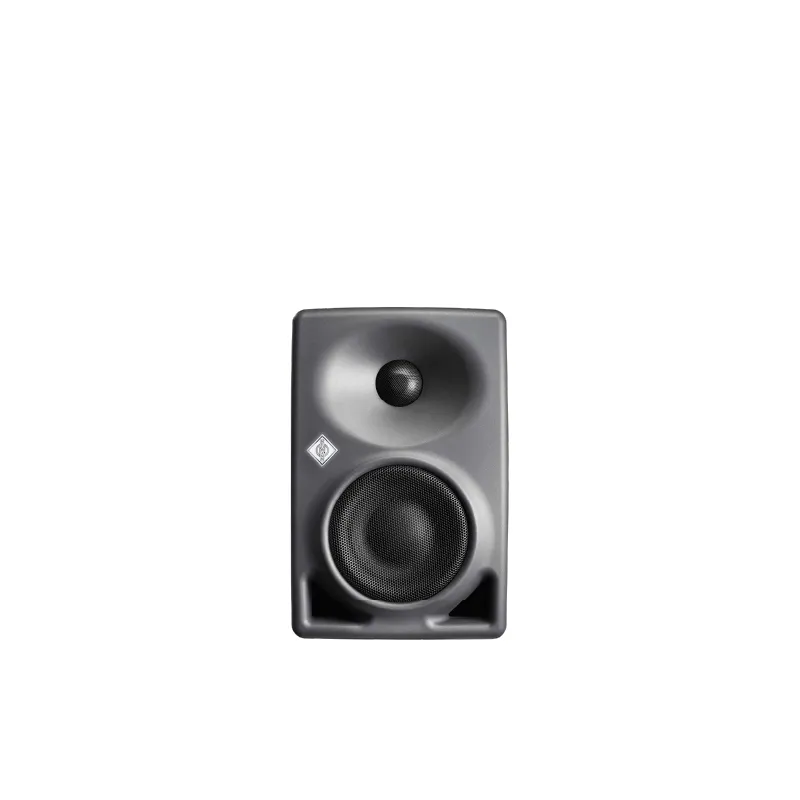

NEUMANN KH 80 DSP
Two Way Nearfield Monitor
Ultra-compact, DSP-controlled bi-amplified near-field monitor with exceptional power reserves
NEUMANN KH 80 DSP SIMPLY THE BEST 4” ON THE MARKET
With its digital core, the KH 80 DSP enables filtering functions and room adjustment options, which brings reference level reproduction to any environment. Even with its compact design, it has extraordinary reserve capacity – as well as the classic strengths of the Neumann monitor philosophy: clearly defined dispersion angle, distortion-free design and sophisticated material selection.
NEUMANN KH 80 DSP OPEN UP THE FULL POTENTIAL OF THE KH 80 DSP
Via standard IP networking, Neumann.Control gives full access to all the functions of the KH 80 DSP Studio Monitor not already available via the back panel. Systems of loudspeakers can be defined, from mono to 3D, aligned for a good in-room sound, and then operated centrally: Setup, Align, Operate. Neumann.Control for iPad®
NEUMANN KH 80 DSP THE PERFECT SOUND OF HIGHER MATHEMATICS AT WORK
The Neumann developers know every nuance, every angle and every wave reflection of the KH 80 DSP. It sounds so pure because they are directing every sound wave so precisely. The KH 80 DSP’s design is based on computer simulations that calculate with a level of accuracy that no one other than Neumann does. The Mathematical Modeled Dispersion Waveguide (MMD™) provides the studio series with a solid base for precise sound direction that remains unique. Maths has never sounded so good.
NEUMANN KH 80 DSP NEUMANN EVEN INCLUDES THE BIGGEST UNKNOWN FACTOR IN OUR CALCULATIONS: YOUR ROOM
It might be a project studio, an outside broadcast van, a corner at work or just a brick building: The room defines the sound. Surfaces and corners in the room cause interference, diffraction, reflection, and refraction: all are forms of distortion. For a really true sound, without acoustic-physical “accidents”, you normally need expensive equipment plus plenty of time and expertise to align it correctly – or smart algorithms. Neumann’s DSP engine optimizes the sound output of the KH 80 DSP, delivering quality way above the price-tag. And the best part: You don’t need to be an expert to perfectly adjust the system to your environment.
A TOOL FOR EVERYONE WHO HAS PROFESSIONAL STANDARDS
Highest quality components, high-end protection systems and power reserves are what you would expect from this studio class product even under the most demanding circumstances. Its design makes the KH 80 DSP a versatile near-field monitor, which delivers professional-quality sound wherever you need it – in project and music studios, editing and broadcasting rooms or in outside broadcast vans. Some of our customers like it so much, they use the KH 80 DSP in their living rooms. Why not? After all, the KH 80 DSP delivers digital precision for a masterpiece of analog technology: your ears.
The KH 750 DSP subwoofer is the perfect complement to the KH 80 DSP.
- Transformerless circuitry with high SPL capability
- Extremely low self-noise: only 7 dB-A
NEUMANN KH 80 DSP THE PERFECT SOUND OF HIGHER MATHEMATICS AT WORK
The Neumann developers know every nuance, every angle and every wave reflection of the KH 80 DSP. It sounds so pure because they are directing every sound wave so precisely. The KH 80 DSP’s design is based on computer simulations that calculate with a level of accuracy that no one other than Neumann does. The Mathematical Modeled Dispersion Waveguide (MMD™) provides the studio series with a solid base for precise sound direction that remains unique. Maths has never sounded so good.
NEUMANN KH 80 DSP NEUMANN EVEN INCLUDES THE BIGGEST UNKNOWN FACTOR IN OUR CALCULATIONS: YOUR ROOM
It might be a project studio, an outside broadcast van, a corner at work or just a brick building: The room defines the sound. Surfaces and corners in the room cause interference, diffraction, reflection, and refraction: all are forms of distortion. For a really true sound, without acoustic-physical “accidents”, you normally need expensive equipment plus plenty of time and expertise to align it correctly – or smart algorithms. Neumann’s DSP engine optimizes the sound output of the KH 80 DSP, delivering quality way above the price-tag. And the best part: You don’t need to be an expert to perfectly adjust the system to your environment.
A TOOL FOR EVERYONE WHO HAS PROFESSIONAL STANDARDS
Highest quality components, high-end protection systems and power reserves are what you would expect from this studio class product even under the most demanding circumstances. Its design makes the KH 80 DSP a versatile near-field monitor, which delivers professional-quality sound wherever you need it – in project and music studios, editing and broadcasting rooms or in outside broadcast vans. Some of our customers like it so much, they use the KH 80 DSP in their living rooms. Why not? After all, the KH 80 DSP delivers digital precision for a masterpiece of analog technology: your ears.
The KH 750 DSP subwoofer is the perfect complement to the KH 80 DSP.
- Transformerless circuitry with high SPL capability
- Extremely low self-noise: only 7 dB-A

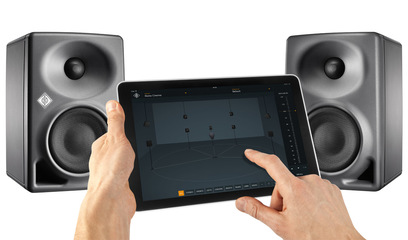

CONTROL AND ALIGN THE MONITOR WITH YOUR IPAD®
The Neumann.Control app for iPads® offers several features allowing you to setup, align and operate the KH 80 DSP even in large setups up to 9 loudspeakers.
The key features are:
Setup:
- 1, 2, 4, 5, 7 and 9 loudspeakers
- Identify loudspeakers on the network that are in the room
- Assign the identified loudspeakers to positions in the room
Align:

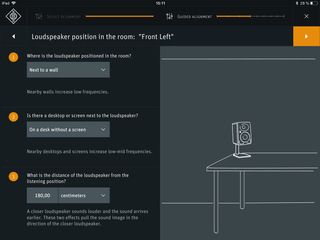

- Guided Alignment – a set of simple questions resulting a well-balanced sound. The Guided Alignment is a process where you are asked very simple questions about the room and the loudspeaker position, and then the app adjusts the response of each loudspeaker accordingly

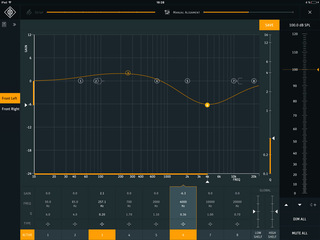

- Manual Alignment – an 8-band fully parametric equaliser for expert users. In Manual Alignment expert users have complete freedom to adjust an 8-band parametric equalizer, levels and delays in each loudspeaker as they wish. Manual Alignment can also be used to edit Guided Alignments in a more detailed way.

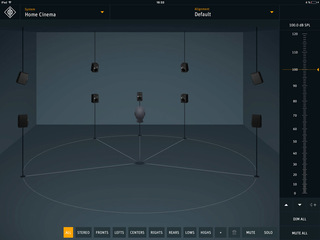

Operate:
- System and alignment selection
- Volume control, preset levels, dim, mute all
- Groups, solos, mutes
- Other system settings such as delay, standby level and logo brightness
System Requirements: iPad® with iOS® 10 or higher
HUNDREDS OF GOOD REASONS FROM THE NEUMANN PHILOSOPHY
The KH 80 DSP has also been developed true to the Neumann philosophy for monitor loudspeakers. Every component, every shape, every signal and every wave motion is a consequence of this philosophy. No form or component is there without reason. There are hundreds of tangible reasons built into the KH 80 DSP, which all stand for exceptionally pure and neutral sound. These include, for example, curvatures of the housing that reduce edge diffraction. Also included is the pistonic output of the bass driver which does not give rise to harmonic distortions, even with the highest sound peaks. Some of these reasons are obvious in the KH 80. Others Neumann prefers to keep to itself. But together, each can be heard – sound professionals in both large and small studios all around the world can testify to this. You can read more about the Neumann philosophy for studio monitors here.

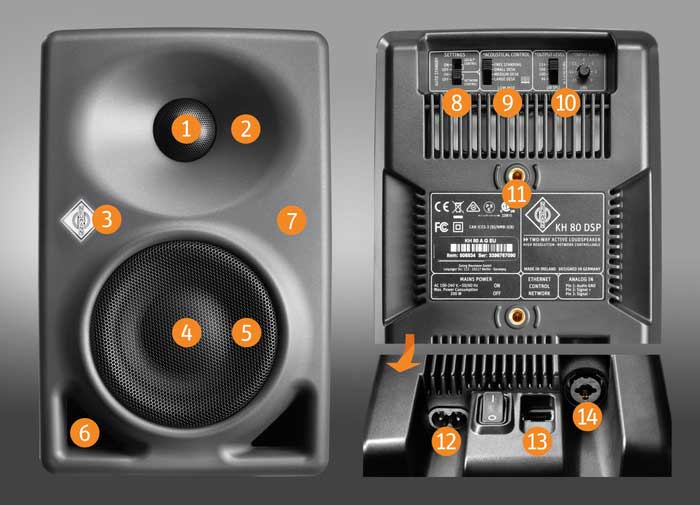

(1) In-house simulated tweeter with alloy fabric dome
- Latest modeling techniques used to minimize non-linear (harmonic and intermodulation) distortion
- Low-distortion high frequency reproduction
(2) Elliptical Mathematically Modelled Dispersion™ (MMD™) waveguide
- Smoother off -axis response
- More forgiving of diverse acoustical environments
Wide horizontal dispersion
- Freedom of movement across the mixing console
Narrow vertical dispersion
- Reduces reflections off the mixing console
(3) Two-color + dimmable Neumann logo
- Displays operation status and activation of the extensive protection system
- Dimmable for low lighting level conditions or behind the screen applications
(4) In-house modelled long-throw composite sandwich cone bass driver with Extremely Linear Force Factor™ (ELFF™) and flow optimized die cast basket
- Damping of break up modes brings low distortion at high sound levels
- Linear pistonic motor gives a very low harmonic distortion even at high excursions
- Reduced air noise and improved rocking modes
(5) Robust metal grilles
- Protects against mechanical damage
(6) Large high-capacity flow-optimized bass reflex ports with pipe resonance damping
- Fast bass transient response
- Reduced bass compression at high output levels
- No coloration from organ pipe resonance
- Easier to mount in tight spaces
(7) Compact polycarbonate composite cabinet
- Robust package for a long life
- No standing wave resonances
One-piece front panel with no discontinuities
- Reduced diffraction and smoother frequency response
(8) Standby function
- Reduces power consumption when product is not in use
Control function
- Use the back panel controls or the control set defined by the Neumann.Control software
(9) 4-position low-mid acoustical control
- Compensates for nearby desktops
- Fast acoustical set up in mobile applications
- Repeatable acoustical settings after moving loudspeakers
(10) Wide range input gain and output level controls
- Easier interfacing with signal sources
(11) Fully documented extensive mounting hardware range
- More flexibility in mounting cabinets in more diverse locations and backwards compatible to previous products
- Easy advanced planning for installations
(12) Universal double-insulated switched-mode power supply (100 … 240 V)
- One version works in any country and robust to poor quality mains supply
- Ground loops are impossible
(13) Network connector using standard IP protocol and your existing network infrastructure
- No additional special equipment needed
- Loudspeaker system can be controlled via the Neumann.Control software
(14) Analogue input socket can accept XLR or 6.3 mm (1/4”) Jack plugs, electronically balanced with completely symmetrical internal signal chain
- Completely symmetrical internal signal routing minimizes noises caused by external electromagnetic interference
คุณสมบัติ
Production consistency due to automated computer optimized alignment in final testing
- Any KH 80 DSP is “pair matched” to any other KH 80 DSP
Separate fast acting thermo limiters for woofer and tweeter to protect the voice coils and power amplifiers
- Woofer soft clip and excursion limiters
- Fast acting and highly reliable
- Allows extraction of the maximum performance
Low heat dissipation amplifiers with large headroom and overheat limiting
- Improved transient response
- Assured reliability and safety
8 x Precision Alignment acoustical controls accessible via control network
- Accurate and flexible alignment of the loudspeaker in the room and within systems
Delay (0 … 70 ms)
- Lip-sync: To align audio and video signals up to 1.75 frames at 50 Hz or 2.1 frames at 60 Hz
- Time-of-flight: To compensate for listening distance differences up to 24 m (79 ft.)
Linear phase crossover
- Flat phase response for timing transparency
