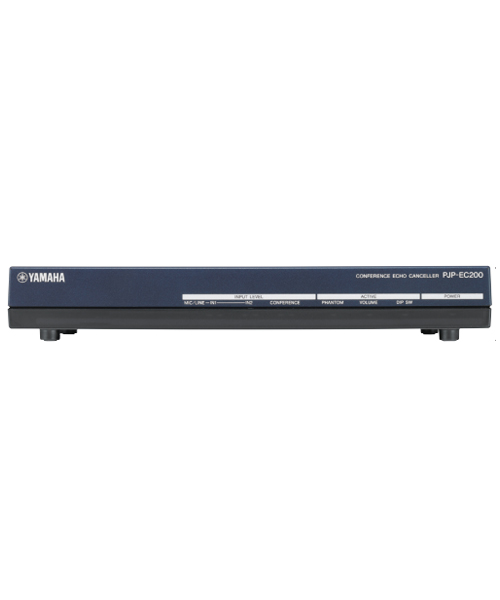

YAMAHA PJP-EC200 Conference Echo Canceller
YAMAHA PJP-EC200 เครื่องตัดเสียงสะท้อน และลดเสียงรบกวน YAMAHA PJP-EC200 Echo Canceller ยี่ห้อ YAMAHA

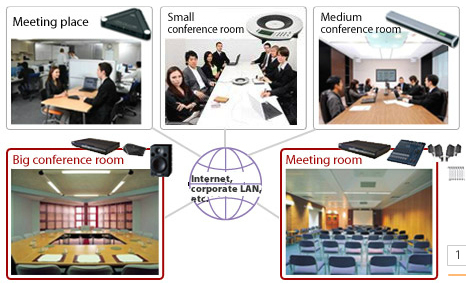

Powerful echo cancelling in settings from small to large conference rooms
The PJP-EC200 is a remote conferencing echo canceller device for Web and video conference systems. When combined with a public address system (microphones, speakers, and a mixer), it can be used for a variety of demanding applications.
Capabilities

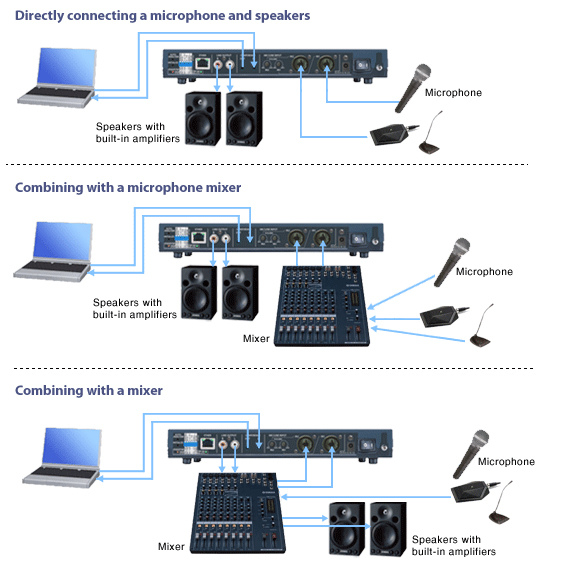

Connections
smooth duplex performance

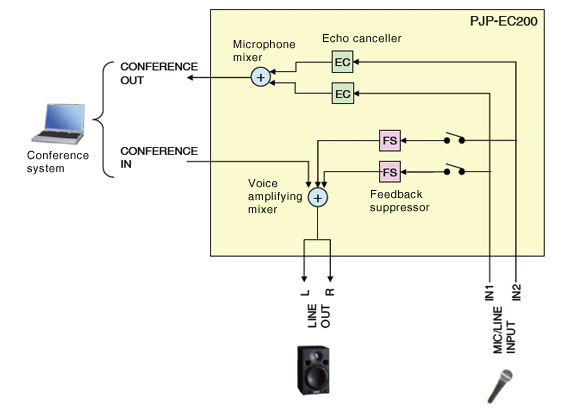

Echo can occur in an audio conference system when the microphones pick up the audio reproduced from the speakers. The PJP-EC200 enables smooth full-duplex talk by incorporating a high-performance adaptive echo canceller that eliminates any sounds reproduced by the connected speakers from the sounds picked up by the microphones.
Adaptive echo canceller.
The PJP-EC200’s adaptive echo canceller automatically adjusts the echo-filter factor according to the operating environment, as well as any connected audio equipment.
Even when a movable microphone (handheld, tie-pin type, etc) is used, the PJP-EC200 follows the microphone automatically and efficiently eliminates echoes.
20 kHz wide bandwidth echo canceller
The built-in wide bandwidth echo canceller also supports HD audio codecs including AAC-LD. It picks up and plays back with no loss in sound quality, providing for smooth conversations.
2-ch echo canceller
The PJP-EC200 is equipped with a dual-channel adaptive echo canceller. Since the echo canceller parameters for each channel can be adjusted separately, the echo canceller works effectively even when two different types of microphones (such as boundary and handheld microphones) are used, or when the microphones are separated.
2-ch mixing
The built-in 2-channel mixer enables you to directly connect up to two microphones to the PJP-EC200. An external mixer is required only when three or more microphones are needed.
Feedback suppressor
The PJP-EC200 also includes a feedback suppressor-type howling canceller for large meetings or conferences. For example, an instructor giving a remote lecture or seminar can use it to stop feedback in the PA system at the live venue. Of course it also functions as a stand-alone feedback suppressor.

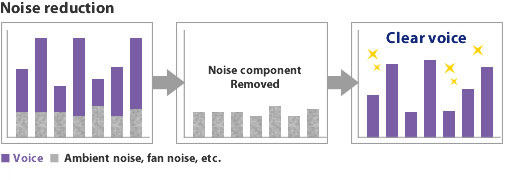

Even when next to a projector, noise reduction eliminates the sound of the fan
The built-in noise reduction eliminates noise even in rooms with constant sound such as from projectors and air conditioners. Noise is removed from the ambient sound picked up by the microphones. The listener hears only clear voices. In addition, the PJP-EC200 can remove noises from sounds received from the other end of a call. It produces clear voices even if the other device does not support noise reduction
Auto gain controller
Automatically adjusts the pickup gain to keep the volume of picked up sounds constant.
Because it cleverly minimizes the volume differences caused by distances between talkers and their microphones, users can concentrate on the conference without paying attention to the position of the microphone.
Auto analyzer
The auto analyzer function automatically enters the microphone-speaker distance and feedback suppressor (notch filter) settings that are best suited for the operating environment.
It optimizes the unit’s audio settings to minimize feedback, and corrects microphone-speaker audio delay which often happens in large rooms.

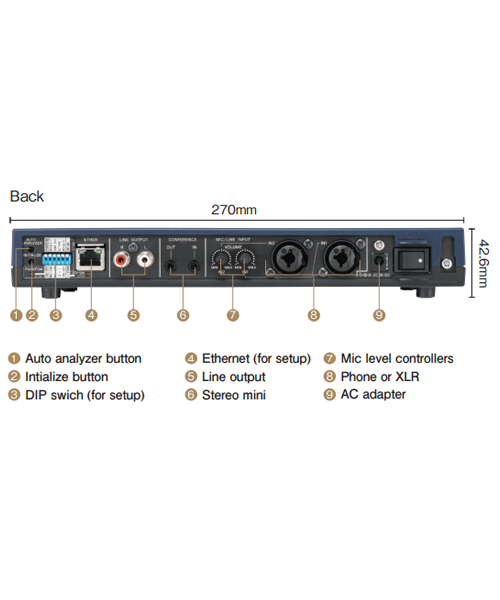

DIP switch
By using the DIP switch on the rear panel of the PJP-EC200 in combination with the auto analyzer function, users can easily configure the unit’s settings. No PC connection is required.
GUI setup
With an Ethernet connection, users can remotely enter detailed settings on a PC via a network.
YAMAHA PJP-EC200
| Interfaces | LINE OUTPUT (L/R): Stereo RCA pin-jacks, CONFERENCE (IN/OUT): Stereo mini jacks, MIC/LINE INPUT: XLR/PHONE combo jacks, 2 ch (48-V phantom power supply supported) |
| Maximum power consumption | 6 W or less |
| Radio interference standard | VCCI Class A, |
| Operating environment | Operating temperature: 0°C to 40°C, Operating humidity: 15% to 85% (no condensation) |
| Weight | 753 g (excluding power adapter) |
| Dimensions | 270 (W) x 42.6 (H) x 180 (D) mm (not including cables and terminals) |
| Power supply | AC 100 to 240 V (50/60Hz) |
| Accessories | AC adapter x 1, Power cable x 1,CD-ROM x 1, Installation/Setup Manual x 1 |
Audio
| Frequency range | 100 to 20,000 Hz |
| Signal processing | Adaptive echo canceller / Feedback suppressor / Noise reduction / Auto gain controller |
| Arrival time of direct sound | 120 ms maximum |
| Echo cancelling time | 400 ms maximum |
| Echo cancelling capacity | 60 dB maximum |
| Noise reduction | 17 dB maximum |
Input specifications
| Terminal | Specification | Input level | Input impedance | |
| Rated input level | Maximum input level | |||
| MIC/LINE INPUT (IN1/IN2) | XLR, balanced. IN 1 & 2 (MIC) | -60 dBu to -20 dBu |
-6 dBu | 3 kΩ 50 to 600 Ω Mics/Lines |
| XLR, balanced, IN 1 & 2 (LINE) | -30 dBu to +10 dBu |
+20 dBu | ||
| PHONE, unbalanced, IN 1 & 2 (MIC) | -60 dBu to -20 dBu |
-6 dBu | 2.4 kΩ | |
| PHONE, unbalanced, IN 1 & 2 (LINE) | -30 dBu to +10 dBu |
+20 dBu | ||
| CONFERENCE IN | Mini jack, unbalanced | -7.8 dBu | 0dBu | 15kΩ |
The XLR jacks support phantom power (+48 V)
0 dBu = 0.775 Vrms, 0dBV = 1 Vrms
Output specifications
| Terminal | Specification | Output level | Output impedance | |
| Rated output level | Maximum output level | |||
| MAIN OUT | RCA pin jack, unbalanced, | -10 dBV | -3 dBV | 600Ω |
| CONFERENCE OUT | Mini jack, unbalanced, CONF.OUT (LINE) | -10 dBV | -3 dBV | 600Ω |
| Mini jack, unbalanced, CONF.OUT (MIC) | -30 dBV | -23 dBV | 600Ω | |
0 dBu = 0.775 Vrms, 0dBV = 1 Vrms
The PJP-EC200 is a high-performance echo canceller box that enables smooth simultaneous talk during a video or web conference.
