| General specifications |
| Speaker type |
2way Coaxial type, Acoustic Suspension |
2way Coaxial type, Acoustic Suspension |
2way Coaxial type, Acoustic Suspension |
2way Coaxial type (without backcan) |
2way Coaxial type (without backcan) |
2way Coaxial type (without backcan) |
| Frequency range (-10dB) |
96 Hz – 20 kHz (Half-space: 2π) |
104 Hz – 20 kHz (Half-space: 2π) |
121 Hz – 20 kHz (Half-space: 2π) |
52 Hz – 20 kHz (Half-space: 2π) |
63 Hz – 20 kHz (Half-space: 2π) |
85 Hz – 20 kHz (Half-space: 2π) |
| Nominal coverage |
110° conical (Half-space: 2π) |
120° conical (Half-space: 2π) |
160° conical (Half-space: 2π) |
110° conical (Half-space: 2π) |
120° conical (Half-space: 2π) |
160° conical (Half-space: 2π) |
| Components |
LF |
8” Cone |
6.5” Cone |
4” Cone |
8” Cone |
6.5” Cone |
4” Cone |
| HF |
1″ Soft dome |
0.8″ Soft dome |
0.8″ Film dome |
1″ Soft dome |
0.8″ Soft dome |
0.8″ Film dome |
| Power rating |
NOISE |
25 W |
25 W |
15 W |
25 W |
25 W |
15 W |
| PGM |
50 W |
50 W |
30 W |
50 W |
50 W |
30 W |
| PEAK |
100 W |
100 W |
60 W |
100 W |
100 W |
60 W |
| Nominal impedance |
16 Ω |
16 Ω |
16 Ω |
16 Ω |
16 Ω |
16 Ω |
| Transformer taps |
100V |
12 W, 6 W, 3 W |
12 W, 6 W, 3 W |
6 W, 3 W, 1.5 W |
12 W, 6 W, 3 W |
12 W, 6 W, 3 W |
6 W, 3 W, 1.5 W |
| 70V |
12 W, 6 W, 3 W, 1.5 W |
12 W, 6 W, 3 W, 1.5 W |
6 W, 3 W, 1.5 W, 0.8 W |
12 W, 6 W, 3 W, 1.5 W |
12 W, 6 W, 3 W, 1.5 W |
6 W, 3W, 1.5 W, 0.8 W |
| SPL |
Sensitivity (1W; 1m on axis) |
91 dB SPL (Half-space 2π) |
89 dB SPL (Half-space:2π) |
88 dB SPL (Half-space:2π) |
91 dB SPL (Half-space 2π) |
89 dB SPL (Half-space: 2π) |
88 dB SPL (Half-space: 2π) |
| Peak (Calculated) |
111 dB SPL (Calculated, 1 m) |
109 dB SPL (Calculated, 1 m) |
106 dB SPL (Calculated, 1 m) |
111 dB SPL (Calculated, 1 m) |
109 dB SPL (Calculated, 1 m) |
106 dB SPL (Calculated, 1 m) |
| I/O connectors |
Euroblock (4 pin) ×1 (input: +/ – , loop – thru: +/ – ), Wire size : Min. AWG24 (0.2 sq), Max. AWG12 (3.5 sq) |
Euroblock (4 pin) ×1 (input: +/ – , loop – thru: +/ – ), Wire size : Min. AWG24 (0.2 sq), Max. AWG12 (3.5 sq) |
Euroblock (4 pin) ×1 (input: +/ – , loop – thru: +/ – ), Wire size : Min. AWG24 (0.2 sq), Max. AWG12 (3.5 sq) |
Push terminal (WAGO 294 /2 pin) × 1, Wire size : Solid conductor Min. AWG18 (0.75 sq) / Max. AWG12 (3.5 sq), Standard conductor Min. AWG18 (0.75 sq) / Max. AWG14 (2 sq) |
Push terminal (WAGO 294 /2 pin) × 1, Wire size : Solid conductor Min. AWG18 (0.75 sq) / Max. AWG12 (3.5 sq), Standard conductor Min. AWG18 (0.75 sq) / Max. AWG14 (2 sq) |
Push terminal (WAGO 294 /2 pin) × 1, Wire size : Solid conductor Min. AWG18 (0.75 sq) / Max. AWG12 (3.5 sq), Standard conductor Min. AWG18 (0.75 sq) / Max. AWG14 (2 sq) |
| Protection circuit |
Load protection |
Full-range power limiting to protect network and transducers |
Full-range power limiting to protect network and transducers |
Full-range power limiting to protect network and transducers |
Full-range power limiting to protect network and transducers |
Full-range power limiting to protect network and transducers |
Full-range power limiting to protect network and transducers |
| Finish |
VC8B: Black (approx. Munsell N3), VC8W: White (approx. Munsell N9.3) |

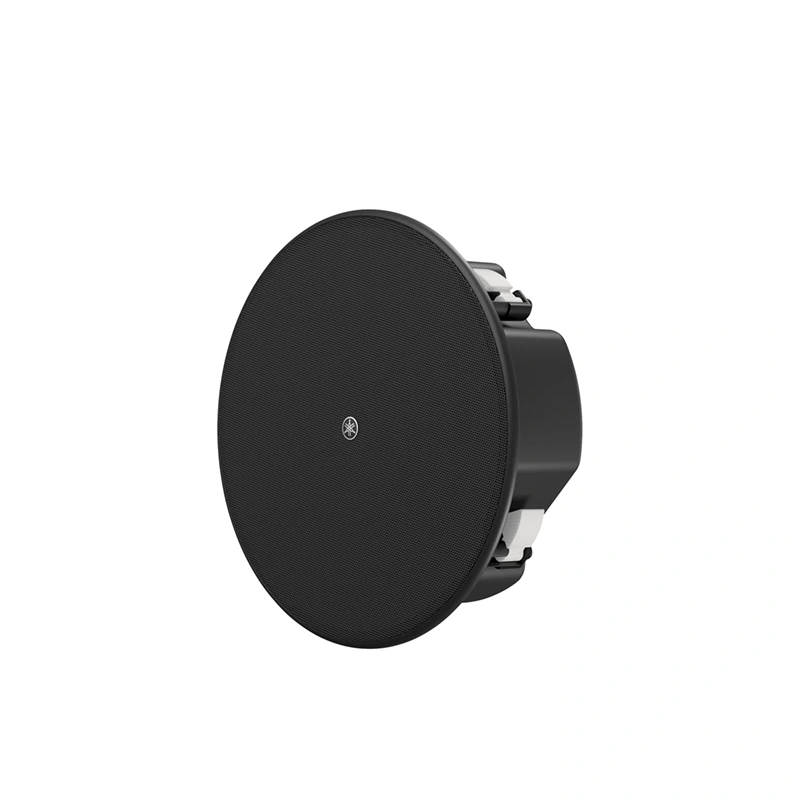

VC6B: Black (approx. Munsell N3), VC6W: White (approx. Munsell N9.3) |
VC4B: Black (approx. Munsell N3), VC4W: White (approx. Munsell N9.3) |
VC8NB: Black (approx. Munsell N3), VC8NW: White (approx. Munsell N9.3) |
VC6NB: Black (approx. Munsell N3), VC6NW: White (approx. Munsell N9.3) |
VC4NB: Black (approx. Munsell N3), VC4NW: White (approx. Munsell N9.3) |
| Dimensions |
Diameter |
325 mm (12 – 3/4″) |
286 mm (11 – 2/8″) |
225 mm (8 – 7/8″) |
325 mm (12 – 3/4″) |
286 mm (11 – 2/8″) |
225 mm (8 – 7/8″) |
| D |
122 mm (4 – 6/8″) |
106 mm (4 – 1/8″) |
95 mm (3 – 3/4″) |
131 mm (5 – 1/8″) |
114 mm (4 – 4/8″) |
103 mm (4 – 1/16″) |
| Net weight |
4.2 kg (9.3 lbs) |
3.3 kg (7.3 lbs) |
2.1 kg (4.6 lbs) |
2.8 kg (6.2 lbs) |
2.3 kg (5.1 lbs) |
1.4 kg (3.1 lbs) |
| Cutout size |
Ø285 mm (Ø11 – 1/4″) |
Ø247 mm (Ø9 – 3/4″) |
Ø186 mm (Ø7 – 5/16″) |
Ø285 mm (Ø11 – 1/4″) |
Ø247 mm (Ø9 – 3/4″) |
Ø186 mm (Ø7 – 5/16″) |
| Required ceiling board thickness |
2 mm – 37 mm |
2 mm – 37 mm |
2 mm – 37 mm |
2 mm – 37 mm |
2 mm – 37 mm |
2 mm – 37 mm |
| Accessories |
C-Ring, Tile Rails x 2, Grille, Safety wire, Cutout template, Owner’s Manual |
C-Ring, Tile Rails x 2, Grille, Safety wire, Cutout template, Owner’s Manual |
Grille, Safety wire, Cutout template, Owner’s Manual |
C-Ring, Tile Rails x 2, Grille, Safety wire, Cutout template, Owner’s Manual |
C-Ring, Tile Rails x 2, Grille, Safety wire, Cutout template, Owner’s Manual |
Grille, Safety wire, Cutout template, Owner’s Manual |
| Packaging |
Single package |
Single package |
Single package |
Single package |
Single package |
Single package |
| Certificate |
UL1480A, UL2043, NFPA70, CE, RoHS |
UL1480A, UL2043, NFPA70, CE, RoHS |
UL1480A, UL2043, NFPA70, CE, RoHS |
CE, RoHS |
CE, RoHS |
CE, RoHS |
| Options |
– |
– |
AB-C2: C-ring + Tile Rail kit |
– |
– |
AB-C2: C-ring + Tile Rail kit |
