g:HYEALINK UVC84 + CP960 กล้อง 4K PTZ Camera สำหรับห้องขนาดกลาง/ขนาดใหญ่ พร้อม Optima HD IP Conference Phone จากแบรนด์ YEALINK

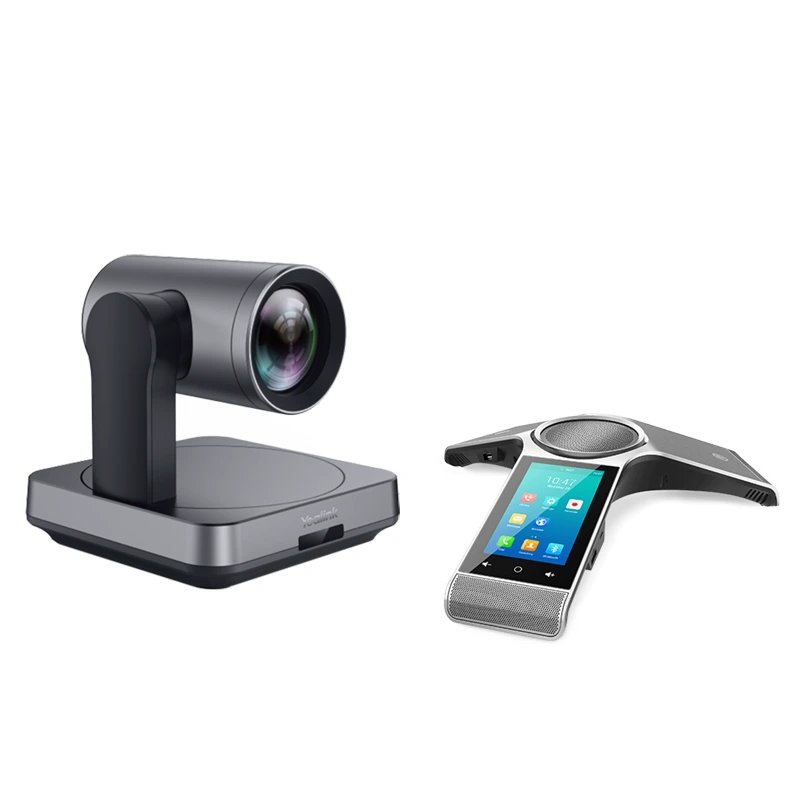

YEALINK UVC84 + CP960
4K PTZ Camera Optima HD IP Conference Phone

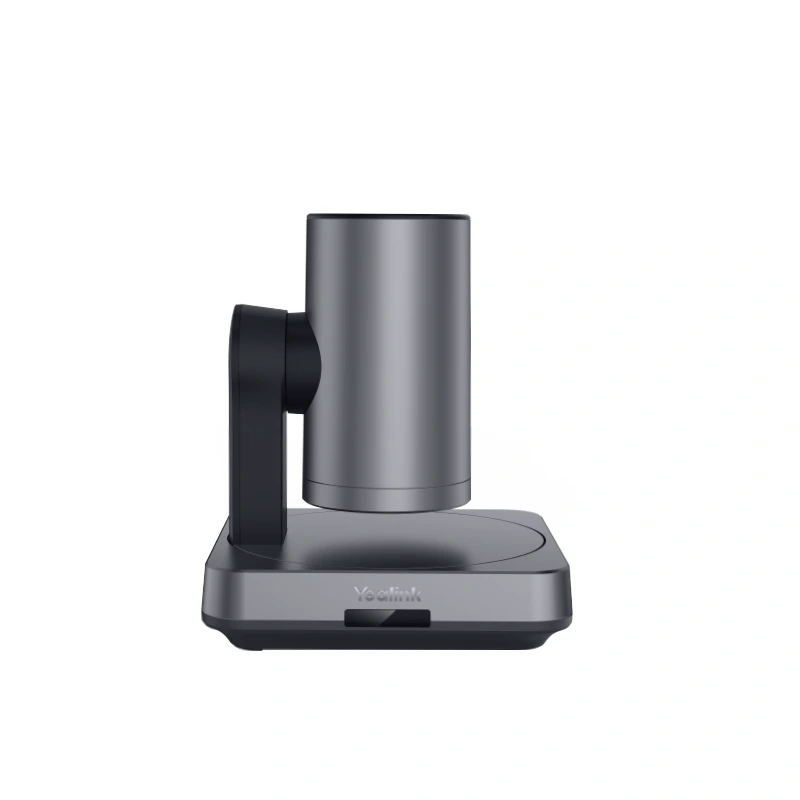

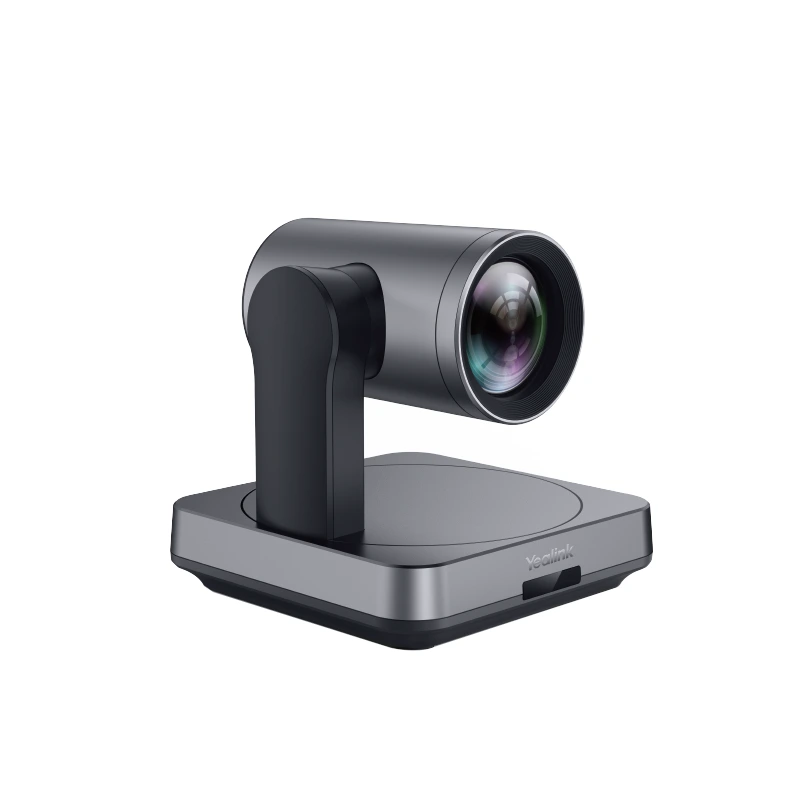

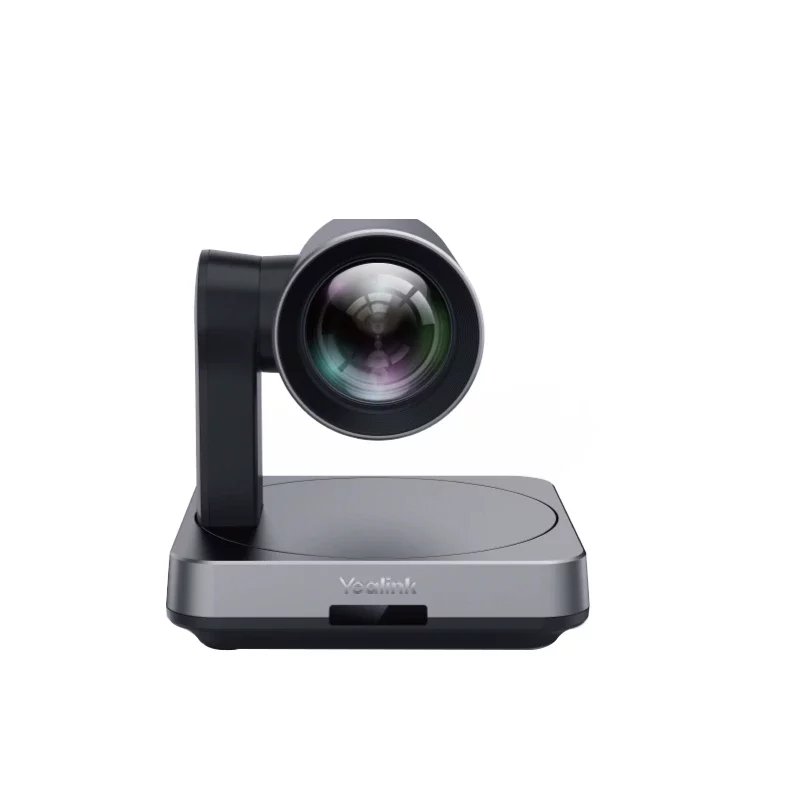

The Yealink UVC84 is a 4K PTZ camera for a medium and large room with the perfect display in everyone and every detail.
Featured 4K camera, auto framing, and integrated with audio, UVC84 delivers true-to-life communication by precisely reproducing every moment and detail. Covering a wide field of view of 80°, with mechanical pan, tilt easily done by remote control or Yealink camera control plug-in software, UVC84 brings more efficient collaboration. Moreover, the revolutionized new ID design and multiple installation options make UVC84 ideal for any professional meeting space.
4K Video,
Catch Every Detail

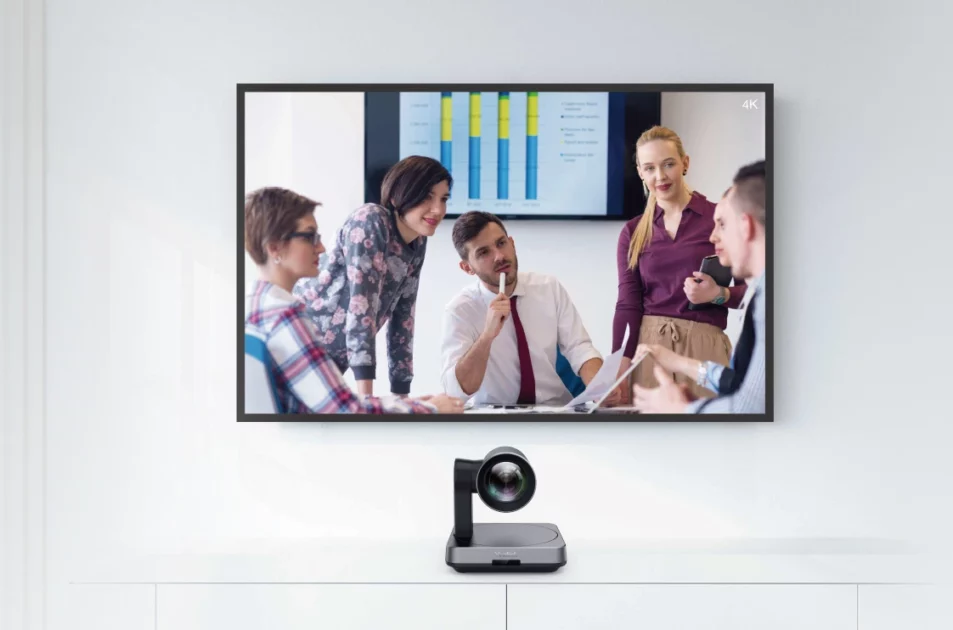

UVC84 camera delivers 4K video output with excellent sharpness and smoothness, accurately reproducing every detail, color and awarding you a vivid video experience. Seamless integration with VCM34 array microphone or VCM38 ceiling microphone, together with Yealink Soundbar, enables UVC84 to provide a wonderful audio experience also. Premium video and audio contributes to frictionless communication for all the participants in the medium or large room.
Auto Framing,
Seize Everyone
With 12x optical zoom, 3x digital zoom, and 80° field of view, UVC84 can easily cover a medium or large meeting space, ensuring everyone is seen clearly. Powered by excellent auto framing feature, UVC84 enables you free from manual PTZ control and well focus on the meeting with better efficiency.
Multiple Installations,
for Any Space

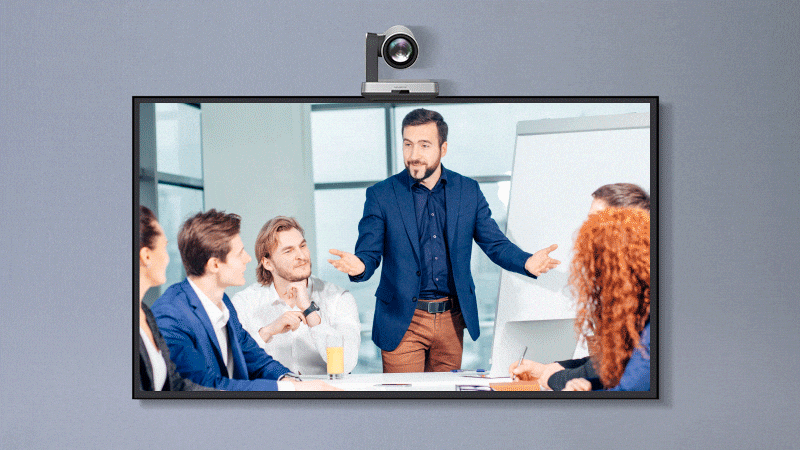

Revolutionized new ID design and multiple installation options (on a conference table, on the top of a TV, on the wall, on the ceiling, onto a TV stand or a tripod) enables UVC84 to flexibly fix any professional meeting space according to your needs. Easy set-up and USB plug and play, UVC84 is right for your meeting from the first minute you start.
สเปค
UVC84
| Features |
UVC84 |
| Picture |
 |
| UVC Protocol |
UVC 1.0 |
| Maximum Resolution |
4K |
| Maximum FPS |
60FPS |
| Video Output |
4K30, 1080p60/30,720p60/30 |
| Lens Focus Length |
f=3.9mm to 46.8mm |
| Lens Aperture (F#) |
F/1.6-F/2.8 |
| Zoom |
12x optical, 3x digital zoom |
| Field of View (Horizontal) |
73⁰ |
| Field of View (Vertical) |
45⁰ |
| Min, Illumination |
0.5 lux (in daylight),
0.1 lux (at night) |
| Signal Noise Ratio(SNR) |
>63dB |
| Auto Focus |
√ |
| Exposure |
Auto/Manual |
| White Balance (WB) |
ATW/Auto/Manual |
| Pan Range |
±100° |
| Tilt Range |
+45°, -90° |
| Shutter Speed |
1/60 ~ 1/10000 seconds |
| USB |
1 x USB2.0 Type B |
| Audio Ports |
1x Yealink Microphone port (RJ45)
1x Line-out ports |
| Power Adapter |
AC 100~240V input
DC 48V/0.7A Output |
| System Requirement |
Windows 7, Windows 10, Mac OS 10.10 or higher |
Model
| Model |
CP960 |
CP960-WirelessMic |
CP920 |
CP920+CPN10 |
CP930W |
CP860 |
| Compare |
 |
 |
 |
 |
 |
 |
| Download |
Datasheet |
Datasheet |
Datasheet |
Datasheet |
| Overview |
|
|
|
|
|
|
| Operating System |
Android 5.1 |
Linux |
Linux |
RTK-E |
Linux |
| Interface |
|
|
|
|
|
|
| LCD |
5″ 720 x 1280-pixel capacitive touch screen |
3.1″ 248 x 120-pixel graphical LCD |
3.1″ 248 x 120-pixel graphical LCD |
2.7″ 192 x 64-pixel graphical LCD |
| LCD Backlight |
√ |
√ |
√ |
√ |
| Touch Keypad |
x |
√ |
√ |
x |
| USB Port (2.0 Compliant) |
2 |
1 |
x |
1 |
| USB 2.0 Micro-B Device Port |
1(Connect to PC) |
x |
1 (Connect to PC) |
x |
| Ethernet Port |
10/100Mbps |
10/100Mbps |
x |
10/100Mbps |
| Wired MIC |
2 (Optional) |
0 |
x |
x |
√ |
| Wireless MIC |
2 (Optional) |
2 |
x |
x |
x |
| 3.5 mm Jack |
1 |
x |
x |
1 |
| Security Slot |
√ |
√ |
√ |
√ |
| Audio Features |
|
|
|
|
|
|
| HD Voice |
√ |
√ |
√ |
√ |
| Wide-Band Codecs |
G.722， G722.1C，Opus |
G.722， G722.1C，Opus |
Opus, G.722 |
G.722 |
| Narrow-Band Codecs |
G.711(A/µ), G726, G729, G723, iLBC |
G.711(A/µ), G726, G729, G723, iLBC |
G.711(A/µ), G.726, G.729, iLBC |
G.711 (A/µ), G.729AB, iLBC |
| Built-In 3-Microphone Array |
√ |
√ |
√ |
√ |
| Microphone Pickup |
20ft |
20ft |
13ft |
20ft |
10ft |
| Yealink Noise Proof Technology |
√ |
√ |
√ |
x |
| Noise Suppression |
√ |
√ |
√ |
√ |
| Connectivity |
|
|
|
|
|
|
| Built-In PoE |
IEEE 802.3af |
IEEE 802.3af |
x |
IEEE 802.3af |
| Built-In Bluetooth |
Bluetooth 4.0 |
Bluetooth 4.0 |
Bluetooth 4.0 (For mobile phone) |
x |
| Built-In Wi-Fi |
802.11a/b/g/n/ac |
802.11b/g/n |
x |
x |
| Battery |
x |
x |
Li-ion，3.6V 7800mAh |
x |
| Talk Time |
x |
x |
24h |
x |
| Standby Time |
x |
x |
360h |
x |
| Telephony Features |
|
|
|
|
|
|
| Recording |
√ (Via USB flash drive) |
√ (Via USB flash drive) |
√ (Via Micro SD card) |
√ (Via USB flash drive) |
| Five-way Conferencing |
√ |
√ |
√ |
√ |
| Create meeting directly |
√ |
x |
x |
x |
| Yealink Active Speaker |
√ |
x |
x |
x |
| Hybrid UC Meeting |
√ |
√ |
√ |
x |
| PSTN |
x |
x |
√ |
x |
√ (Via Yealink CPN10) |
| Star Connection |
√ ( up to 4 units) |
x |
x |
x |
