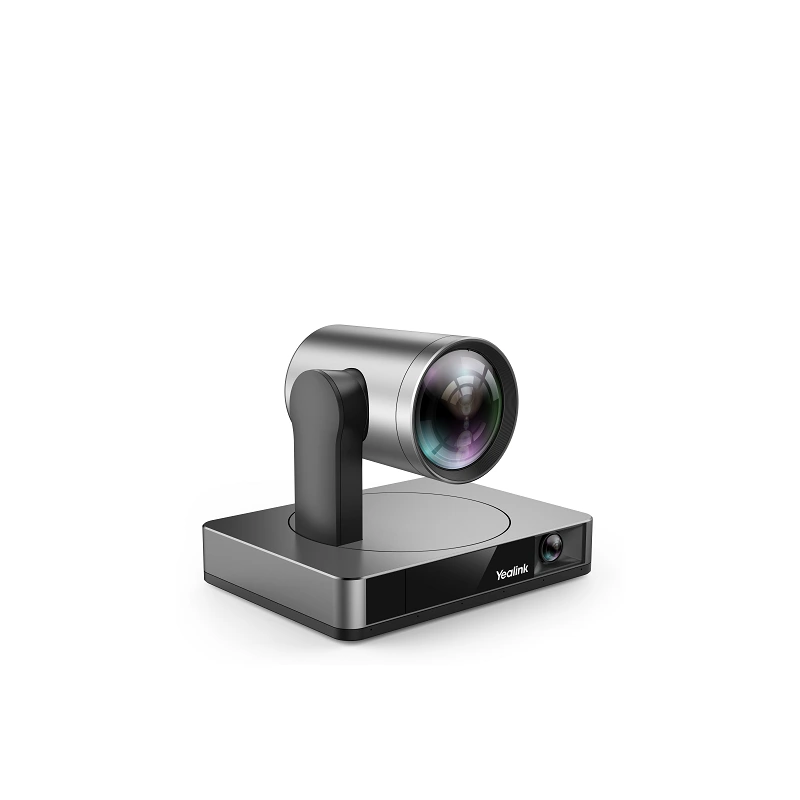

กล้อง PTZ YEALINK UVC86 สำหรับห้องประชุมออนไลน์ 4K ที่ 30 เฟรมต่อวินาที Auto Framing, Speaker Tracking และ Presenter Tracking จากแบรนด์ YEALINK
YEALINK UVC86 กล้อง PTZ สำหรับห้องประชุมออนไลน์ 4K ที่ 30 เฟรมต่อวินาที Auto Framing, Speaker Tracking และ Presenter Tracking
฿77,900 (รวม VAT 7% แล้ว)
YEALINK UVC86
ขนาด | 170 × 195 × 60 มิลลิเมตร |
---|---|
ยี่ห้อ |
สเปค
Features | UVC84 |
Picture | |
UVC Protocol | UVC 1.0 |
Maximum Resolution | 4K |
Maximum FPS | 60FPS |
Video Output | 4K30, 1080p60/30,720p60/30 |
Lens Focus Length | f=3.9mm to 46.8mm |
Lens Aperture (F#) | F/1.6-F/2.8 |
Zoom | 12x optical, 3x digital zoom |
Field of View (Horizontal) | 73⁰ |
Field of View (Vertical) | 45⁰ |
Min, Illumination | 0.5 lux (in daylight), 0.1 lux (at night) |
Signal Noise Ratio(SNR) | >63dB |
Auto Focus | √ |
Exposure | Auto/Manual |
White Balance (WB) | ATW/Auto/Manual |
Pan Range | ±100° |
Tilt Range | +45°, -90° |
Shutter Speed | 1/60 ~ 1/10000 seconds |
USB | 1 x USB2.0 Type B |
Audio Ports | 1x Yealink Microphone port (RJ45) 1x Line-out ports |
Power Adapter | AC 100~240V input DC 48V/0.7A Output |
System Requirement | Windows 7, Windows 10, Mac OS 10.10 or higher |
Model
Model | CP960 | CP960-WirelessMic | CP920 | CP920+CPN10 | CP930W | CP860 |
Compare | ||||||
Download | Datasheet | Datasheet | Datasheet | Datasheet | ||
Overview | ||||||
Operating System | Android 5.1 | Linux | Linux | RTK-E | Linux | |
Interface | ||||||
LCD | 5″ 720 x 1280-pixel capacitive touch screen | 3.1″ 248 x 120-pixel graphical LCD | 3.1″ 248 x 120-pixel graphical LCD | 2.7″ 192 x 64-pixel graphical LCD | ||
LCD Backlight | √ | √ | √ | √ | ||
Touch Keypad | x | √ | √ | x | ||
USB Port (2.0 Compliant) | 2 | 1 | x | 1 | ||
USB 2.0 Micro-B Device Port | 1(Connect to PC) | x | 1 (Connect to PC) | x | ||
Ethernet Port | 10/100Mbps | 10/100Mbps | x | 10/100Mbps | ||
Wired MIC | 2 (Optional) | 0 | x | x | √ | |
Wireless MIC | 2 (Optional) | 2 | x | x | x | |
3.5 mm Jack | 1 | x | x | 1 | ||
Security Slot | √ | √ | √ | √ | ||
Audio Features | ||||||
HD Voice | √ | √ | √ | √ | ||
Wide-Band Codecs | G.722, G722.1C,Opus | G.722, G722.1C,Opus | Opus, G.722 | G.722 | ||
Narrow-Band Codecs | G.711(A/µ), G726, G729, G723, iLBC | G.711(A/µ), G726, G729, G723, iLBC | G.711(A/µ), G.726, G.729, iLBC | G.711 (A/µ), G.729AB, iLBC | ||
Built-In 3-Microphone Array | √ | √ | √ | √ | ||
Microphone Pickup | 20ft | 20ft | 13ft | 20ft | 10ft | |
Yealink Noise Proof Technology | √ | √ | √ | x | ||
Noise Suppression | √ | √ | √ | √ | ||
Connectivity | ||||||
Built-In PoE | IEEE 802.3af | IEEE 802.3af | x | IEEE 802.3af | ||
Built-In Bluetooth | Bluetooth 4.0 | Bluetooth 4.0 | Bluetooth 4.0 (For mobile phone) | x | ||
Built-In Wi-Fi | 802.11a/b/g/n/ac | 802.11b/g/n | x | x | ||
Battery | x | x | Li-ion,3.6V 7800mAh | x | ||
Talk Time | x | x | 24h | x | ||
Standby Time | x | x | 360h | x | ||
Telephony Features | ||||||
Recording | √ (Via USB flash drive) | √ (Via USB flash drive) | √ (Via Micro SD card) | √ (Via USB flash drive) | ||
Five-way Conferencing | √ | √ | √ | √ | ||
Create meeting directly | √ | x | x | x | ||
Yealink Active Speaker | √ | x | x | x | ||
Hybrid UC Meeting | √ | √ | √ | x | ||
PSTN | x | x | √ | x | √ (Via Yealink CPN10) | |
Star Connection | √ ( up to 4 units) | x | x | x |
Model | CP960 | CP960-WirelessMic | CP920 | CP920+CPN10 | CP930W | CP860 |
Compare | ||||||
Download | Datasheet | Datasheet | Datasheet | Datasheet | ||
Overview | ||||||
Operating System | Android 5.1 | Linux | Linux | RTK-E | Linux | |
Interface | ||||||
LCD | 5″ 720 x 1280-pixel capacitive touch screen | 3.1″ 248 x 120-pixel graphical LCD | 3.1″ 248 x 120-pixel graphical LCD | 2.7″ 192 x 64-pixel graphical LCD | ||
LCD Backlight | √ | √ | √ | √ | ||
Touch Keypad | x | √ | √ | x | ||
USB Port (2.0 Compliant) | 2 | 1 | x | 1 | ||
USB 2.0 Micro-B Device Port | 1(Connect to PC) | x | 1 (Connect to PC) | x | ||
Ethernet Port | 10/100Mbps | 10/100Mbps | x | 10/100Mbps | ||
Wired MIC | 2 (Optional) | 0 | x | x | √ | |
Wireless MIC | 2 (Optional) | 2 | x | x | x | |
3.5 mm Jack | 1 | x | x | 1 | ||
Security Slot | √ | √ | √ | √ | ||
Audio Features | ||||||
HD Voice | √ | √ | √ | √ | ||
Wide-Band Codecs | G.722, G722.1C,Opus | G.722, G722.1C,Opus | Opus, G.722 | G.722 | ||
Narrow-Band Codecs | G.711(A/µ), G726, G729, G723, iLBC | G.711(A/µ), G726, G729, G723, iLBC | G.711(A/µ), G.726, G.729, iLBC | G.711 (A/µ), G.729AB, iLBC | ||
Built-In 3-Microphone Array | √ | √ | √ | √ | ||
Microphone Pickup | 20ft | 20ft | 13ft | 20ft | 10ft | |
Yealink Noise Proof Technology | √ | √ | √ | x | ||
Noise Suppression | √ | √ | √ | √ | ||
Connectivity | ||||||
Built-In PoE | IEEE 802.3af | IEEE 802.3af | x | IEEE 802.3af | ||
Built-In Bluetooth | Bluetooth 4.0 | Bluetooth 4.0 | Bluetooth 4.0 (For mobile phone) | x | ||
Built-In Wi-Fi | 802.11a/b/g/n/ac | 802.11b/g/n | x | x | ||
Battery | x | x | Li-ion,3.6V 7800mAh | x | ||
Talk Time | x | x | 24h | x | ||
Standby Time | x | x | 360h | x | ||
Telephony Features | ||||||
Recording | √ (Via USB flash drive) | √ (Via USB flash drive) | √ (Via Micro SD card) | √ (Via USB flash drive) | ||
Five-way Conferencing | √ | √ | √ | √ | ||
Create meeting directly | √ | x | x | x | ||
Yealink Active Speaker | √ | x | x | x | ||
Hybrid UC Meeting | √ | √ | √ | x | ||
PSTN | x | x | √ | x | √ (Via Yealink CPN10) | |
Star Connection | √ ( up to 4 units) | x | x | x |
