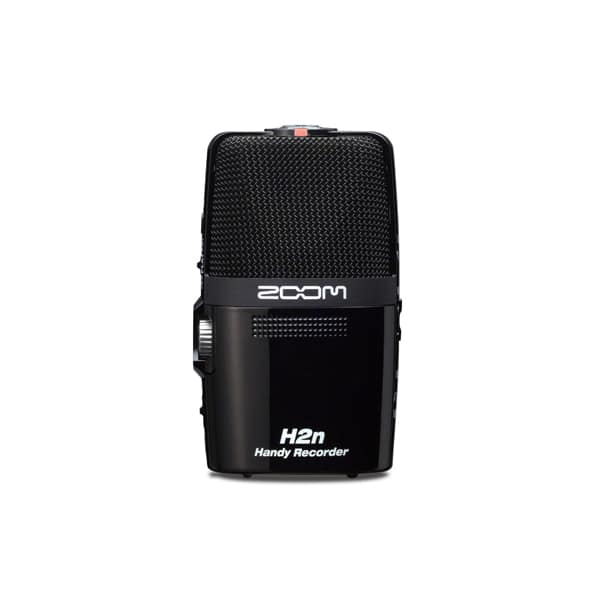

ZOOM H2N Handy Recorder
The H2n Handy Recorder is the only portable recording device to come with five built-in microphones and four different recording modes: X/Y, Mid-Side, 2-channel surround and 4-channel surround. Other advanced features include automatic gain control and onboard MS decoding, plus effects like compression, limiting and low cut filtering. You can even use the H2n as a multi-purpose USB microphone!
Using the H2n
With its multiple microphones and recording modes, the H2n can handle just about every kind of application. Here are just a few ways it can be used:
- Live recording of concerts and rehearsals, in either stereo or surround sound
- Location videography—the H2n gives you plenty of options in postproduction
- Creating audio for YouTube videos
- Generating lasting audio documents of important events
- As a USB microphone providing input to recording software

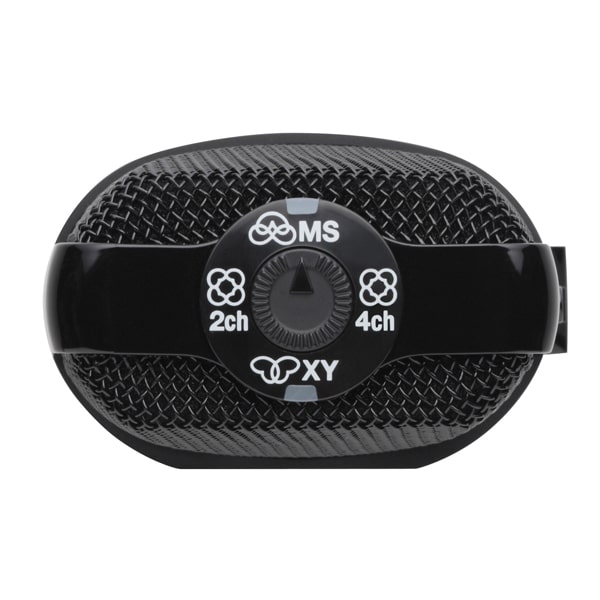

Five microphones, four ways of recording

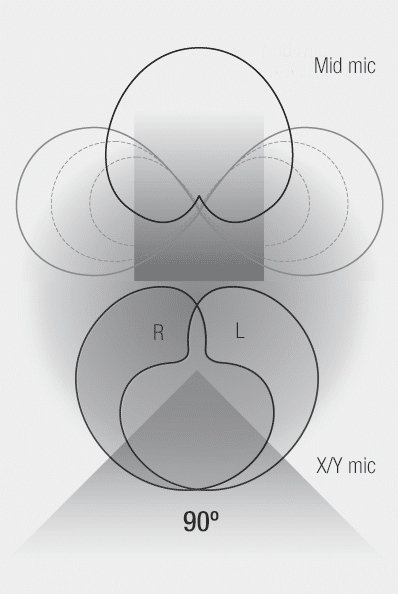

The H2n offers not one, not two, but five built-in microphones. Two of them are arranged as an X/Y pair, while the other three are configured in an MS (“Mid-Side”) pattern. They can be used separately for X/Y or MS stereo recording, or combined to create stunning 2- or 4-channel surround sound.
Mid-Side for variable stereo width
Mid-Side recording is an incredible technique that allows you to actually adjust the width of the stereo image after it has been recorded, while maintaining perfect mono compatibility, making it especially useful for film, video and television projects.
The three microphone elements in the H2n MS mic are set directly on top of one another. One faces forward and the other two face to the side:

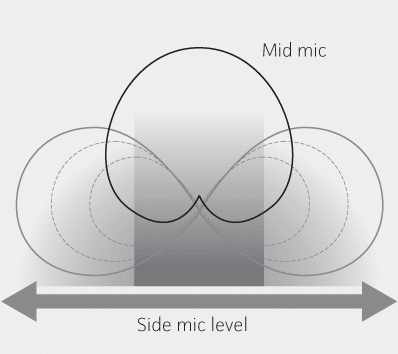

The H2n’s onboard MS decoder allows you to adjust the relative level of the mic elements, either during the recording process or afterwards, during post-production. As you increase the level of the Side microphones, the perceived stereo width increases as well.
X/Y for natural-sounding stereo
The X/Y technique provides a great way to cover a wide area while still capturing sound sources in the center with clarity and definition, making it perfect for all types of live stereo recording.

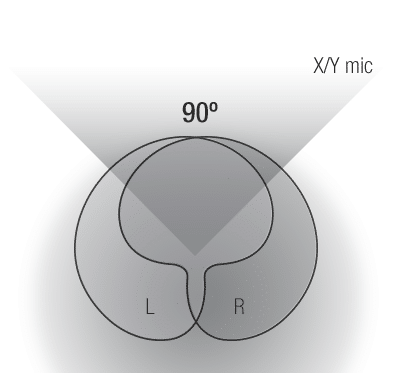

The H2n’s built-in X/Y microphone provides two matched unidirectional microphones set at a 90 degree angle relative to one another, optimum for most stereo recording applications.
Surround sound for lifelike realism
The H2n allows you to combine the signals from both the X/Y and MS microphones in order to create surround sound recordings of everything you hear—not just those sounds coming from in front of you, but from all directions.
Use 2ch mode to create a single stereo file of the combined mics, or 4ch mode to record the signal from the H2n’s X/Y mics onto one stereo track and signal from the MS mics onto another. The resulting pair of tracks can then be routed to separate speakers for an immersive listening experience or can be blended into a custom stereo track. In addition, the H2n’s MS decoding feature can be used to independently alter the level of the Side signal in both 2ch and 4ch modes.
Spatial Audio for VR
The Zoom H2n is the only handheld recorder that captures
four-channel surround sound audio. With Firmware v 2.00,
it’s perfect for the creation of 360-degree “Spatial Audio”
files, the next-generation surround sound format native to
the google JUMP Virtual Reality Platform.
Using “Spatial Audio” mode, you can create a single
four-channel, multi-track WAV file that includes Omni,
Left/Right, and Forward/Backward tracks. This Spatial Audio
file is then ready to be combined with 360-degree VR videos
recorded with the google JUMP compatible camera rig (such
as the GoPro Odyssey or Ricoh Theta). Once completed, the
immersive videos are ready to upload to YouTube.
Note: Viewers using the YouTube Android app on Android
version 4.2 or higher can listen to spatial audio on
headphones (recommended) or speakers.
Additional information regarding H2n and Spatial Audio for VR:
ZOOM H2N The Ins and Outs

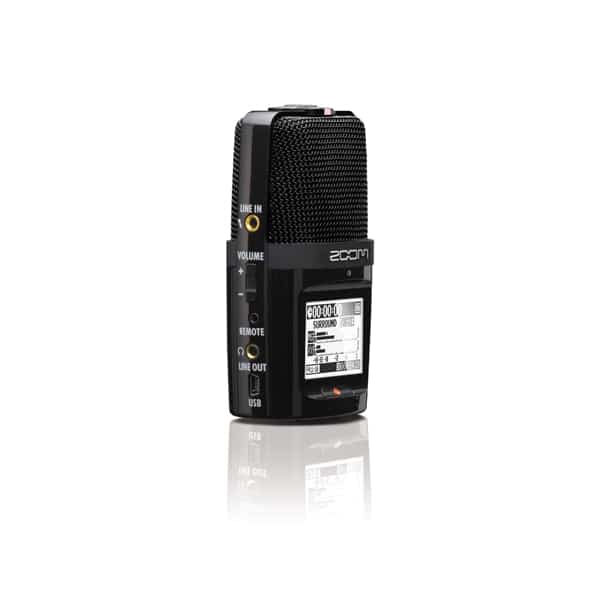

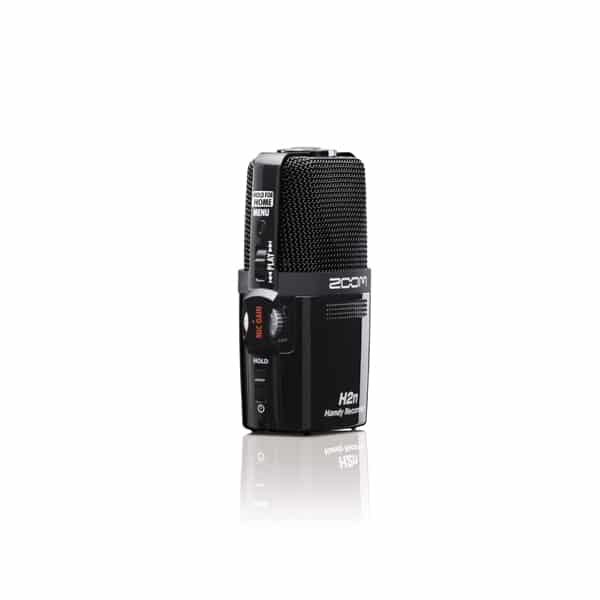

The H2n Line In is a stereo ⅛” mini phone jack that can accept two channels of mic- and/or line-level signals. Condenser microphones requiring Plug-In Power (2.5 volts) can be connected to this jack. An analog-type Mic Gain dial allows you to manually set input level, or you can choose one of the three Auto Gain presets to automatically set the optimum recording level.
The H2n Line Out is a stereo ⅛” phone jack with dedicated volume control. Headphones can be connected to this jack for private monitoring of the input or recorded signal. There’s also a built-in speaker on the back panel for fast monophonic monitoring of the recorded signal without the need to make any connections.
The H2n USB port provides a digital output of the stereo mix and allows data to be sent to and from your computer. From there, it can be imported into editing software such as the supplied WaveLab LE. USB also enables the H2n to be used as a 4-in/2-out audio interface or as a USB microphone.
ZOOM H2N Pre-Record, Auto-Record and Data Recovery
The interview started a split-second before you were ready. The conductor lifted his baton just as you were checking a cable. The talent went back on-air a moment too soon.
No problem… as long as you’re using an H2n. Its Pre-record function automatically keeps the H2n silently but continuously recording in the background, all the time, keeping the previous two seconds* when you hit RECORD.
*One second when recording in 4ch surround mode at a 96 kHz sampling rate.
Auto-Record allows the H2n to automatically start recording when a certain level of sound is detected. As soon as an incoming signal exceeds the Start Level you’ve set, recording begins. There’s an equivalent Auto-record Stop function, too; as soon as incoming signal drops below the Stop Level you’ve set, recording ends.
The H2n’s Data Recovery feature automatically repairs corrupted files—something that can happen if power is interrupted during recording or if an SD card is removed during a writing or editing procedure.
The H2n provides an arsenal of effects that allow you to add polish to your recordings and compensate for any problems or limitations in the acoustics of the recording environment.

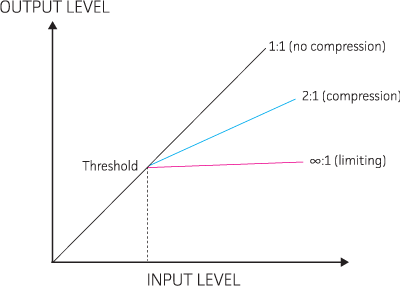

Compression and limiting can be used to control fluctuations in level, acting like an automatic volume control. The main difference between the two is that a limiter reduces louder sounds more severely.
A low-cut filter removes signal below a designated frequency. This is useful for eliminating pops, wind noise, blowing, and other kinds of low frequency rumble such as transmitted resonance from an onstage mic stand.
There’s also an onboard metronome and chromatic / guitar / bass tuner. In addition, playback can be looped and the playback speed varied without pitch change (or vice versa) to facilitate phrase training.
ZOOM H2N File types supported
The H2n can record audio in two different basic file types: WAV and MP3. The main difference between the two is that WAV files are uncompressed; that is, they contain all the recorded signal without any data being removed. The WAV files recorded by the H2n can be either 16- or 24-bit, with sampling rates of 44.1, 48, or 96 kHz, and are automatically time-stamped, making them Broadcast Wave Format (BWF) compliant—especially important when recording audio for video since it allows for precise synchronization in post-production.
MP3 recordings are compressed, which means that some unnecessary data is removed prior to storage, making them much smaller than WAV files, and thus much easier to upload and download. Some MP3 files exhibit a slight loss of audio fidelity as compared with the original signal; however, this is not noticeable in all circumstances.
The H2n allows you to easily convert WAV files to MP3 format and you can use its internal mixer to mix down the pair of stereo files created in 4ch surround to stereo, with independent control over each track’s level and panning.
- Five built-in microphones and four recording modes: Mid-Side (MS) stereo, 90° X/Y stereo, and both 2-channel and 4-channel surround
- Analog-type input gain control
- Auto Gain provides three preset recording levels
- Stereo ⅛” Mic/Line In mini phone jack with Plug-in power (2.5V)
- Stereo ⅛” Phone/Line Output jack with dedicated volume control
- Built-in reference speaker for fast monitoring
- Large 1.8 inch backlit LCD display
- Records directly to SD and SDHC cards up to 32 GB
- Supports up to 24-bit/96 kHz audio in BWF-compliant WAV or a variety of MP3 formats
- Auto-record and Pre-record features
- WAV to MP3 conversion
- Internal mixdown: four-track surround to stereo
- Up to 99 marks per recording
- Built-in effects, including compression/limiting and low-cut filtering
- Onboard MS decoding
- Normalize and Divide functions
- Chromatic tuner and metronome
- Loop playback with user-defined start and stop points
- Variable playback speed, from 50% to 150% for phrase training
- Variable pitch without affecting playback speed
- USB port for data exchange to and from computer and use as a USB microphone
- 4-in/2-out USB audio interface for PC/Mac computers
- SD card reader function
- Data recovery function automatically saves data if power fails or card is removed
- Mounts directly to tripod or DSLR
- Runs on only 2 standard AA alkaline or NiMH rechargeable batteries, or AC adapter (AD-17, USB to AC type)
- Over 20 hours of operation with 2 AA alkaline batteries
|Recording media:||16MB–2GB SD cards, 4GB–32GB SDHC cards|
|Built-in memory:||Up to 1 minute in 96kbps MP3 format
(Recording overwrites any previous recording in memory)
|Mic arrangements:||90˚ X/Y stereo, MS stereo with adjustable side mic level|
|Recording modes:||MS, XY, MS+XY (2ch), MS+XY (4ch)|
|Microphone types:||Directional (XY, MS mid mics)
Bidirectional (MS side mic)
|Maximum sound pressure input:||120 dB spl (directional)
122 dB spl (bi-directional)
|Stereo uncompressed PCM:||44.1 / 48 / 96kHz, 16 / 24bit WAV (BWF)|
|Compressed MP3 (recording):||44.1kHz, 48kHz
56 /64/80/96/112/128/160/192/ 224/256/320kbps
(Not compatible with MS-RAW recording)
|Compressed MP3 (playback):||44.1kHz, 48kHz
|4ch uncompressed PCM:||44.1 / 48 / 96kHz, 16 / 24bit WAV (BWF)
(Two stereo files for each recording)
|A/D conversion:||24-bit 128× oversampling|
|D/A conversion:||24-bit 128× oversampling|
|Recording time (2GB card):||3:08:00 (44.1kHz/16bit WAV), 34:43:00 (128kbps MP3)|
|Lo cut:||80Hz high-pass filter|
|Comp/Limiter:||3 types of compressors and 3 types of limiters|
|Auto gain:||Automatic input gain adjustment (3 levels)|
|Pre rec:||2 seconds of pre-recording|
|Auto rec:||Automatic recording start/stop, continuous standby|
|Tuner:||Chromatic, guitar, bass and alternate (A/E/G/D/DADGAD) tunings with automatic string detection|
|Metronome:||40–250 BPM range, five tones, pre-count|
|Speed:||Playback speed adjustable between 50–150%|
|Key control:||Playback pitch adjustable ±6 semitones
(Cannot be used with 96kHz files)
|AB repeat:||Repeats playback between selected points in a file|
|File divide:||Divides a file into two|
|File normalize:||Maximizes file volume
(Cannot be used with MP3s)
|File MP3 encode:||Converts WAV files to MP3 formats at fixed bit rates|
|Mark:||Up to 99 marks
(WAV files only)
|Surround mixer:||Adjusts mix balance when playing back 4ch surround recordings|
|Display graphic:||128×64 pixels backlit LCD|
|Input gain:||0 to +39 dB|
|Input jack:||Line/mic stereo mini jack with plug-in power
2 kΩ impedance at input levels of 0 to –39 dBm
|Output jack:||Line/headphone stereo mini jack|
|Rated output level:||−10 dBm (output impedance 10 kΩ or more)|
|Headphones:||20 mW + 20 mW (into 32 Ω load)|
|Built-in speaker:||400mW, 8Ω, mono|
Card reader operation
|USB 2.0 high speed:||Audio interface operation|
|USB 1.0 full speed:||Supports 44.1 / 48kHz sampling rates and 16-bit rate
USB bus power operation supported
|Power:||Two AA batteries, AD-17 USB to AC adapter (DC 5V 1A)
Continuous operation of 20 or more hours when recording 44.1kHz/16-bit WAV files using alkaline batteries
|Physical features:||Tripod mounting socket, strap attachment|
|Dimensions:||67.6mm (W) × 113.85mm (H) × 42.7mm (D)|
|Weight:||130 g (without batteries)|
