AVONIC CM73-IP-B PTZ Camera 30x Zoom Black
PTZ Camera 30x Zoom Black

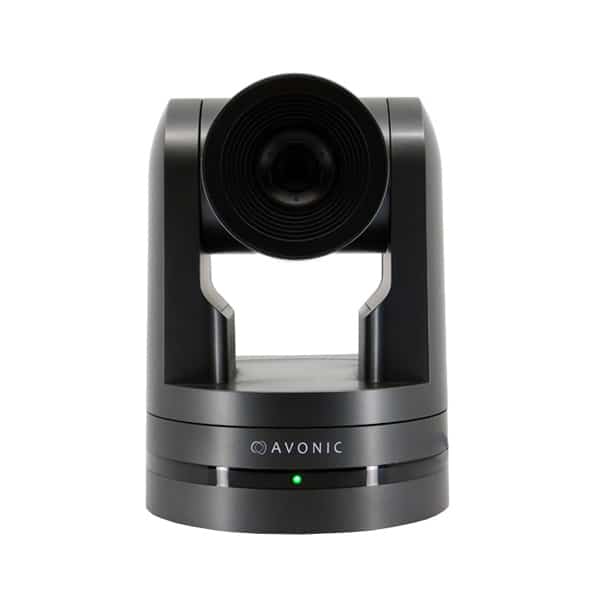

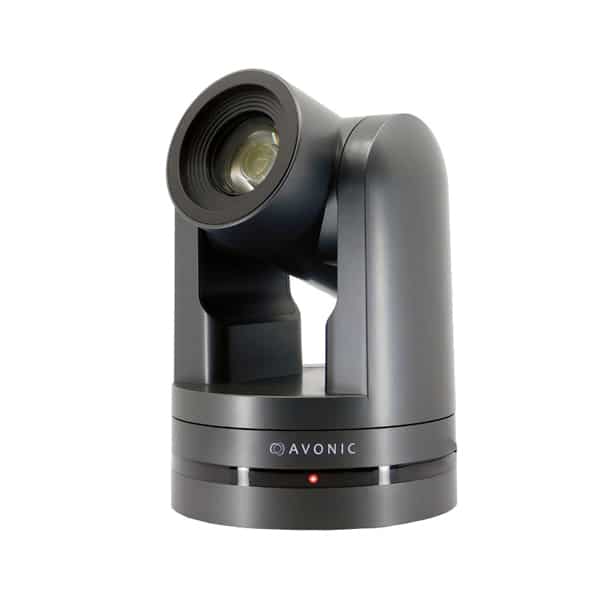

The Avonic AV-CM73-IP-B is a high quality 30x optical zoom PTZ camera, with concurrent HDMI, 3G-SDI, USB 2.0 and IP stream ethernet outputs. The camera is designed for fixed installations in less than optimal light conditions. The CM73-IP includes a rich feature set usually found on broadcast-grade cameras, including a user-adjustable Colour Matrix and SRT streaming (licensed premium functions). The CM73-IP has the ability to deliver outstanding quality under low light conditions, thanks to its high SNR CMOS sensor. The sensor delivers Full HD 1080p60 video.
คุณสมบัติ
Lens
- High-quality glass lens, 30x optical zoom and 58.9° horizontal field of view.
Low light
- High SNR CMOS combined with digital noise reduction for a clear picture even under very low light conditions.

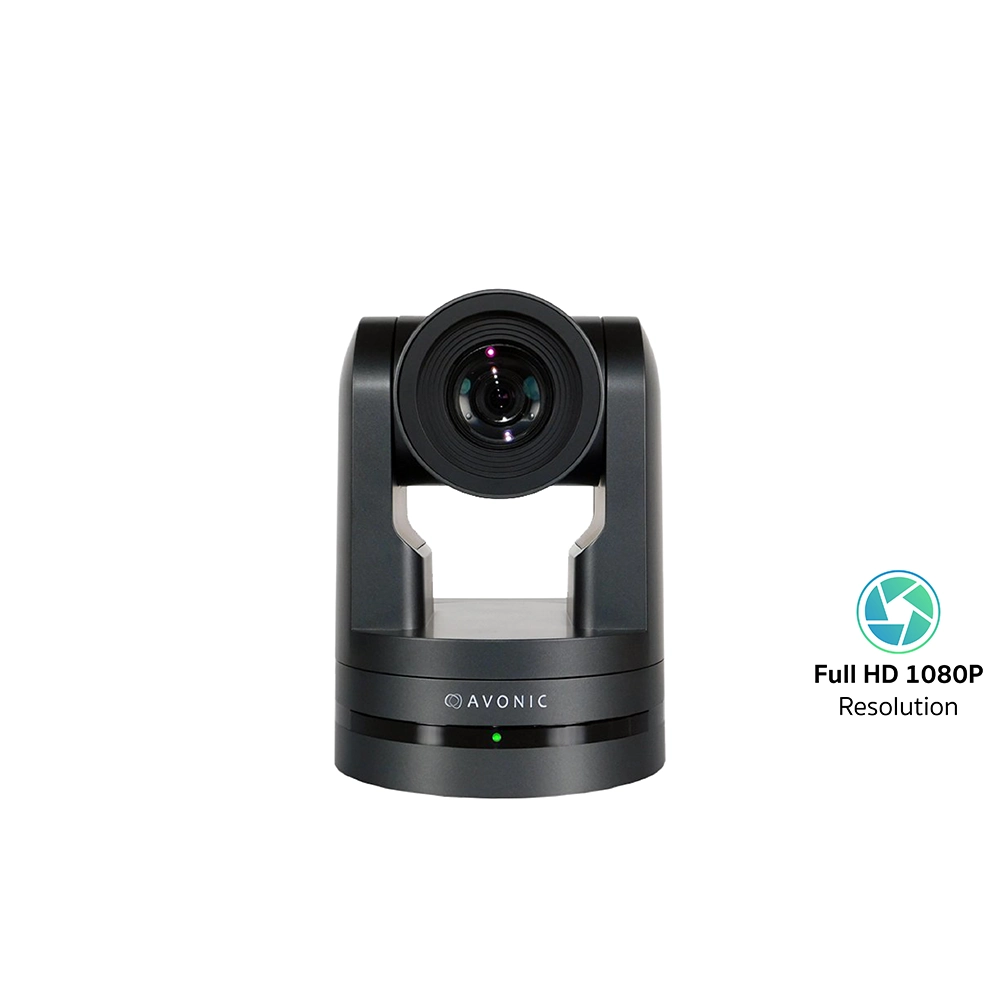

Full HD 1080p60
- The camera has a Full HD resolution of 1920 x 1080p60 and achieves a pristine image quality.
IP-features
- The camera can be powered using PoE (802.3af) and can be accessed by webGUI, controlled by VISCA over IP/ Onvif
and stream the video.
DUAL low latency IP-Stream
- H265, H264, optional SRT and MJPEG compression at a bitrate up to 40Mbit enabling Full HD video stream by
ultra-low latency over RTSP, RTMP, UDP, Unicast and Multicast.

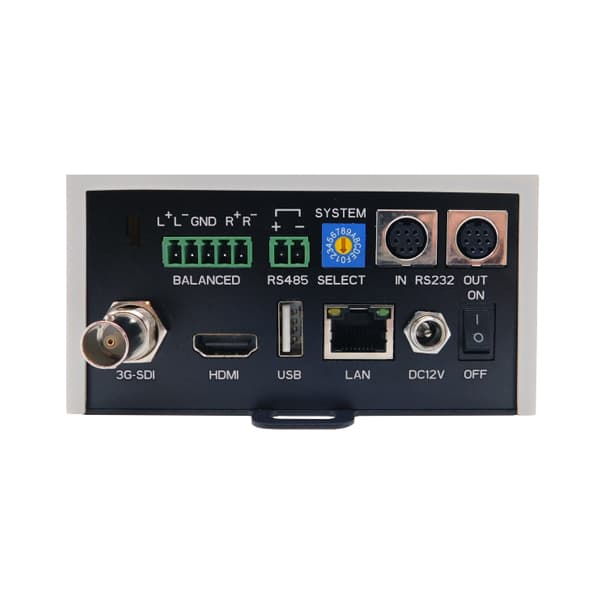

Outputs
- 3G-SDI, HDMI, USB 2.0 (1080p30) and IP.
Control
- Control the camera with common protocols: VISCA , Pelco-D/P via RS232, RS485, IP(VISCA), Onvif or IR, remote control
included. Supports up to 255 presets with 0.1° accuracy and High Speed Pan Tilt function.
Audio embedding
- Balanced audio input with embedding into IP stream, SDI and HDMI outputs. Includes configurable audio offset.
Optional Premium features
- SRT streaming, Tally light, configurable Color Matrix. License AV-LC70-1 sold separately.
สเปค
| Weight | 2.4 kg |
|---|---|
| Dimensions | 26.5 × 25 × 23 cm |
| Color | Black |
| Audio Input | Analog Balanced |
| Video Output | 3G-SDI, H.264 IP-Stream, H.265 IP-Stream, HDMI, MJPEG IP-Stream, SRT, USB 2.0 |
| Optical Zoom | 30x |
| Control | IR remote, ONVIF, RS-232, RS-485, USB UVC, VISCA over IP |
| Power | 12V Power Adapter, PoE (802.3af) |
