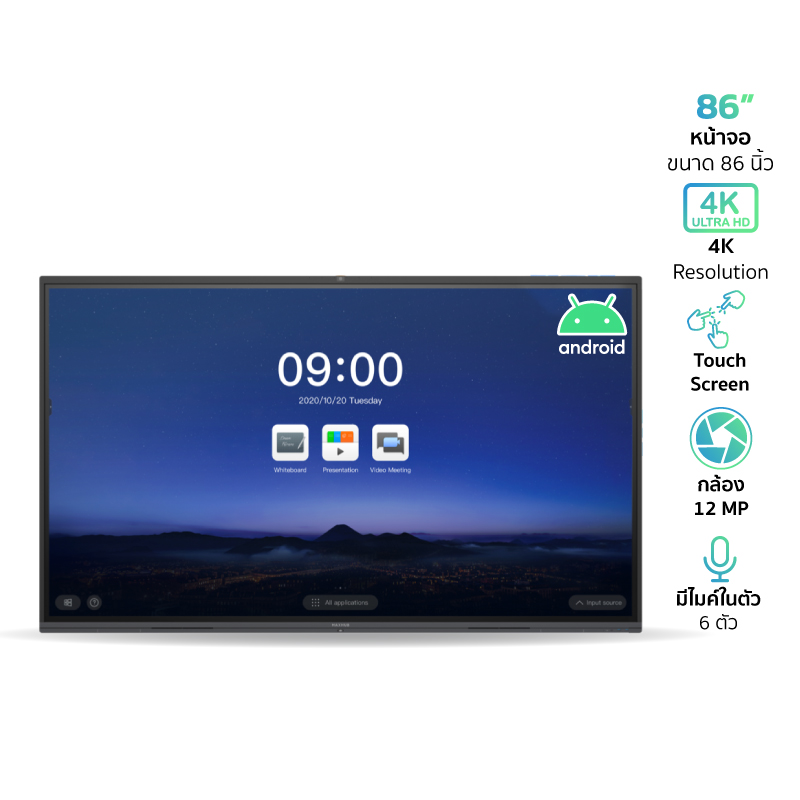

จอ 4k ทัชสกรีน รุ่น MXH-C86FA 86 นิ้ว ระบบ Android ความละเอียด 3,840 x 2,160 Pixel มีกล้อง 1 ตัว พร้อมไมค์ 6 ตัว และชุดลำโพง จาก MAXHUB
MAXHUB V5 CLASSIC SERIES
LEGEND RETOLD
ประกอบไปด้วย
MAXHUB MXH-C86FA
จอ 4k ทัชสกรีน 86 นิ้ว ความละเอียด 3,840 x 2,160 Pixel 1 เครื่อง
MAXHUB-SA08
ANDROID MODULE FOR V5 Dual-Core A72 RAM 4 GB, ROM 32 GB 1 เครื่อง
MAXHUB-SW13
ปากกา Stylus 2 ชิ้น
Seam Speakers
Creative Acoustic Structure
กล้องความละเอียด
12MP
พร้อมพอร์ต
USB Type-C
รองรับ
Android 9.0/Windows 10
เริ่มต้นการทำงานร่วมกันด้วย MAXHUB V5
The Classic Series นั้นรับแนวคิดในการออกแบบที่เรียบง่ายของ Maxhub ที่ให้การตอบสนองเหมือนคุณกำลังร่วมประชุมถึงแม้ว่าจะเป็นการประชุมทางไกล ด้วยประสิทธิภาพที่ยอดเยี่ยมทั้งเสียงและภาพ ไม่ว่าจะเป็นการประชุมปกติหรือประชุมทางไกล ก็จะถูกยกขึ้นไปอีกระดับ โดย The Classic Series นั้นเอาชนะระยะทางในการประชุมทางไกลด้วยการพัฒนาระบบเสียงและภาพให้ดียิ่งขึ้น ช่วยให้คุณรู้สึกราวกับว่ากำลังเข้าร่วมการประชุมจริงๆ แม้จะเป็นการประชุมทางไกล
Seam Speakers, Creative Acoustic Structure
The V5 Series opens a much smaller seam for the sound waves to travel through. The sound waves go directly to the participants, instead of bouncing from the floor. The power is increased by 14% with 2.1 stereo sound.
2.1 Stereo Sound
40W Powerful Speakers
12MP Camera: Enhanced A&V Capacity
Throughout the meeting session, the camera may offer unprecedented clarity, even after zooming in on the speaker. 12MP provides enough room for image compression with a higher signal-to-noise ratio. While we have a Full HD video conference, the image sensor would calculate based on the light information gathered on more than 4 pixels to form a single pixel. Therefore, the proportion of electrical noise in the circuit would be vastly reduced, increasing the clarity and saturation of the image.
Auto Zoom in on the speaker
Higher SNR
Type-C Connector, Bridging the Divide
A newly added USB Type-C port shares the screen to the MAXHUB V5 and enables reverse touch control from the touch screen. Meanwhile, it also allows access to the built-in camera and microphone array. Now you can enjoy wide viewing angle camera and 8 metres of voice pickup features on your laptop. Besides, MAXHUB supports extension mode via Type-C.
Carrying Video & Audio & Touch Signals
Accessing the Wide-angled Camera and Powerful Mic Array
High-precision IR Touch System
The IR touch technology brings you natural writing experience on Classic Series. The Classic series and Vogue series have reduced the touch height by 57%. The writing height is lowered to less than half of the previous generation, providing an even more paper-like writing experience. MAXHUB V5 also increases the writing accuracy from the previous models. Now the writing accuracy is within plus or minus 1mm, which helps make fine annotations.
≤2mm Writing Height
±1mm Writing Accuracy
Vivid Display: Presentations Come to Live
4K is now the default resolution in either operating system across MAXHUB IFPs. The updated zero bonding technology reduces parallax so that we can write as if on a piece of paper. Even when looking from the side, we may hardly discern the distance between the fingertip and the coloured display. Meanwhile, we are increasing the colour gamut by more than 20% compared to previous models, providing more vivid colours.
90% NTSC Colour Gamut
Zero Bonding
4K UHD
Voice Localisation via 6-element Mic Array
MAXHUB Voice Localisation algorithm lays the foundation for zooming in on the speaker. By analysing the phase of the sound waves and how soon they arrive at each of the microphone elements, MAXHUB could tell the direction of the voice. In the meantime, it calls the auto gain technology into play, balancing the volume from both near and afar. The noise algorithm samples the environment noise and cancels out the unwanted hustle and bustle, therefore delivering a clearer voice.
6-element Microphone Array
Up to 8 metres Voice Pickup Voice Localisation
Anti-reverberation
Noise Cancellation
Automatic Gain
Enhanced Performance
Optional Android or Windows module will enhance the performance and reliability of the operating system. The Android module provides a straighter-forward way of human-computer interaction, whereas the PC module would offer greater security, broader compatibility and more powerful performance. Either module would make MAXHUB V5 a handy tool in the office.
Optional Android 9.0/Windows 10
คุณสมบัติ
- Seam speakers refer to the two front-facing speakers at the lower bezel of MAXHUB V5 featuring narrow openings.
- MAXHUB V5 may zoom in on the speaker automatically during a meeting. The camera would locate the speaker via pattern recognition and voice localisation algorithms.
- SNR refers to the Signal-to-Noise Ratio of the imaging system. The 12MP Camera of MAXHUB V5 Classic Series achieves higher SNR during a UHD or FHD teleconference by gathering more light information and reducing the electric noise in the imaging process.
- A MAXHUB V5 Classic Series includes 2 USB Type-C ports. By connecting to a laptop, it projects the laptop’s screen onto and plays sound from the MAXHUB V5 with reverse touch control. Meanwhile, the laptop may access the built-in camera and microphone array as alternative video and audio signal input.
- Zero bonding refers to the bonding technology that reduces the air gap between the liquid crystal display (LCD) and the tempered glass down to zero.
- 90% NTSC refers to in the CIE 1931 chromaticity diagram, the area of the colour gamut of MAXHUB V5 Classic Series covers 90% area of NTSC standard range.
- Voice localisation locates the direction speaker with the microphone array and guides the camera for auto zoom in on the speaker.
- Android 9.0 runs on SA08 module whereas Windows 10 runs on MT51 module. Both modules are sold separately. You may insert either of the modules in the module slot.
สเปค
Display
- Size : 55/65/75/86 inches
- Display Ratio : 16:9
- Backlight : DLED
- Resolution : 3840（H）×2160（V）
- Viewing Angle : Horizontal 178°，Vertical 178°
Touch System
- Glass Material : Anti-glare tempered glass
- Touch Technology : Infrared ray
- Touch Point : 20 points
- Writing Tools : Finger + opaque object (≥2mm)
- Touch Accuracy : ±1mm
Camera
- Location : In the middle of the Upper Bezel
- Pixels : 12 mega pixels
- Automatic Control : Automatic white balance, adaptive ambient brightness
- Lens Distortion : ≤1%
- Smart Switch : Support
- Face Recognition : Support
Microphone Array
- Directivity : Front
- Pickup Distance : 8m
- Quantity : 6
- Sampling Frequency : 16KHz
- Sampling Rate : 16bit
- Automatic Control : Automatic gain, automatic noise reduction
- Echo Cancellation : Support
- Auditory Localization : Support
Speaker
- Frequency-domain : 80Hz~20KHz
- Speaker Quantity : 3
- Stereo : Support
Operating System
- Operating System : Android 9.0+win10
Enviroment Requirement
- Power : 100-240V~ 50 / 60Hz
- Altitude : Below 5000 Meters
- Standby Power Consumption : ≤0.5W
