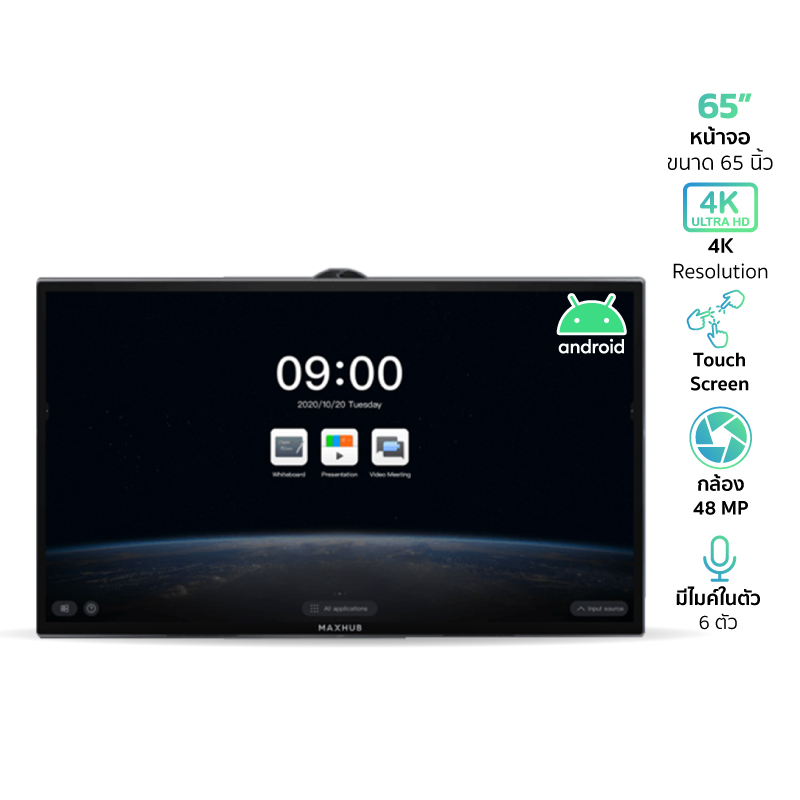

จอ 4k ทัชสกรีน รุ่น MXH-T65FA 65 นิ้ว ระบบ Android ความละเอียด 3,840 x 2,160 Pixel มีกล้อง 1 ตัว พร้อมไมค์ 6 ตัว และชุดลำโพง จาก MAXHUB
MAXHUB V5 TRANSCEND SERIES
OVER THE EDGE
ประกอบไปด้วย
MAXHUB MXH-T65FA
จอ 4k ทัชสกรีน 65 นิ้ว ความละเอียด 3,840 x 2,160 Pixel 1 เครื่อง
MAXHUB-SA08
ANDROID MODULE FOR V5 Dual-Core A72 RAM 4 GB, ROM 32 GB 1 เครื่อง
MAXHUB-SW13
ปากกา Stylus 2 ชิ้น
MAXHUB-PB02
Pen Holder กล่องคอนเทนเนอร์สำหรับ EMR Pen และ Dongle 1 ชิ้น
MAXHUB MXH-WT01
Wireless Screen Sharing Device อุปกรณ์แชร์ภาพหน้าจอ แบบไร้สาย 4K 3 ชิ้น
Privacy Safeguard: Flip-over Camera in 48MP
MAXHUB Transcend Series เลือกใช้กล้องความละเอียด 48 MP ที่สามารถพลิกไปมาได้ เพื่อป้องกันความเป็นส่วนตัว หรือความลับขององค์กร โดยกล้องจะพลิกไปด้านหน้าอัตโนมัติเมื่อเริ่มแอปพลิเคชั่นการประชุมทางไกล และเมื่อจบการประชุมกล้องจะพลิกกลับอัตโนมัติ เพื่อปิดการใช้งานตัวเอง และแม้จะทำการซูมเข้าไปที่ผู้เข้าประชุมคนใด แต่ภาพที่ได้ก็ยังคงชัดเจนและคมชัด
Auto Zoom in on the speaker
Higher SNR
Flips to the Front Only When Needed
Voice Localisation via 6-element Mic Array
MAXHUB Voice Localisation algorithm lays the foundation for zooming in on the speaker. By analysing the phase of the sound waves and how soon they arrive at each of the microphone elements, MAXHUB could tell the direction of the voice. In the meantime, it calls the auto gain technology into play, balancing the volume from both near and afar. The noise algorithm samples the environment noise and cancels out the unwanted hustle and bustle, therefore delivering a clearer voice.
6-element Microphone Array
Up to 8 Meteres Voic Pickup Voice
Localisation
Automatic Gain
Noise Cancellation
Anti-reverberation
Ultra-thin, Complete Flat Enclosure
Owing to the ELED backlight structure and PCAP touch technology, MAXHUB V5 Transcend Series boasts a thickness down to 18mm. There is no touch frame, thus the screen is completely flat. Once installed in a room, it is no longer a display, it is a masterpiece.
ELED
Down to 18mm
PCAP Touch Technology
Seam Speakers , Creative Acoustic Structure
The V5 Series opens a much smaller seam for the sound waves to travel through. The sound waves go directly to the participants, instead of bouncing from the floor. The power is increased by 14% with 2.1 stereo sound.
2.1 Stereo Sound
40W Powerful Speakers
Enhanced Performance
Optional Android or Windows module will enhance the performance and reliability of the operating system. The Android module provides a straighter-forward way of human-computer interaction, whereas the PC module would offer greater security, broader compatibility and more powerful performance. Either module would make MAXHUB V5 a handy tool in the office.
Optional Android 9.0/Windows 10
Type-C Connector, Bridging the Divide
A newly added USB Type-C port shares the screen to the MAXHUB V5 and enables reverse touch control from the touch screen. Meanwhile, it also allows access to the built-in camera and microphone array. Now you can enjoy wide viewing angle camera and 8 metres of voice pickup features on your laptop. Besides, MAXHUB supports extension mode via Type-C.
Carrying Video & Audio & Touch Signals
Accessing the Wide-angled Camera and Powerful Mic Array
คุณสมบัติ
- Flip-over Camera refers to the built-in camera that rotates to the front once a teleconference or camera application needs to access the camera. This camera is available on MAXHUB V5 Transcend Series only.
- MAXHUB V5 may zoom in on the speaker automatically during a meeting. The camera would locate the speaker via pattern recognition and voice localisation algorithms.
- SNR refers to the Signal-to-Noise Ratio of the imaging system. The 48MP Camera of MAXHUB V5 Transcend Series achieves higher SNR during a UHD or FHD teleconference by gathering more light information and reducing the electric noise in the imaging process.
- Voice localisation locates the direction speaker with the microphone array and guides the camera for auto zoom in on the speaker.
- 18mm refers to the thinnest part of MAXHUB V5 Transcend Series.
สเปค
Display
- Size : 65/86 inches
- Display Ratio : 16:9
- Backlight : ELED
- Resolution : 3840（H）×2160（V）
- Viewing Angle : Horizontal 178°，Vertical 178°
Touch System
- Glass Material : Anti-glare tempered glass
- Touch Technology : Infrared ray
- Touch Point : 20 points
- Writing Tools : Finger + opaque object (≥2mm)
- Touch Accuracy : ±1mm
Camera
- Location : In the middle of the Upper Bezel
- Pixels : 48MP
- Automatic Control : Automatic white balance, adaptive ambient brightness
- Lens Distortion : ≤1%
- Smart Switch : Support
- Face Recognition : Support
Microphone Array
- Directivity : Front
- Pickup Distance : 8m
- Quantity : 6
- Sampling Frequency : 16KHz
- Sampling Rate : 16bit
- Automatic Control : Automatic gain, automatic noise reduction
- Echo Cancellation : Support
- Auditory Localization : Support
Speaker
- Frequency-domain : 80Hz~20KHz
- Speaker Quantity : 3
- Stereo : Support
Operating System
- Operating System : Android 9.0+win10
Environment Requirement
- Power : 100-240V~ 50 / 60Hz
- Altitude : Below 5000 Meters
- Standby Power Consumption : ≤0.5W
