YAMAHA YVC-1000 ไมค์ประชุม ทางไกล สำหรับ VDO เว็บคอนเฟอร์เรนซ์ YAMAHA YVC-1000 ไมโครโฟน สำหรับประชุมทางไกล แบบ USB (Conference Speakerphone) จากยี่ห้อ YAMAHA
- ชุดไมโครโฟน พร้อมลำโพง สำหรับระบบประชุม และการเรียนการสอนทางไกล (40 คน)
- ให้เสียงที่ชัดเจน ลดเสียงสะท้อน เสียงก้อง ภายในห้องประชุม และปรับสมดุลเสียงโดยอัตโนมัติ
- ระบบควบคุมเสียง และตรวจจับเสียงพูดโดยอัตโนมัติ
- สามารถเพิ่มไมค์ YVC-MIC1000EX ได้สูงสุด 5 ตัว
- รองรับ Windows และ Mac OS X
YVC 1000/1000MS สำหรับห้องประชุมขนาดใหญ่
10 – 40 ท่าน
ความแตกต่าง ระหว่าง YVC 1000 กับ YVC 1000MS
YVC 1000/1000MS ระยะรับเสียง 3 เมตร ต่อไมโครโฟน 1 ตัว

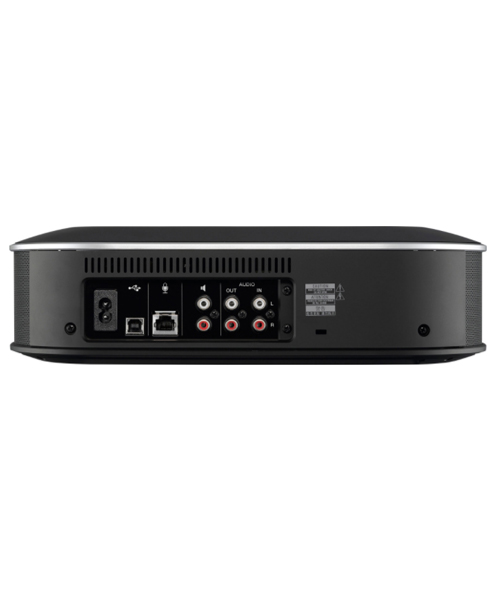

YVC 1000/1000MS – ด้านหลัง
การต่อพ่วงและการวางไมโครโฟน
YAMAHA YVC-1000 USB Conference Speakerphone
ไมค์ประชุม ระบบทางไกล
Unified communications microphone and speaker system
YVC-1000
- Multiple connection options via Bluetooth® and USB
- Ability to daisy chain up to 5 microphones and support 2 external speakers
- High-quality audio technology with Human Voice Activity Detection (HVAD) to minimize background noise during calls
- One-button autotuning analyzes the room environment and automatically adjusts acoustic settings to the optimal level
YVC-1000MS (สั่งซื้อ คลิก)
- Certified for Skype for Business
- Hang-up button on device
- Multiple connection options via Bluetooth® and USB
- Ability to daisy chain up to 5 microphones and support 2 external speakers
- High-quality audio technology with Human Voice Activity Detection (HVAD) to minimize background noise during calls
- Autotuning function analyzes the room environment and automatically adjusts acoustic settings to the optimal level
The YVC-1000 features separate microphone and speaker units that smoothly integrate audio and video for natural, comfortable remote communication. The high performance, full range speaker unit can be placed close to the display so that audio and video from the remote location blend naturally, while adaptive echo canceller and other Yamaha sound processing technologies facilitate stress-free conversation.
Images of sound pickup range (within 3 m (9.8 ft), to a maximum recommended range of 5 m (16.4 ft). *per microphone)
- The sound pickup range may differ depending on the operating environment and conditions.
- Sound quality improves when the person speaking is closer to the microphone.
- For the “Microphone x 3” and “Microphone x 5” configurations shown above, audio quality is superior in the “Microphone x 5” configuration as the microphones are placed closer to the participants.
Flexible connectivity
Fast, easy connection to PCs, smartphones, tablets,and dedicated conferencing systems
Connect to the YVC-1000 via USB, Bluetooth*1, or the audio terminals*2 of a conferencing system for high quality audio in your conferences and meetings. This range of connection options allows you to quickly adapt to a variety of communications environments, as well as situations where conferencing might otherwise be difficult due to the lack of a landline, or internet connectivity issues.
Smooth Bluetooth connection using Near Field Communications (NFC)*3 technology
Connect simply and easily by placing an NFC-compatible smartphone or tablet over the NFC logo on the top of the control unit while the Bluetooth button is blinking*4.
Excellent scalability
Connect additional speakers and microphones for larger meetings
In its standard configuration*1 the YVC-1000 is ideal for small and medium-size meetings. For conferencing on a larger scale, external speakers*2 and up to four additional microphones can be added to cover a wider area and accommodate more conference participants.
User-friendly design
Optimize acoustic settings with a single touch
The YVC-1000 automatically optimizes its acoustic settings by learning about the acoustic environment of a room as it operates. When time requirements mean that speed is an issue, simply pressing the tuning fork button activates the automatic audio tuning function, immediately optimizing the acoustic settings for your current environment*1. If any acoustic problems are detected, the tuning fork button lights up orange to warn the user. Details on acoustic problems can be accessed through the audio guidance function*2, which also provides announcements for other operations, such as when Bluetooth connections have been established.
Convenient functions
Communicate with various sources simultaneously
The audio mixing function mixes multiple voice input sources connected to each interface (USB, Bluetooth, and audio input/output) allowing simultaneous communication over different lines. For example, while connected to a web conference via USB, you can also include more participants via smartphone using a Bluetooth connection by using the audio mixing function to combine the audio sources.
Connect to an external microphone for more flexibility during remote class sessions or seminars
Equipped with an external microphone input, the YVC-1000 is ideal for applications such as remote classes or seminars where a handheld microphone may be preferable. Simply connect an external microphone to output your voice through both the base unit speaker and speakers at remote destinations.
A high quality conferencing experience
Innovative sound processing technologies combine to create a productive communications environment
YAMAHA YVC-1000 incorporates many high-quality sound technologies that Yamaha has developed over the years, including a unique Human Voice Activity Detection (HVAD) capability used to detect human voices. “HVAD” is an important element of several different sound processing features that require fast and efficient sorting of noise and human voices in order to make speaking and listening a more relaxing, stress-free experience during remote conferencing.
General YAMAHA YVC-1000
| Interface | Control Unit: USB 2.0 High Speed, Bluetooth, NFC (Near Field Communication) Audio Input terminal (stereo RCA pin), Audio Output terminal (stereo RCA pin), External speaker terminal (RCA pin) x 2, Power terminal, Microphone terminal Microphone: Input and output terminals |
| Power consumption (max) | 20 W (one connected microphone), 35 W (five microphones connected) |
| Radio interference standard | FCC (Part 15B) Class A, ICES-003 |
| Power source | 120 V (60 Hz) |
| Operating environment | Temperature: 0 to 40°C (32 to 104°F) Humidity: 20 to 85% (no condensation) |
| Storage environment | Temperature: -20 to +50°C (-4 to 122°F) Humidity: 10 to 90% (no condensation) |
| Dimensions | Control Unit (W x H x D): 332 x 95 x 162 mm (13.1 x 3.74 x 6.38 in) Microphone (W x H x D): 136 x 36 x 136 mm (5.35 x 1.42 x 5.35 in) |
| Weight | Control Unit: 1.8 kg (4.0 lbs), Microphone: 0.4 kg (0.9 lbs) |
| Supported OS | OS: 32-bit or 64-bit Windows 10, 32-bit or 64-bit Windows 8.1, 32-bit or 64-bit Windows 8, 32-bit or 64-bit Windows 7, macOS 10.12, Mac OS X 10.11, Mac OS X 10.10, Mac OS X 10.9, Mac OS X 10.8 USB: USB 2.0 or later |
| Bluetooth | Bluetooth specification version: 2.1 + EDR Supported profile: HFP (1.6), A2DP Supported Codec: CVSD, mSBC, SBC Wireless output: Class 2 Maximum communication distance: 10 m (32.8 ft) |
| NFC | Compatible devices: NFC-compatible Android devices |
| Voice guidance | English, Japanese, Chinese, Korean, French, Spanish, German |
| Accessories | Power cable (3 m (9.8 ft)), USB cable (5 m (16.4 ft)), microphone cable (5 m (16.4 ft)), Quick Start Guide |
| Others | Firmware update (transfer from PC through USB) |
Audio
| Microphone unit | Unidirectional x 3 |
| Speaker unit | Full-range x 1 |
| Maximum volume | 95 dB (0.5 m (1.6 ft)) |
| Frequency bandwidth | For sound pickup: 100 to 20,000 Hz For playback: 100 to 20,000 Hz |
| Signal processing | Adaptive echo canceller, Noise reduction, Automatic tracking, Automatic gain control, Automatic room EQ, Dereverberation, Automatic audio tuning |
Input specifications
| Terminal | MODE | SIGNAL LEVEL | Standard Level | Maximum Input Level |
| AUDIO IN | CONFERENCE SYSTEM | – | -22.4dBV | 1.6dBV |
| PA MICROPHONE | LINE | -22.4dBV | 1.6dBV | |
| MICROPHONE | -62.4dBV | -38.4dBV |
※YVC-1000 don’t have phantom power supply function.
Output specifications
| Terminal | Standard Level | Maximum Output Level |
| AUDIO OUT EXTERNAL SPEAKER | -23.5dBV | 0.5dBV |
| -23.5dBV | 0.5dBV |
